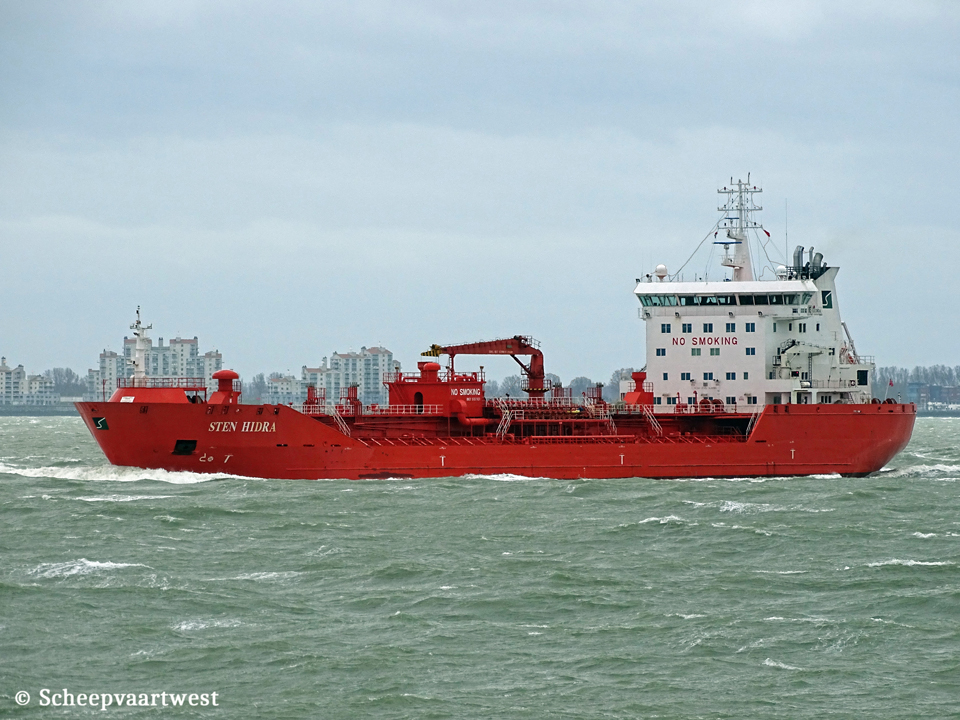

Westerschelde 16 March 2019 |
 |
 |
 |
 |
 |
||||

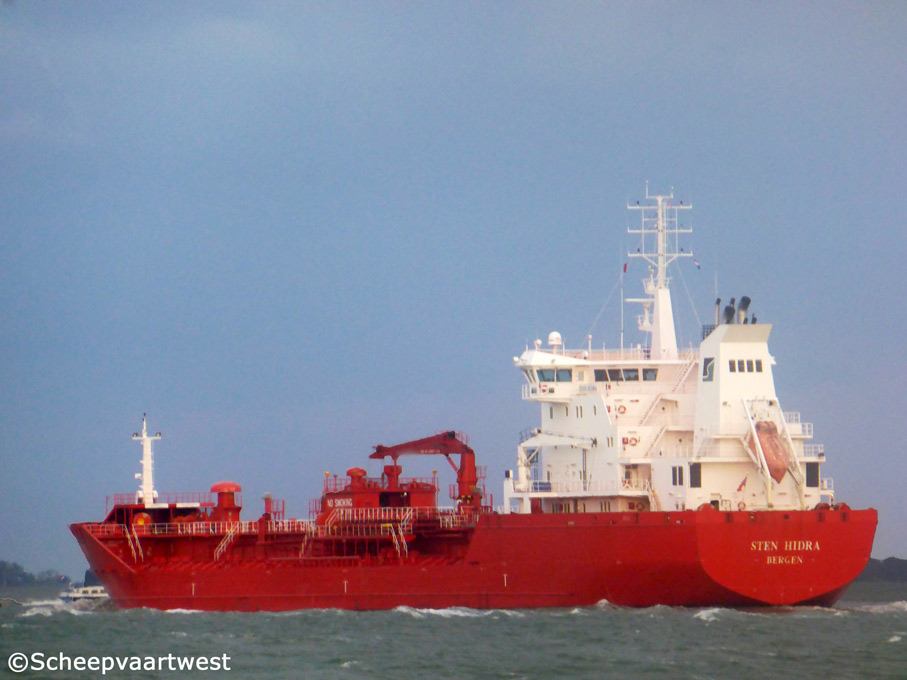

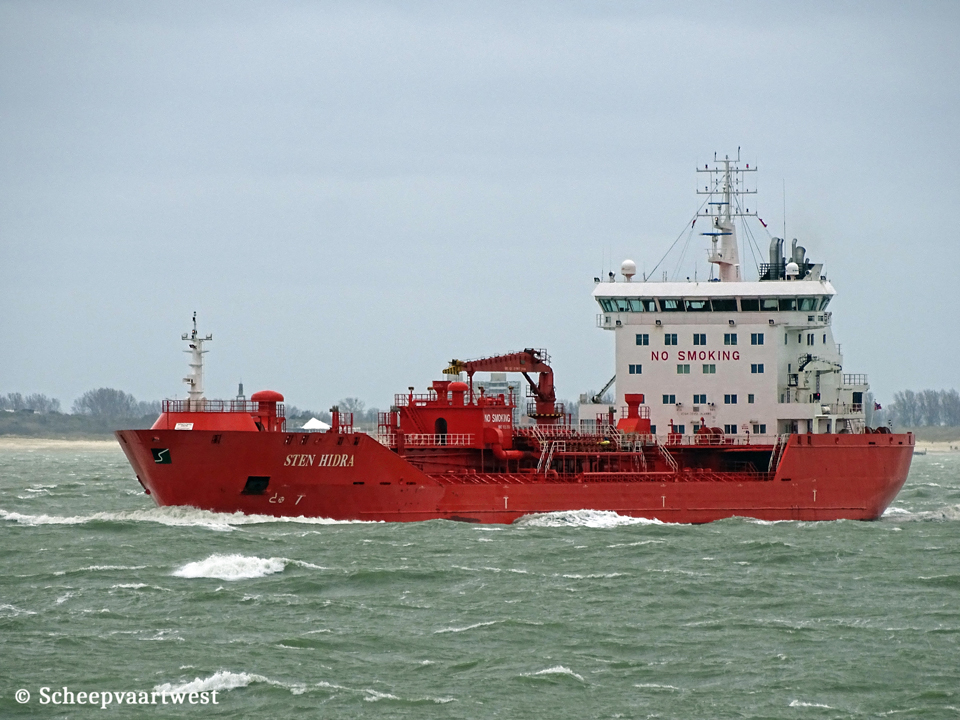

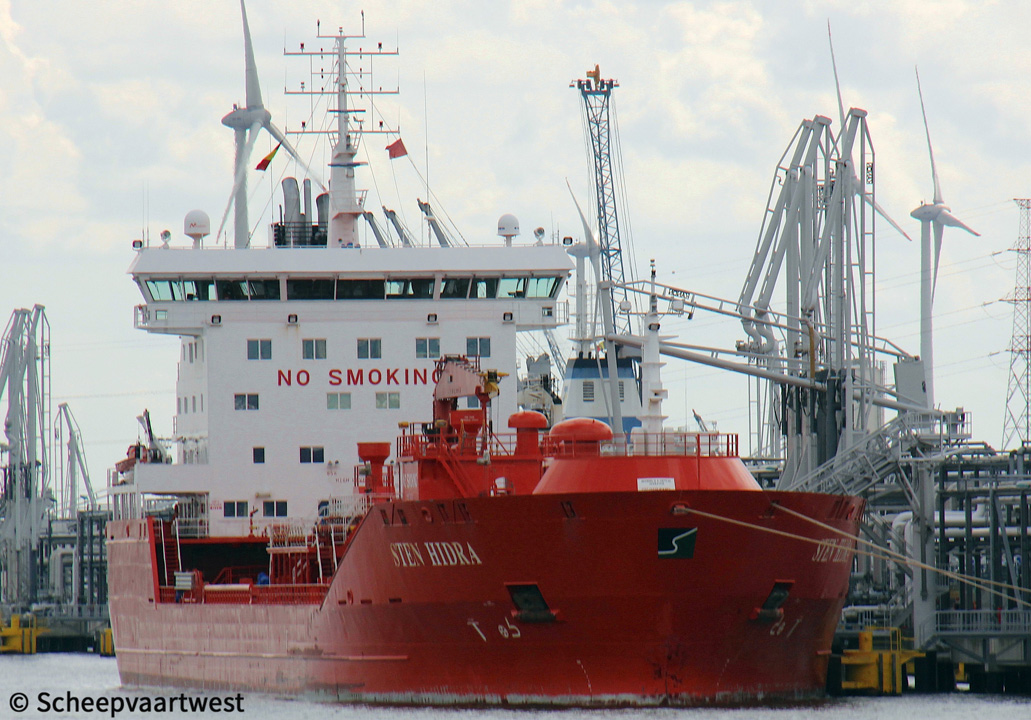

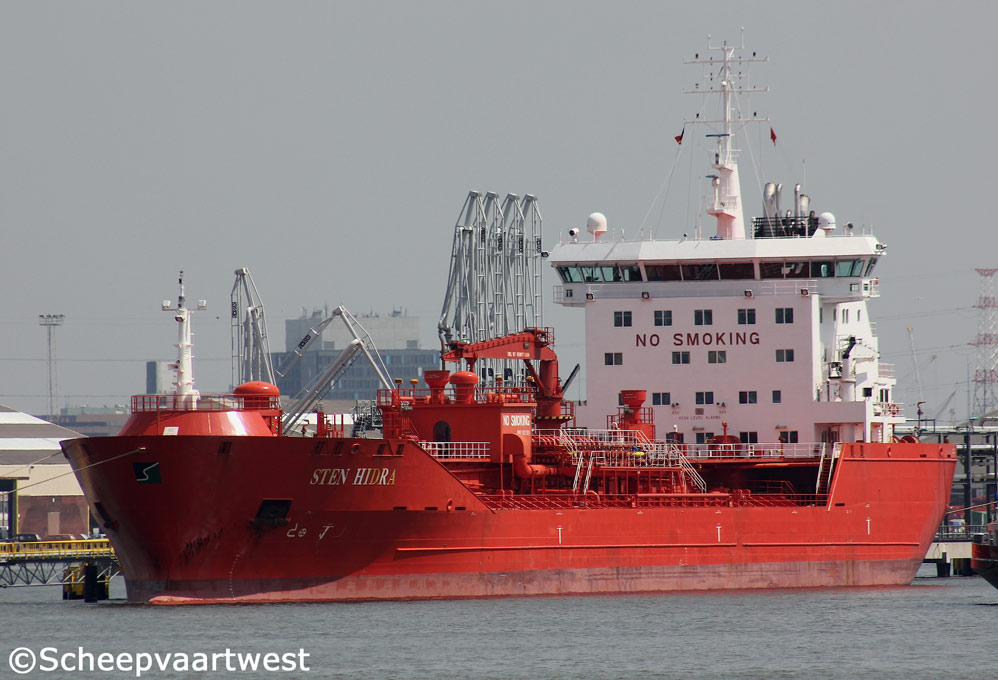

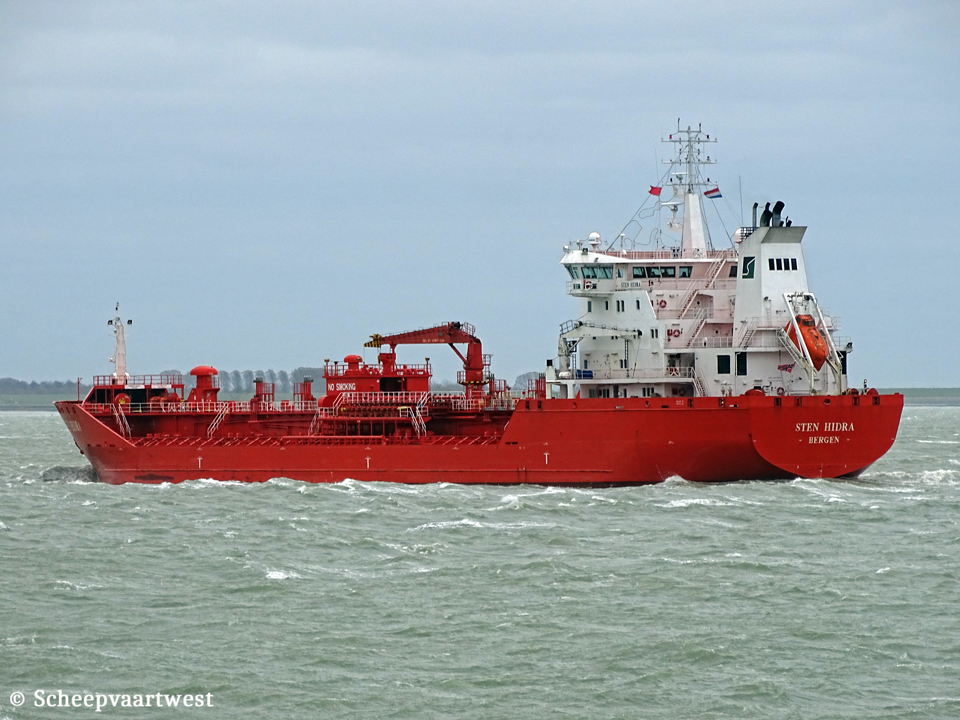

| Westerschelde 16/03/19 | Westerschelde 16/03/19 | Westerschelde 18/08/14 | Antwerpen 22/05/15 | Antwerpen 26/04/19 | ||||
|
Name |
STEN HIDRA |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9358931 |
|
Call sign |
LAJX6 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GT |
11.935 t |
|
DWT |
Summer: 16.670 t |
|
NT |
5.141 t |
|
Length |
144,05 m overall 133,44 m between perpendiculars |
|
Breadth |
23,18 m extreme |
|
Draught |
12,40 m moulded |
|
Keel to top of mast |
44,50 m |
|
Freeboard |
3.511 mm |
|
Depth |
12,40 m |
|
Speed |
Max: 14,8 knots Service: 14,0 knots |
|
Built |
2007 |
|
Keel laid |
18/05/2006 |
|
Launch date |
25/09/2006 |
|
Date of completion |
18/05/2007 |
|
Builder |
Jiangnan Shipyard (Group) Co., Ltd. Shanghai China |
|
Yard number |
H2361 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
Transverse: 8 Longitudinal: 1 |
|
Continous decks |
1 |
|
Main engine |
1x Wärtsilä 6L46C - 4 stroke single acting 6 cylinder 460 x 580 mm combustion engine 6.300 kW / 8.595 hpat 514 rpm Builder: Wärtsilä Finland Oy |
|
Propellers |
1x Wärtsilä controllable pitch propeller - 4 blades |
|
Boilers |
1x Auxiliary boiler, composite AQ-16 1x Auxiliary boiler, oil/gas fired AQ-9 Builder: Aalborg Industries A/S |
|
Shaft generator |
1x AVK SDCT65 - 1.500 kVA |
|
Generators |
2x Wärtsilä 4L20 - 4 stroke 4 cylinder 200 x 208 mm diesel engines each Mcr 800 kW at 900 rpm connected with generators each 750 kW at 900 rpm 1x Wärtsilä 6L20- 4 stroke 6 cylinder 200 x 208 mm diesel engine Mcr 1.200 kW at 900 rpm connected with generator each 1.1500 kW Builder: Wärtsilä Finland Oy |
|
Emergency generator |
1x Diesel generatorset 220 kW |
|
Bow thruster |
1x Brunvoll tunnel thruste 800 kW / 1.088 hp, forward |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity 98% |
Liquid: 19.172 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
681 m³ |
|
Number of segregations |
8 |
|
Pumps |
12x Framo cargo pumps each 300 m³/h 2x Framo cargo pumps each 150 m³/h 1x Portable pump |
|
Pumping capacity |
2.100 m³/h |
|
Heating capacity |
70°C |
|
Manifolds |
Bow to centre of manifold: 71,80 m |
|
Tank capacities |
Ballast: 8.179 m³ Fuel oil: 580 m³ Diesel oil: 75 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 58 mm |
|
Lifting equipment |
1x Hose crane - SWL 5,0 t |
|
Crew size |
12 |
|
Manager |
Rederiet Stenersen A/S Edvard Griegs Vei 1 5059 Bergen Norway |
|
Registered owner |
Stenoil KS Edvard Griegs Vei 1 5059 Bergen Norway |
|
Previous owners |
2007 - 2007 Stentank AS |
|
Latest data adjustment |
25 December 2023 |
