MTM Hong Kong 01

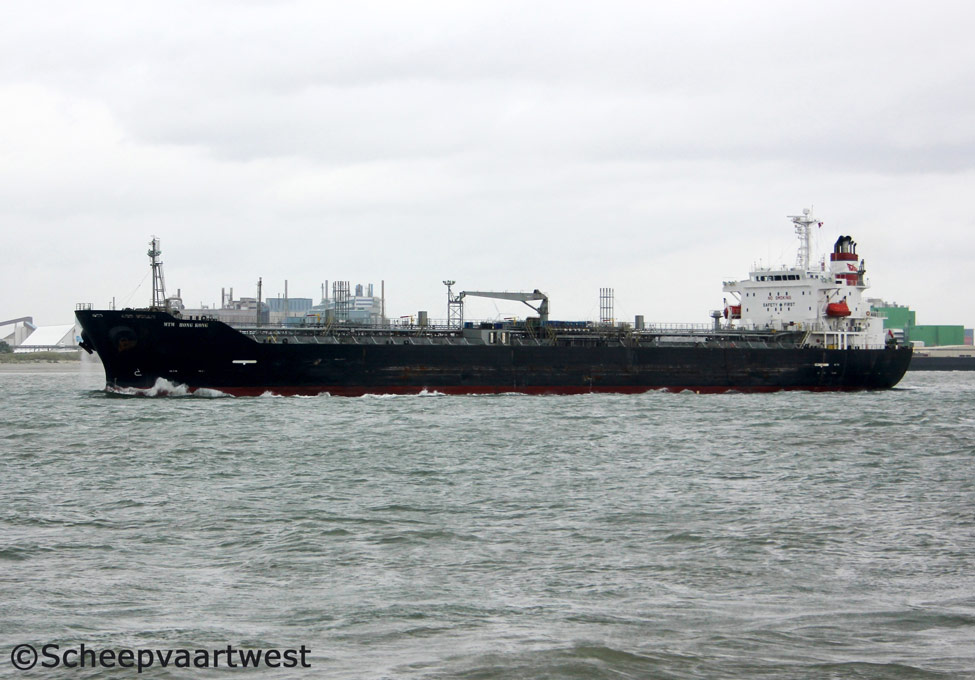

Westerschelde 17 August 2014



Name

MTM HONG KONG

Previous names

2000 - 10.2010 Chemroad luna

Type

Oil tanker / Chemical tanker

IMO-number

9228320

Call sign

VRHM5

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

20.043 t

Suez: 21.119,62 t

DWT

Summer: 34.465,20 t

NT

7.520 t

Suez: 19.123,72 t

Length

174,38 m overall

Breadth

27,70 m

Draught

Summer: 11,02 m

Moulded L x B x D

167,00 x 27,70 x 16,00 m

Registered L x B x D

167,62 x 27,70 x 16,00 m

Air draft

39,93 m light ship

36,19 m normal ballast

32,07m at loaded summer DWT

Keel to masthead

42,10 m

Freeboard

Summer: 5.021 mm

Depth

16,00 m moulded

Speed

16,6 knots

Built

2000

Keel laid

09.03.2000

Launch date

13.06.2000

Date of completion

28.11.2000

Builder

Shin Kurushima Onishi Shipyard Co. Ltd.
Imabari
Japan

Yard number

5062

Hull material

Steel

Hull type

Double hull

Main engine

1x Mitsubishi/Kobe 6UEC52LS - 2 stroke single acting 6 cylinder 520 x 1.850 mm diesel engine - 7.943 kW / 10.800 hp at 120,0 rpm

Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works

Propeller shaft

1x Oil Lubrication shaft without monitoring device

Diameter: 460 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 16,36 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

4x Generators - 2.340 kVA

Cargo tank capacity 98%

37.795 m³ excluding slop tanks

Slop tank capacity 98%

1.544,57 m³

Pumps

12x Cargo pumps - 250 m³/h

2x Cargo pumps - 100 m³/h

2w Ballast pumps centrifugal - 650 m³/h

Manifolds

Bow to centre manifold: 87,60 m

Stern to centre manifold: 86,78 m

Distance bridge front to centre of manifold: 57,82 m

Distance between cargo manifold centres: 1.000 mm

Distance ships rail to manifold: 3.450 mm

Distance manifold to ships side: 3.700 mm

Top of rail to centre of manifold: 1.755 mm

Distance main deck to centre of manifold: 2.884 mm

Tank capacities

Fuel oil: 1.782,98 m³

Gasoil: 178,44 m³

Fresh water: 342 m³

Water ballast: 14.989 m³

Lifting equipment

1x Crane - SWL 10,0 t outboard of the ship’s side 3,15 m

Manager

M.T.M. Ship Management Pte. Ltd.
c/o Rm.809, Tsim Sha Tsui Centre,66

Mody Road, Kowloon
Hong Kong

Technical operator

M.T.M. Ship Management Pte Ltd.

78 Shenton Way #13-01

Singapore City
Republic of Singapore

Commercial operator

M.T. Maritime Management (USA) LLC

2960 Post Road, Southport, CT

U.S.A.

Registered owner

MTM Hong Kong LLC

Latest data adjustment

06 September 2014
