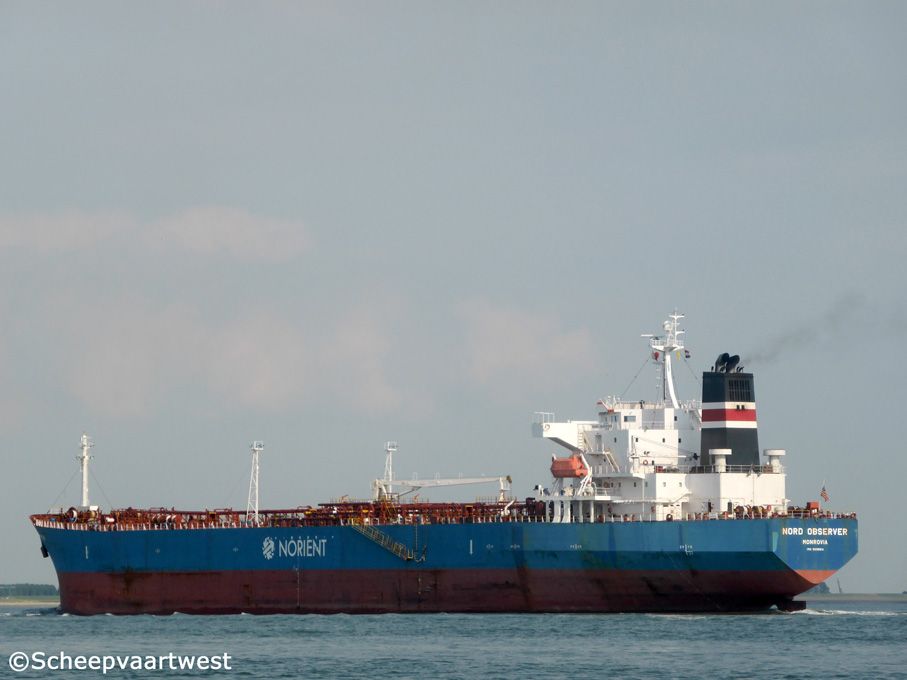

Nord Observer 01

Westerschelde 05 August 2014

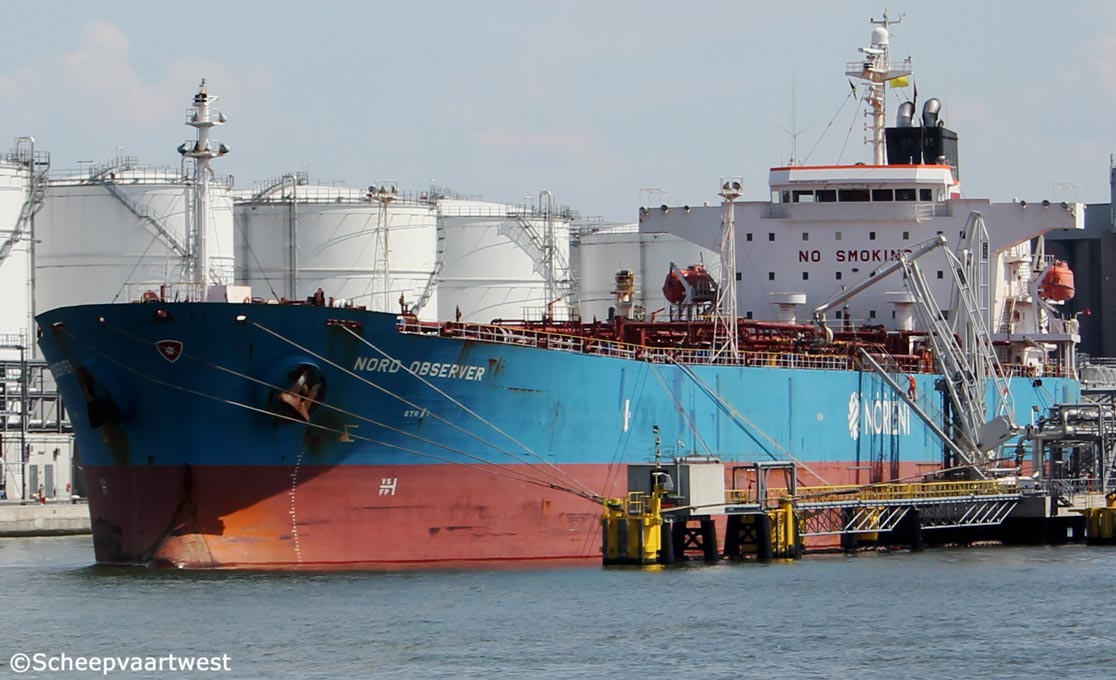

Nord Observer 02
Antwerpen 24/07/14


Name

NORD OBSERVER

Type

Oil product tanker

IMO-number

9338814

Call sign

A8LL6

Flag

Liberia

Port of registry

Monrovia

GT

26.900 t

Suez: 28.049,83 t

DWT

Summer: 47,344 t

NT

13.660 t

Suez: 24.716,96 t

Panama: 22.360 t

Length

182,50 m overall

Breadth

32,20 m moulded

Draught

Summer: 12,62 m

Moulded L x B x D

172,00 x 32,20 x 18,10 m

Registered L x B x D

172,60 x 32,20 x 18,10 m

Air draft

43,19 m light ship

38,56 m normal ballast

32,90 m at loaded summer deadweight

Keel to masthead

45,52 m

Freeboard

Summer: 5.513 mm

Winter: 5.776 mm

Depth

18,10 m moulded

Speed

Max.: 16,0 knots

Service: 15,3 knots

Built

2007

Keel laid

22.12.2004

Launch date

19.01.2007

Date of completion

22.05.2007

Builder

Onomichi Dockyard Co. Ltd.
Onomichi
Japan

Yard number

523

Hull material

Steel

Main engine

1x MAN B&W 6S50MC - 2 stroke single acting 6 cylinder 500 x 1.910 mm diesel engine - 8.580 kW / 11.665 hp at 127,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 520 mm

Propellers

1x Fixed pitch propeller- aft at 127,0 rpm

Boilers

1x Auxiliary vertical boiler - 1,77 Mpa

Evaporation: 26,67 t/h

Manufacturer: Aalborg(Qingdao) Boiler Company Ltd.

Generators

4x Generators - 1.950 kVA

Cargo tank capacity 98%

Seg#1: 16.331,4 m³ (1P/S, 5P/S, SLOP STBD)
Seg#2: 9.012,2 m³ (4 P/S)
Seg#3: 17.210,5 m³ (2P/S , 6 P/S)
Seg#4: 9.921,6 m³ (3P/S , Slop Port)

Total: 52.475,7 m³ excluding slop tanks

Slop tank capacity 98%

1.937,8 m³

Pumps

Cargo:

4x Centrifugal - 1.000 m³/h each

Stripping:

1x Reciprocating - 200 m³/h

Ballast:

2x Centrifugal - 800 m³/h each

Manifolds

Bow to centre manifold: 92,92 m

Stern to Centre manifold: 89,58 m

Distance bridge front to centre of manifold: 53,20 m

Distance between cargo manifold centres: 2.000 mm

Distance ships rail to manifold: 4.372 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 700 mm

Distance main deck to centre of manifold: 2.050 mm

Tank capacities

Fuel oil: 1.644,5 m³

Gas oil: 119,9 m³

fresh water: 316 m³

Water ballast: 18.417 m³

Lifting equipment

1x Crane - SWL 10,0 t

Technical operator

Executive Ship Management Pte Ltd.
8 Shenton Way
Republic of Singapore

Commercial operator

Norient Product Pool ApS
52, Strandvejen
DK-2900 Hellerup
Denmark

Disponent owner

Dampskibsselskabet Norden A/S
Strandvejen 52
2900-Hellerup
Denmark

Registered owner

M & N Shipping Corporation
53rd Street, Urbanizacion, Swiss tower, 16th floor,

Panama City
Republic of Panama

Latest data adjustment

11 September 2014
