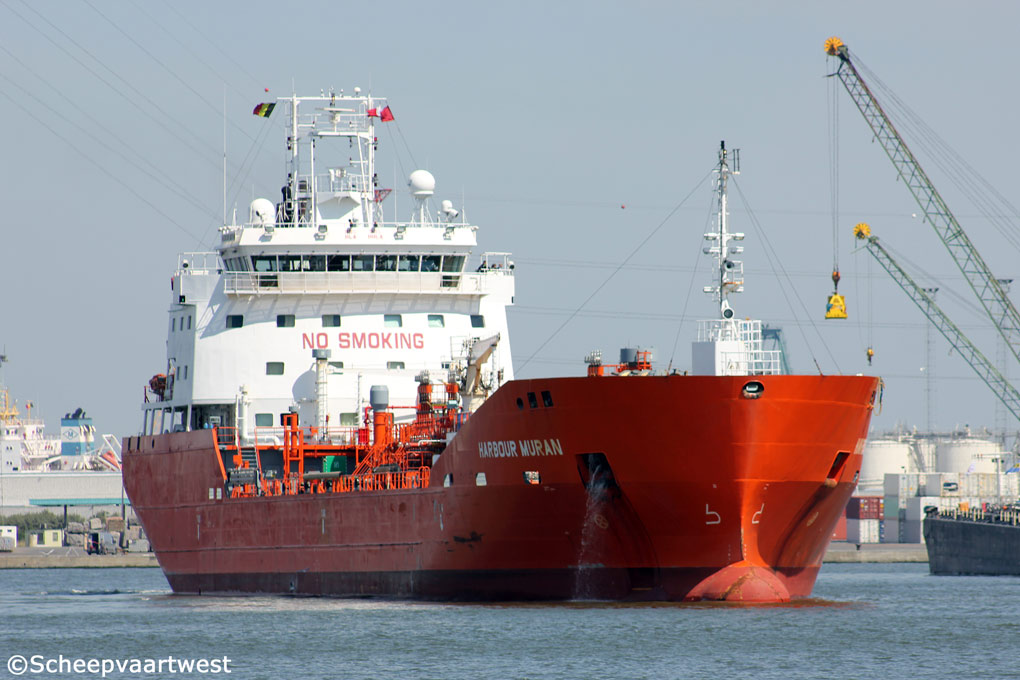

Harbour Muran 02

Antwerpen 16 May 2014

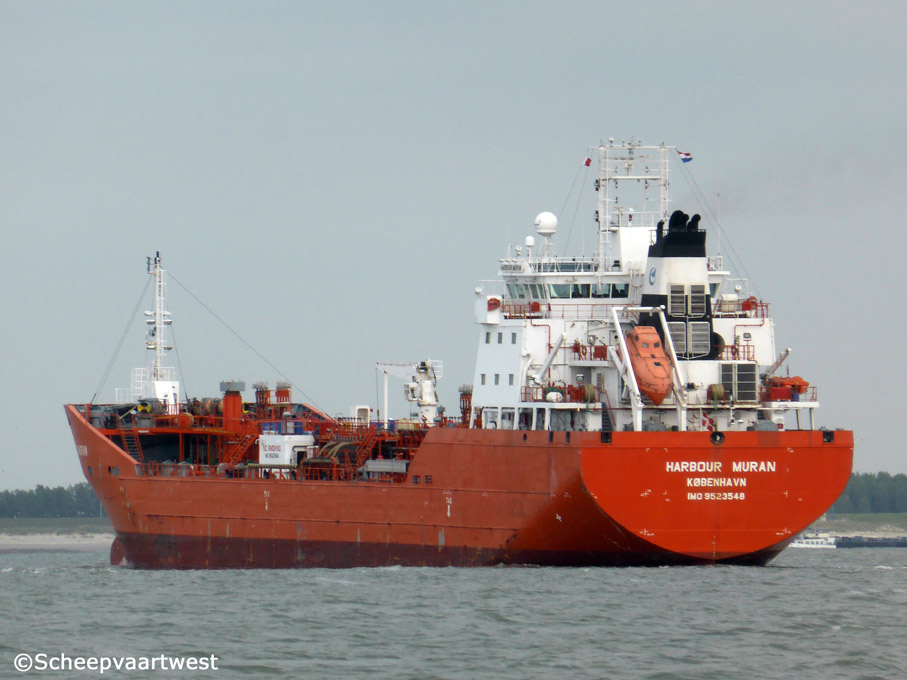

Harbour Muran 03
Westerschelde 28/05/15


Name

HARBOUR MURAN

Previous name

Zhong Ding 3

Type

Chemical tanker / Oil tanker

IMO-number

9523548

Call sign

OUZF2

Flag

Denmark

Port of registry

København

GT

6.768 t

DWT

8.363 t

NT

2.122 t

Length

118,95 m overall

144,61 m registered

Breadth

18,50 m registered

Draught

7,50 m

Depth

11,20 m moulded

Speed

14,5 knots

Built

2012

Keel laid

12.02.2010

Launch date

16.05.2011

Date of completion

30.05.2012

Builder

AVIC Dingheng Shipbuilding Co., Ltd.
Ship Industry District 1 Zhonghang Road Jiangdu Economic Development
Jiangdu, Jiangsu
People's Republic of China

Yard number

DH5201-5

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Double hull

Double bottom

Continuous decks

1

Main engine

1x MAN 9L32/44CR - 4 stroke 9 cylinder 320 x 440 mm diesel engine - 5.040 kW / 6.852 bhp at 750 rpm

Year of manufacture: 2010

Manufacturer: MAN Diesel & Turbo SE
Stadtbachstr. 1
86153 Augsburg
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 142 rpm

Boilers

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 133,3 m²

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 123,0 m²

Year of manufacture: 2010

Manufacturer: Göteborgs Energy Systems AB
Angpannegatan 15A
417 05 Göteborg
Sweden

Electric installations

3x Plants each 440 V - 737 kVA

1x Plant 440 V - 1.500 kVA

1x Plant 440 V - 135 kVA

1x Plant 12 V - 12 Ah

1x Plant 12 V - 200 Ah

1x Plant 12 V - 200 Ah

3x Plants each 12 V - 600 Ah

Shaft generator

1x 1.500 kVA

Generators

3x Main diesel generatorsets each 737 kVA

Emergency generator

1x Diesel generatorset 135 kVA

Batteries

3x Batteries for automation each 600 Ah

1x Battery for UPS radio 200 Ah

1x Battery for start emergency engine 200 Ah

1x Battery for diesel control 12 Ah

Compressed air receivers

2x Receivers each 1.000 litres - 30,0 bar

1x Receiver 1.500 litres - 11,0 bar

Bow thruster

1x Transverse thruster 500 kW, forward

Cargo liquid capacity 98%

9.354,10 m³

Segregations

16

Anchor equipment

3x Anchors weight each 3.780 kg

Chain length: 522,50 m

Crew size

18

Manager

Nordic Tankers Marine A/S
Harbour House Sundkrogsgade 21
2100 Copenhagen O
Kingdom of Denmark

Operator

AVIC International Maritime Holdings Limited
Beijing
P.R. China

Registered owner

ANVIC Shipping Developement Company Ltd.
Unit A1, 15/F United Centre No. 95 Queensway
Hong Kong
Hong Kong Special Administration Region of P.R. China

Renamed

2015 Nordstraum - Norway, Bergen - Call sign: LAWE7

Latest data adjustment

17 July 2014
