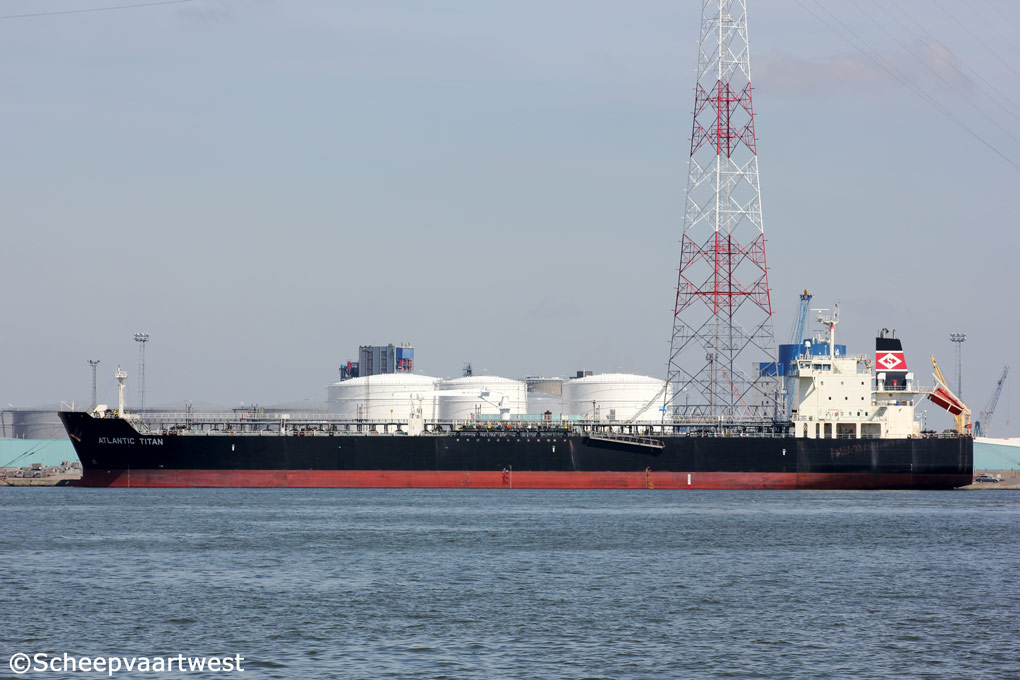

Antwerpen 16 April 2014 |
|
Name |
ATLANTIC TITAN |
|
Location |
Antwerpen 16 April 2014 moored |
|
Type |
Oil / Chemical tanker |
|
IMO-number |
9360324 |
|
Call sign |
V2EQ4 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
29.266 t |
|
DWT |
Summer: 47.128 t |
|
NT |
12.026 t Suez: 27.285 t Panama: 24.299 t |
|
Length |
183,21 m overall |
|
Breadth |
32,24 m extreme |
|
Draught |
12,21 m |
|
Reg. Dimensions L x B x D |
175,56 x 32,20 x 18,80 m |
|
Rule Dimensions L x B x D |
174,00 x 32,20 x 18,80 m |
|
Keel to top of mast |
47,48 m |
|
Freeboard |
Summer: 6.613 mm |
|
Depth |
18,80 m registered |
|
Speed |
15,43 knots |
|
Built |
2008 |
|
Keel laid |
23.07.2008 |
|
Launch date |
30.09.2008 |
|
Date of completion |
11.11.2008 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. |
|
Yard number |
2013 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
Transverse: 10 |
|
Continuous decks |
1 |
|
Main engine |
1x 2 stroke single acting 6 cylinder 500 x 2.000 mm diesel engine - 9.480 kW at 127,0 rpm Built: 06.2008 Manufacturer: Hyundai Heavy Ind. Engine & Machinery, Ulsan - South Korea |
|
Propellers |
1 |
|
Boilers |
Built: 07.2008 Manufacturer: Kangrim Heavy Industrial Co., Ltd. |
|
Generators |
4x Generatorset 912 kVA - 450 Volt |
|
Cargo tank capacity |
51.907 m³ excl. slops |
|
Slop tanks total capacity |
1.175 m³ |
|
Tank capacities |
Fuel oil: 1.422,20 m³ Fresh water: 292,80 m³ Water ballast: 4.690,90 m³ |
|
Manager |
Diamond S. Management, LLC |
|
Operator |
Anglo-Eastern Ship Management (Singapore) Pte Ltd. |
|
Owner |
Handytankers Nicolai Eigtvedsgade 28 |
|
Registered owner |
Heroic Scorpio Inc. |
|
Latest data adjustment |
12 July 2014 |
