Westerschelde 18 June 2014 |
 |
| Westerschelde 28/05/14 |
|
Name |

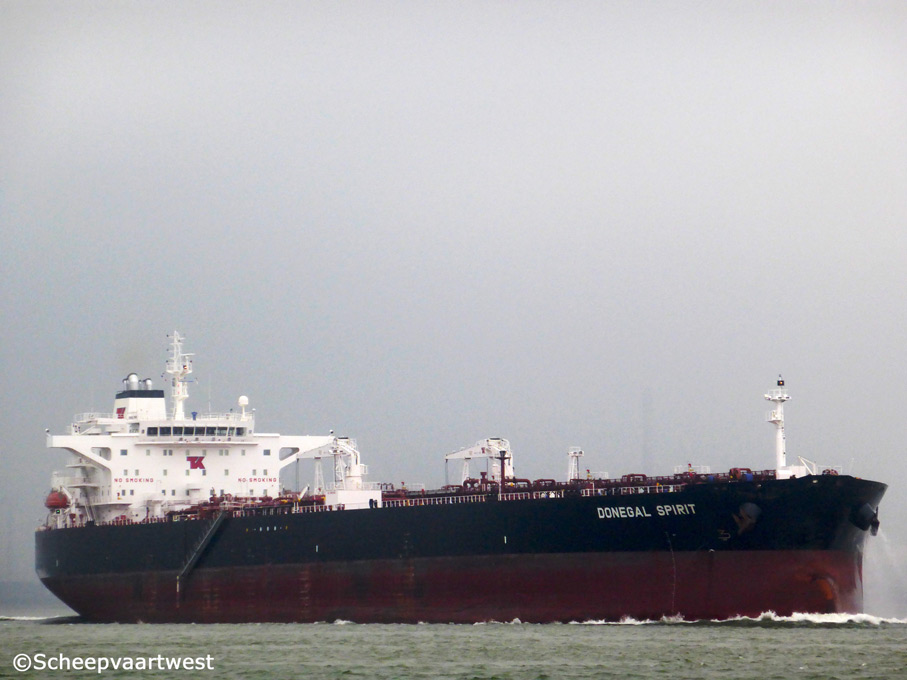

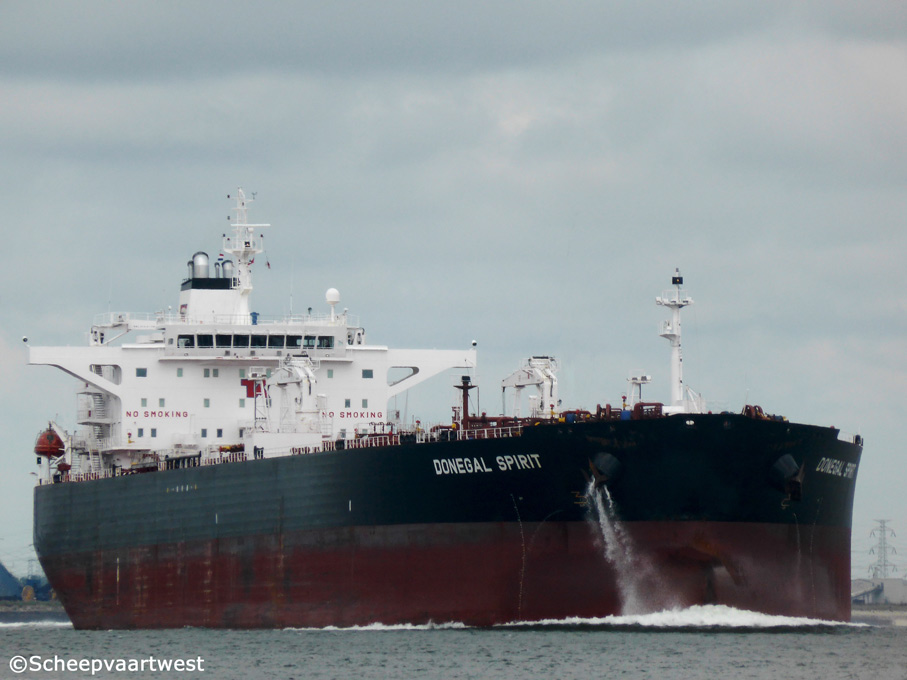

DONEGAL SPIRIT |
|
Type |
Oil product tanker |
|
IMO-number |
9312846 |
|
Call sign |
C6VE7 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
57.325 t |
|
DWT |
Summer: 105.611 t |
|
NT |
32.621 t Suez: 54.512 t |
|
Light ship |
17.336 t |
|
Length |
243,96 t overall 234,00 m between perpendiculars |
|
Breadth |
42,03 m extreme |
|
Draught |
14,92 m |
|
Keel to mast |
49,73 m |
|
Depth |
21,00 m |
|
Speed |
14,8 knots |
|
Built |
2006 |
|
Keel laid |
27.04.2006 |
|
Launch date |
24.07.2006 |
|
Date of completion |
10.11.2006 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. |
|
Yard number |
1704 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN B&W/Hyundai 6S60MC-C - 6 cylinder combustion engine 18.420 hp / 13.548 kW Builder: Hyundai Engine & Machinery Co.Ltd.(B&W), Ulsan - South Korea |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated (Exhaust Gas Economizer) Builder: Kangrim 2x Auxiliary boiler, oil/gas fired (water tube boiler) Builder: Aalborg Industries, Aalborg |
|
Generators |
3x Hyundai HIMSEN 5H21/32 diesel generatorsets |
|
Emergency generator |
1x Sisu diesel generatorset |
|
Cargo tank capacity 98% |
115.864 m³ |
|
Slop tank capacity 98% |
1.973 m³ |
|
Segregations |
3 |
|
Number of pumps |
3x Pumps - 3.000 m³/h |
|
Ballast capacity |
38.182 m³ |
|
Anchor equipment |
Length: 715,00 m Diameter: 87 mm |
|
Lifting equipment |
2x Hose handling crane - SWL 15,0 t each |
|
Manager |
Teekay Shipping Limited as Managers for Owners |
|
Previous managers |
2006 - 2006 TeeKay Shipping (Glasgow) Ltd. 2006 - 2012 TeeKay Shipping (Glasgow) Ltd. |
|
Operator |
Teekay Marine (Singapore) Pte, Ltd |
|
Registered owner |
Donegal Spirit L.L.C. |
|
Latest data adjustment |
07 July 2014 |
