Wilhelmine Essberger IMO 9295440 09

Westerschelde 18 June 2018

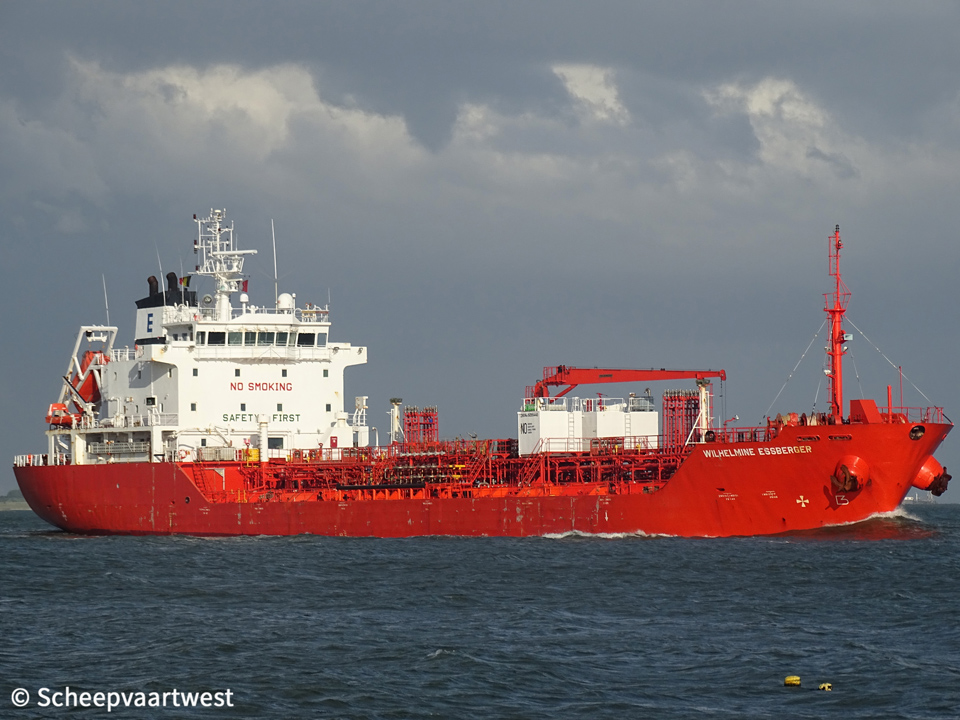

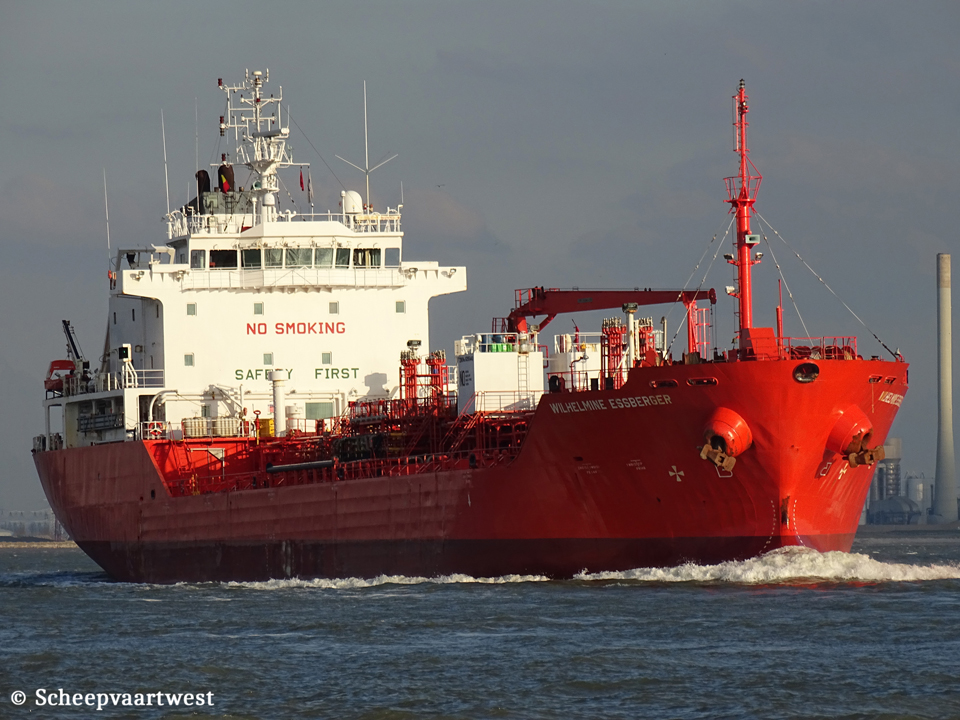

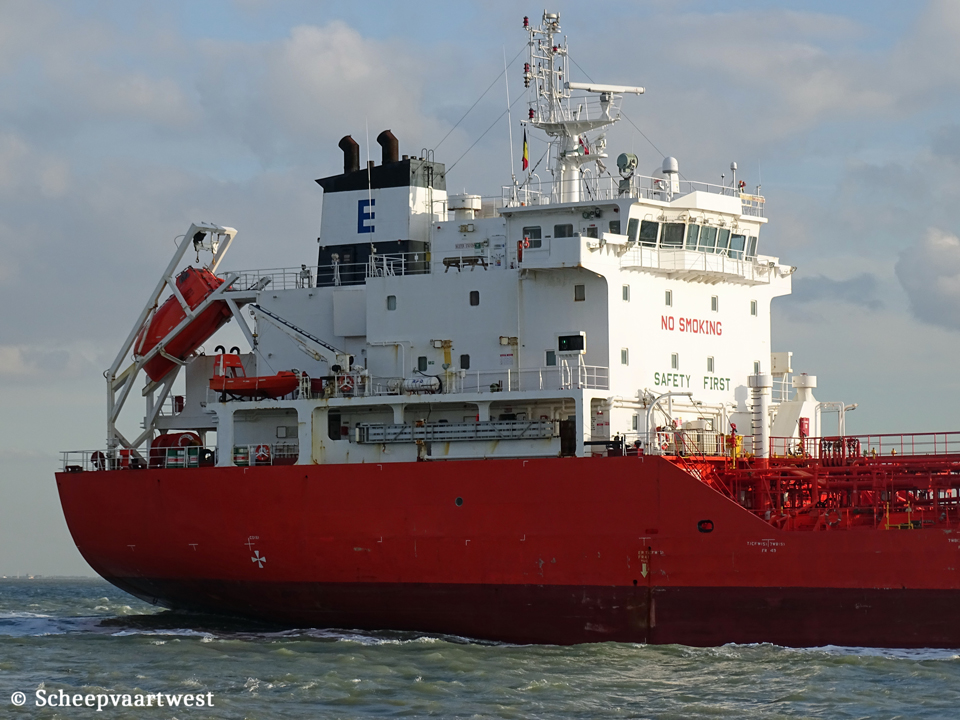

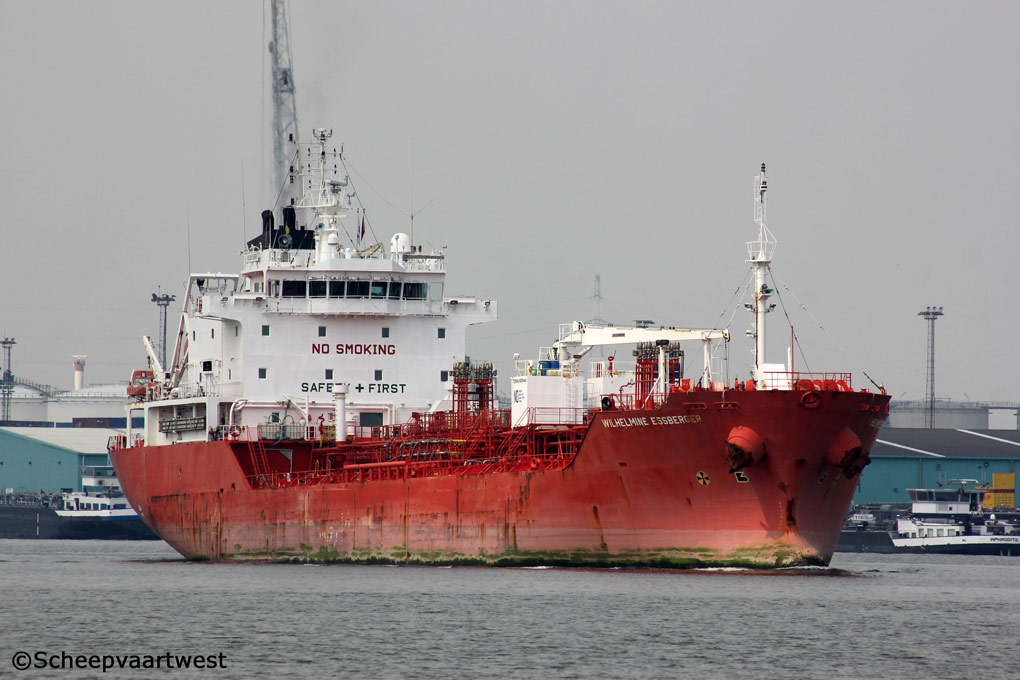

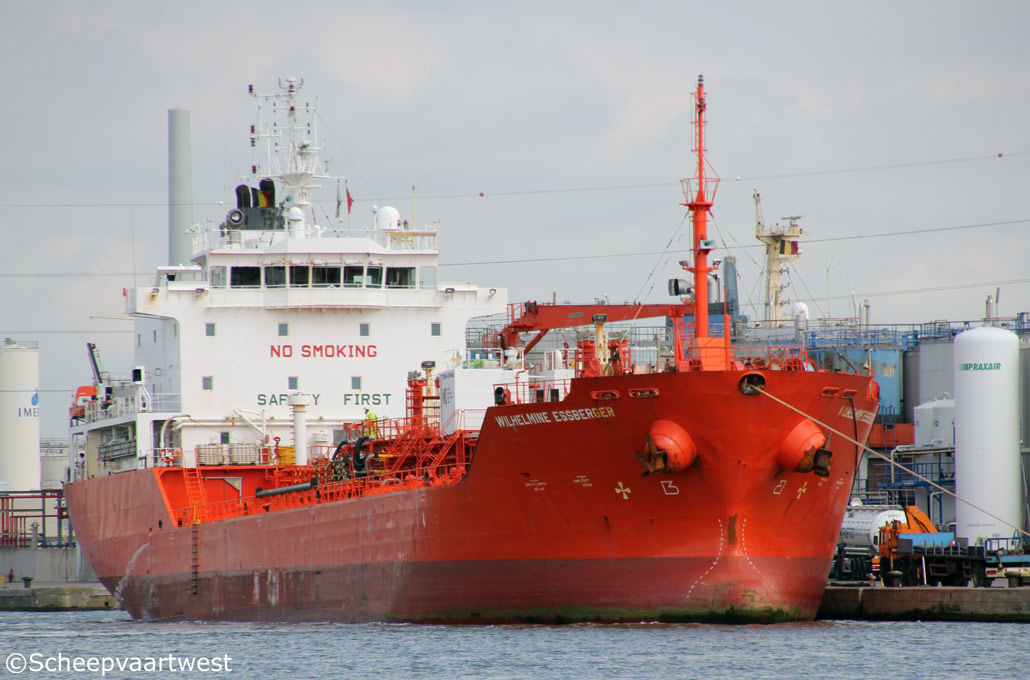

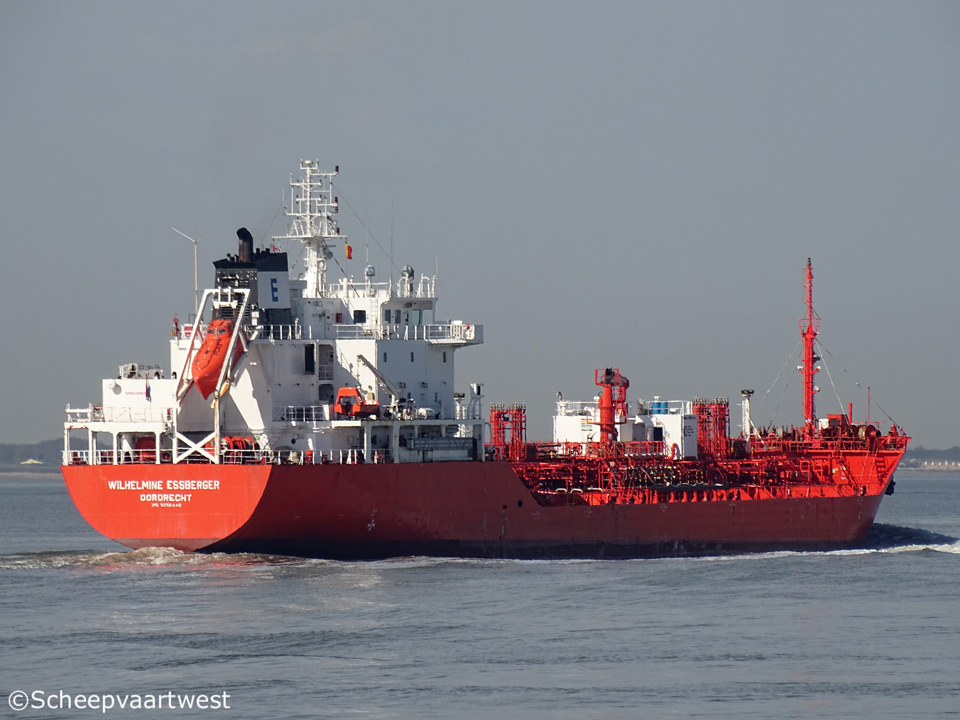

Wilhelmine Essberger 01   Wilhelmine Essberger 03   Wilhelmine Essberger 04   Wilhelmine Essberger 02   Wilhelmine Essberger IMO 9295440 06   Wilhelmine Essberger IMO 9295440 07
Antwerpen 04/05/14 Westerschelde 07/05/16 Westerschelde 12/07/16 Antwerpen 01/09/16   Westerschelde 12/02/16   Westerschelde 12/02/16

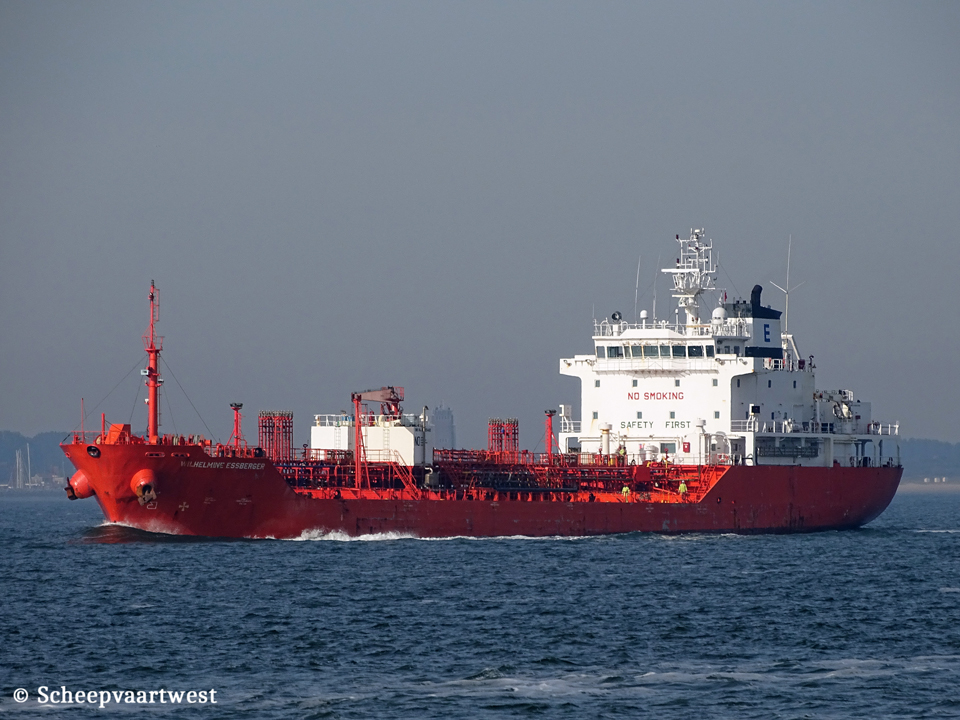

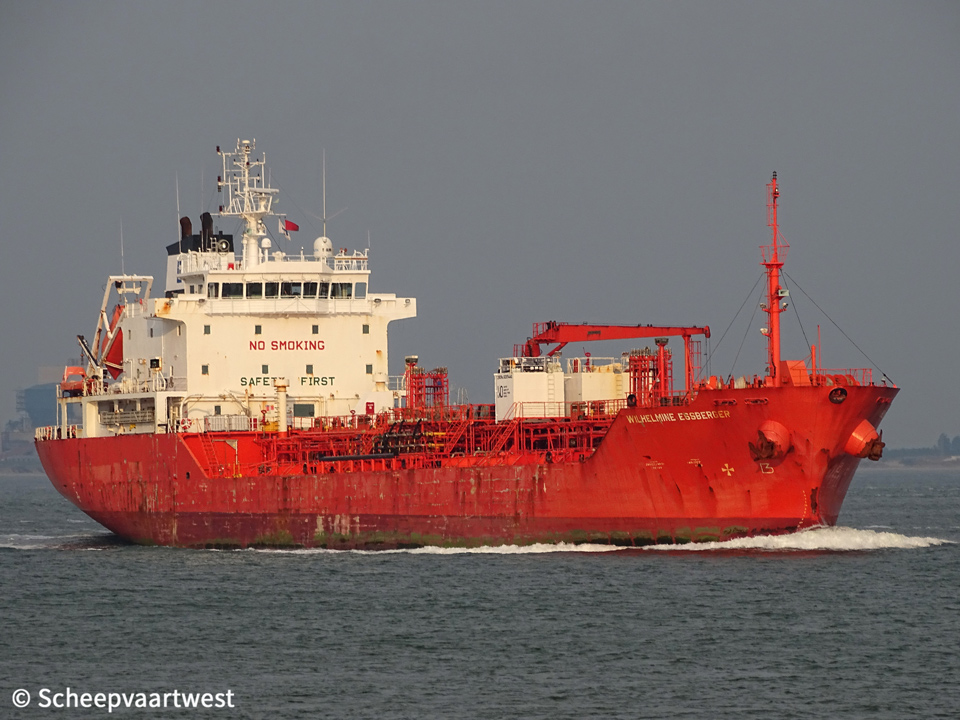

Wilhelmine Essberger IMO 9295440 08   Wilhelmine Essberger 05
Westerschelde 22/05/17   Westerschelde 23/05/18






Name

WILHELMINE ESSBERGER

Previous names

2005 - 07/2008 Cape Ellis

07/2008 - 05/2011 UCT Ellis

Type

Tanker for oil and chemicals

IMO-number

9295440

Call sign

PCAS

Flag

The Netherlands

Port of registry

Dordrecht

Previous flag

08/2005 - 07/2012 Marshall Islands, Majuro - Call sign: V7IP5

GT

5.815 t

DWT

Summer: 8.630,7 t

NT

2.541 t

Length

115,00 m overall

108,18 m registered

Breadth

18,80 m registered

Draught

7,41 m

Depth

9,70 m moulded

Speed

14,0 knots

Built

2005

Keel laid

24/12/2004

Launch date

08/04/2005

Date of completion

28/07/2005

Builder

INP Heavy Industries Co., Ltd.

175-1 Pang-o-dong, Tong-gu

Ulsan, 662-020 Kyongsang-namdo

Republic of Korea

Yard number

H1135

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

10

Continuous decks

1

Main engine

1x MAN-B&W 6S35MC - 2 stroke single acting 6 cylinder 350 x 1.400 mm combustion engine 4.440 kW / 6.037 bhp at 173,0 rpm

Year of manufacture: 2005

Manufacturer: Hyundai Heavy Ind. Co., Ltd.

1, Cheonha-dong, Dong-gu

Ulsan, 682-792 Kyongsang-namdo

Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 173 rpm

Boilers

1x Steam boiler, oil fired - 7,8 bar

Heating surface: 101,10 m²

1x Exhaust gas heated - 7,8 bar

Heating surface: 19,7 m²

Year of manufacture: 2004

1x Steam boiler, oil fired - 9,8 bar

Heating Surface: 88,2 m²

Year of manufacture: 2005

Manufacturer: Miura Co., Ltd.

7, Horie

Matsuyama, 799-2696 Ehima-ken

Japan

Electric installations

3x Plants each 440 V - 700 kVA

1x Plant 440 V - 100 kVA

Shaft generator

3x Yanmar 6N18AL-SV main diesel generatorsets each 700 kVA

Generators

1x Sisu 420 DSRIG diesel generatorset 100 kVA

Compressed air receivers

2x Receivers each 1.000 litres - 30,0 bar

1x Receiver 100 litres - 30,0 bar

1x Receiver 80 litres - 7,7 bar

Bow thruster

1x 475 kW - aft

1x 475 kW - forward

Number of cargo tanks

18

Liquid cargo capacity

9.139 m³

Tank capacities

Fuel oil: 583 m³

Ballast: 3.520,14 m³

Anchor equipment

3x Anchors weight each 3.540 kg

Chain length: 522,50 m

Diameter: 52 mm

Crew size

19

Manager

John T. Essberger G.m.b.H. & Co. K.G.

Hamburg

Germany

Previous managers

  • 08/2005 - 05/2011 Columbia Shipmanagement Ltd.

  • 05/2011 - 07/2012 John T. Essberger, Hamburg - Germany

  • 07/2012 - 12/2016 Essberger Tankers (John T. Essberger B.V.), Dordrecht - The Netherlands

Registered owner

Wilhelmine Essberger Tankreederei G.m.b.H. & Co. K.G

Wieldrechtseweg 50

3316 BG Dordrecht

The Netherlands

Previous names & owner

  • 08/2005 - 07/2008 Cape Ellis - Cape Ellis Shipping Co. Ltd.

  • 07/2008 - 05/2011 UCT Ellis - UCT Ellis Maritime Co. Ltd

  • 05/2011 - 07/2012 Wilhelmine Essberger - Wilhelmine Essberger Tankreederei G.m.b.H., Hamburg - Germany

  • 07/2012 - 11/2016 Wilhelmine Essberger - Wilhelmine Essberger B.V., Dordrecht- The Netherlands

Latest data adjustment

27 August 2023
