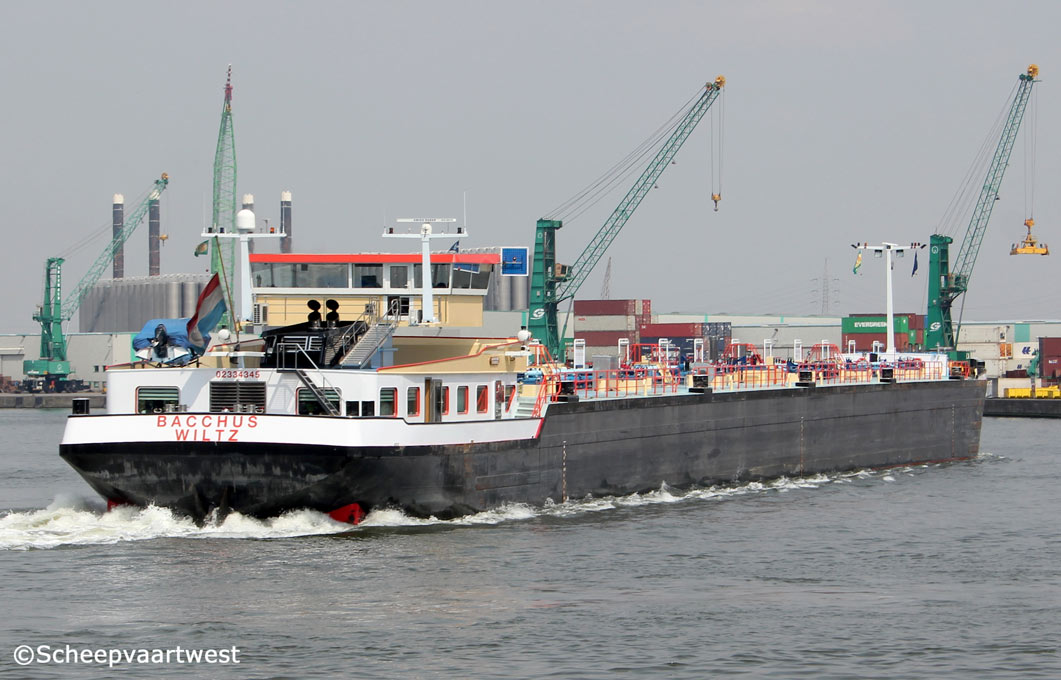

Antwerpen 05 May 2014 |
 |

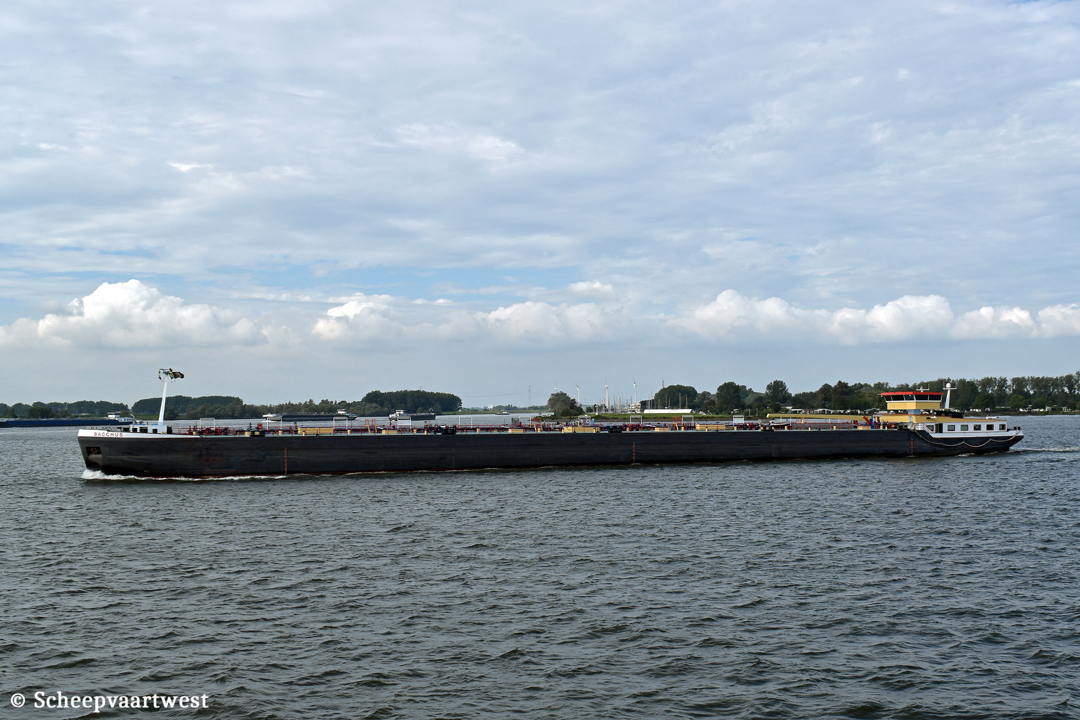

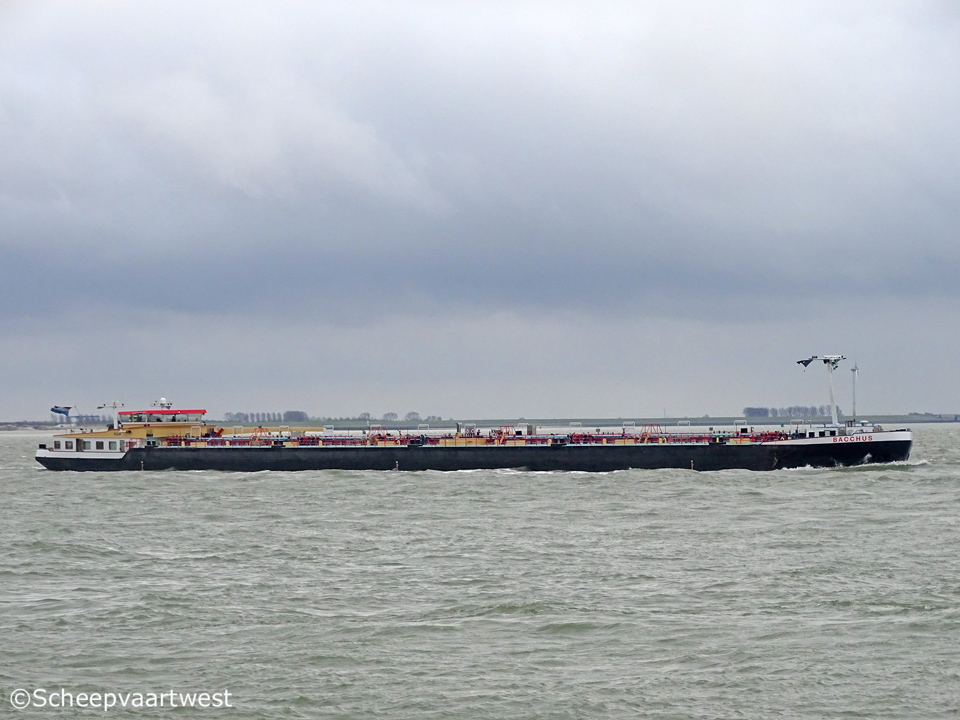

| Westerschelde 25/12/17 |
|
Name |
BACCHUS |
|
Type |
Inland tanker |
|
ENI-number |
02334345 |
|
Call sign |
PG6640 |
|
Flag |
G.D. Luxembourg |
|
Port of registry |
Wiltz |
|
GT |
2.588 t |
|
Tonnage |
4.267 t |
|
Length |
135,00 m |
|
Breadth |
11,45 m |
|
Draught |
3,87 m |
|
Air draft |
7,30 m 5,30 m in ballast |
|
Depth |
5,36 m |
|
Built |
2011 |
|
Date of completion |
25.11.2011 |
|
Builder casco |
Kladovo Shipyard |
|
Builder completion |
De Waal |
|
Yard number |
048 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
2x Mitsubishi S 8 U-C2MPTK - 4 stroke 8 cylinder diesel engines each 1.826 hp / 1.343 kW at 1.090 rpm |
|
Gearbox |
2x Reintjes type WGF 763 - reduction: 3,286:1 |
|
Propellers |
2x Solid 5 bladed propeller diameter 1.700 mm |
|
Generators |
1x John Deere 97 kVA - 78 kW - 106 hp 1x Caterpillar 531 kVA - 425 kW - 607 hp 1x Caterpillar 120 kVA - 96 kW - 130 hp |
|
Bow thruster |
2x Cummins 560 hp - Verhaar Omega-Jet type VBS1200SR - 393 kW at 1.780 rpm |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity 97% |
4.345 m³ |
|
Pumps |
1x Bornemann cargo pump type W8 - 900 m³/h driven by an ABB electro motor - 315 kW 1x Bornemann cargo pump type HC232 - 500 m³/h driven by an ABB electro motor - 160 kW 1x Bornemann ballast pump unit type W7T - 400 m³/h driven by an electro motor - 45 kW |
|
Tank capacities |
Fuel oil: 80 m³ |
|
Operator |
BFT 3336 LE Zwijndrecht The Netherlands |
|
Owner |
Alcina Wiltz G.D. Luxembourg |
|
Latest data adjustment |
14 April 2018 |
