| Antwerpen 27 April 2014 |
 |
| Antwerpen 27/04/14 |
|

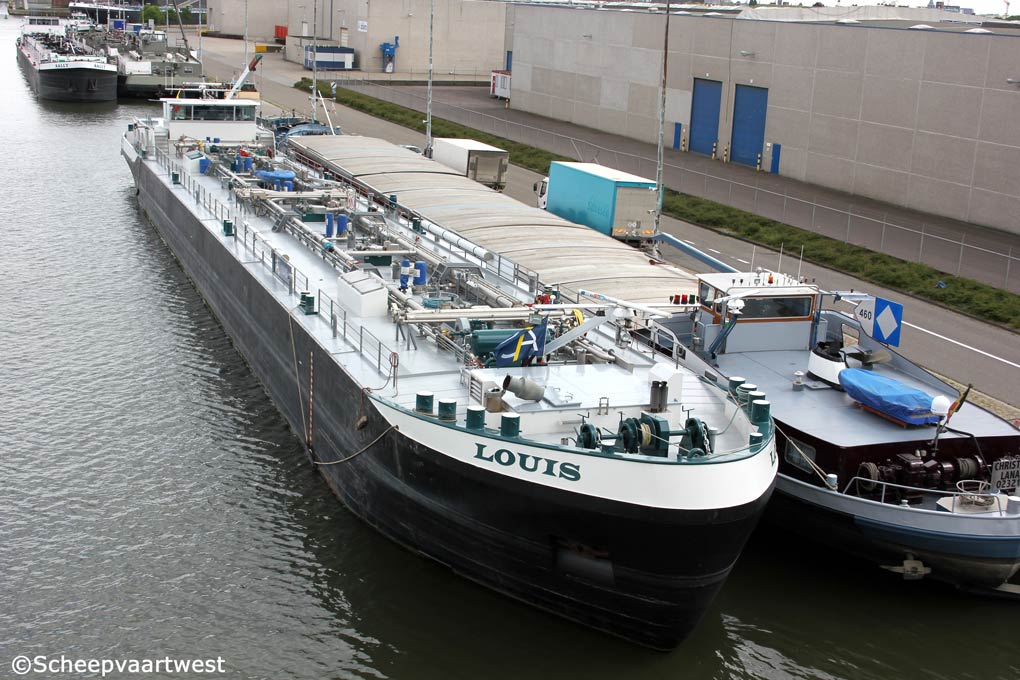

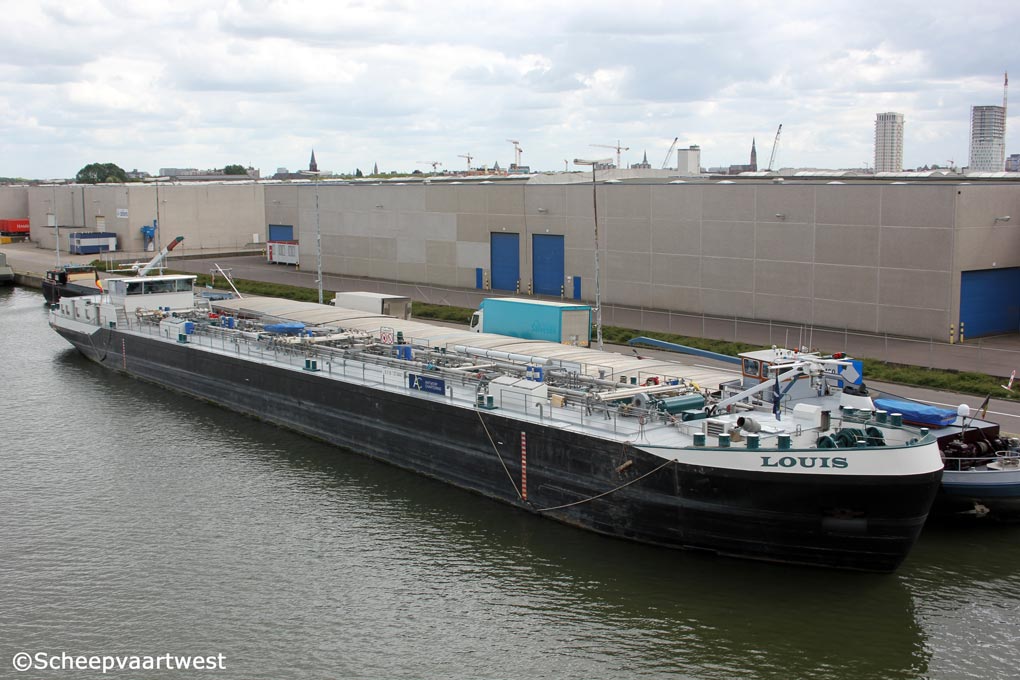

Name |
LOUIS |
|
Type |
Inland tanker |
|
ENI-number |
06004211 |
|
Call sign |
OT3783 |
|
Flag |
Belgium |
|
Port of registry |
Antwerpen |
|
GT |
1.027 t |
|
DWT |
1.373 t |
|
Length |
84,94 m overall |
|
Breadth |
9,64 m |
|
Draught |
3,20 m |
|
Depth |
4,35 m |
|
Built |
2006 |
|
Date of completion |
12.05.2006 |
|
Builder casco |
CSPL Lodenice |
|
Builder completion |
Bijlsma Shipyard |
|
Yard number |
112/04-R |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi S 12 R-MPTK - 940 kW / 1.278 hp at 1.600 rpm Built: 2006 Builder: Mitsubishi Heavy Industries, Ltd., Sagamihara - Japan |
|
Propellers |
1x 5 Bladed solid propeller diameter 1.650 mm with nuzzle Van de Giessen Optima diameter 1.662 mm |
|
Boilers |
1x CHO Wiesloch - 10,0 bar |
|
Electric installations |
Power voltage: 400 V Lighting voltage: 230 V Frequency: 50 Hz |
|
Generators |
1x Generatorset John Deere - 485 kVA - 388 kW - 565 hp 1x Generatorset John Deere - 120 kVA - 96 kW - 156 hp 1x Generatorset John Deere - 71 kVA - 57 kW - 77 hp |
|
Bow thruster |
John Deere 380 hp - van Wijk type SD 900 A |
|
Cargo tank capacity |
1.900 m³ |
|
Pumps |
5x Marflex 5 MDPD-80 deepwell each 100 m³/h |
|
Registered owner |
Irina Transport BVBA Ertbrandstraat 146 |
|
Latest data adjustment |
10 June 2014 |
