Antwerpen 16 April 2014 |
 |
| Antwerpen 16/04/14 |
|
Name |

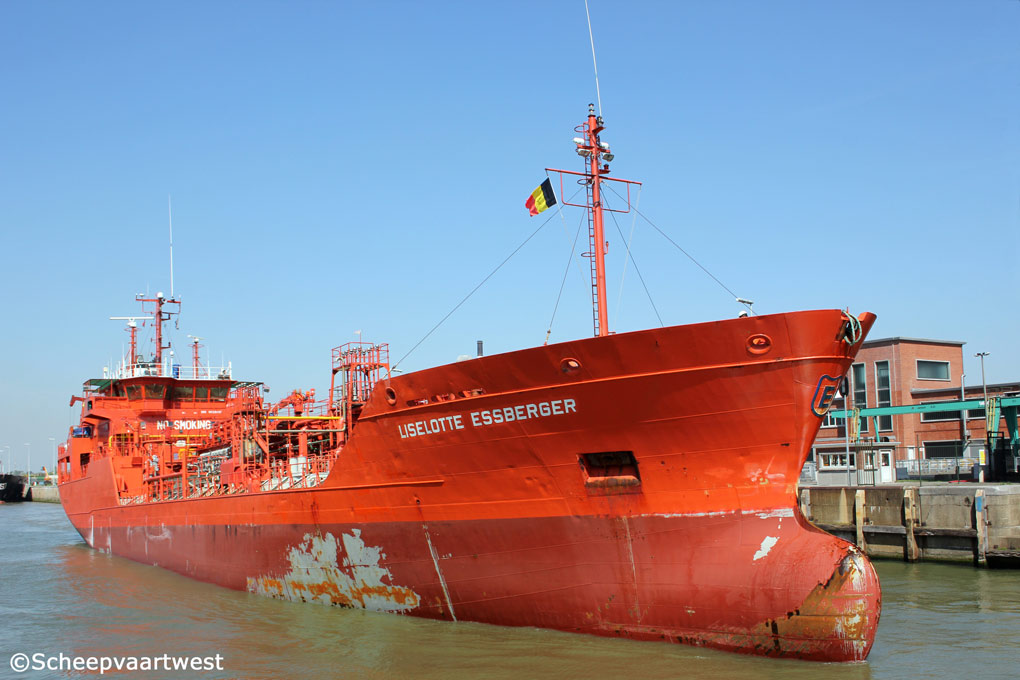

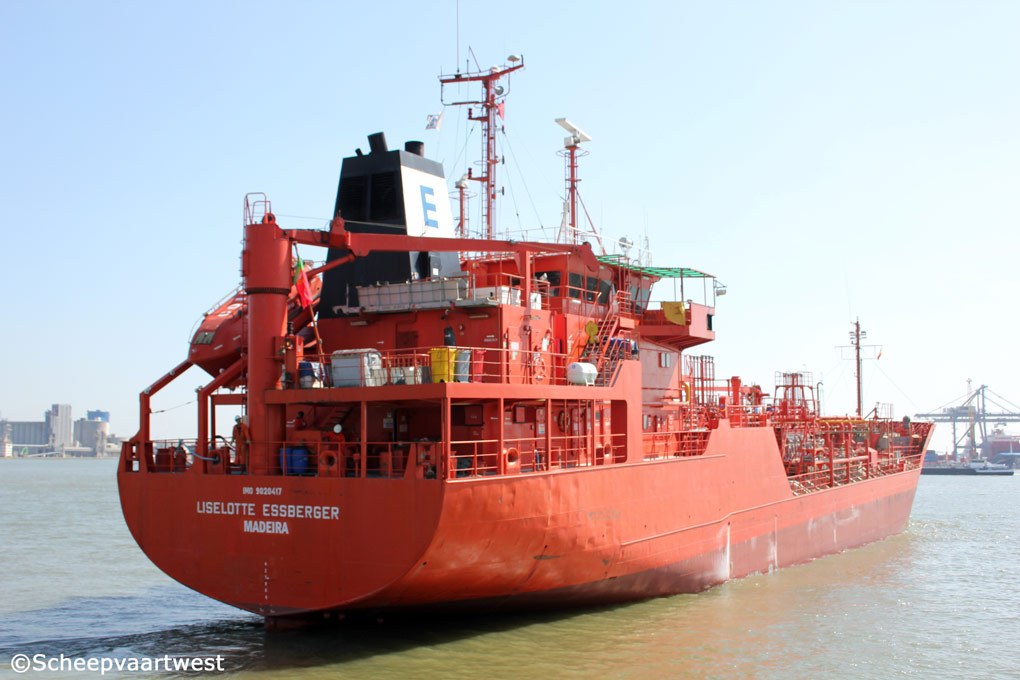

LISELOTTE ESSBERGER |
|
Previous names |
1992 - 01.1997 Liselotte Essberger 1997 - 08.2008 Lima Chemist |
|
Type |
Oil / Chemical tanker - Sietas type 149 |
|
IMO-number |
9020417 |
|
Call sign |
CQIO |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
GT |
2.634 t |
|
DWT |
Summer: 3.743 t |
|
NT |
1.101 t |
|
Length |
90,00 m overall 85,53 m registered |
|
Breadth |
14,40 m registered |
|
Draught |
6,13 m |
|
Forecastle |
12,08 m |
|
Poop |
22,70 m |
|
Depth |
7,48 m |
|
Speed |
14,20 knots |
|
Built |
1992 |
|
Keel laid |
30.03.1992 |
|
Launch date |
26.05.1992 |
|
Date of completion |
24.08.1992 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. Neuenfelder Fährdeich 88 21129 Hamburg Federal Republic of Germany |
|
Yard number |
1073 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double hull Partly double bottom |
|
Watertight bulkheads |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M453C - 4 stroke 6 cylinder 320 x 520 mm diesel engine - 2.298 kW / 2.991 hp at 600 rpm Year of manufacture: 1992 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 132 rpm |
|
Boilers |
Steam boiler, oil fired - 10,5 bar Heating surface: 52,0 m² Steam boiler, exhaust gas heated - 10,5 bar Heating surface: 140,0 m² Year of manufacture: 1992 Manufacturer: Alfa Laval Aalborg A/S Gasvaerksvej 24 9100 Aalborg Kingdom of Denmark |
|
Electric installations |
1x Plant 450/220 V - 260 kVA 1x Plant 450/220 V - 310 kVA 1x Plant 450 V - 900 kVA 1x Plant 450 V - 60 kVA |
|
Shaft generator |
1x 900 kVA |
|
Generators |
1x Main diesel generatorset 310 kVA 1x Main diesel generatorset 260 kVA |
|
Emergency generator |
1x Diesel generatorset60 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar 1x Receiver 1.000 litres - 11,0 bar |
|
Bow thruster |
1x Fixed pitch propeller PLEUGER - 238 kW, forward |
|
Number of cargo tanks |
19 |
|
Total cargo tank capacity |
3.909 m³ |
|
Ballast water |
1.560 m³ |
|
Anchor equipment |
3x Anchors weight each 2.100 kg Chain length: 440,00 m |
|
Manager |
John T. Essberger GmbH & Co. KG Palmaille 45 22767 Hamburg Federal Republic of Germany |
|
Registered owner |
ETR Eismeer Tank-Reederei GmbH & Co. KG Palmaille 45 22767 Hamburg Federal Republic of Germany |
|
Latest data adjustment |
27 May 2014 |
