Antwerpen 07 March 2014 |
|
Name |

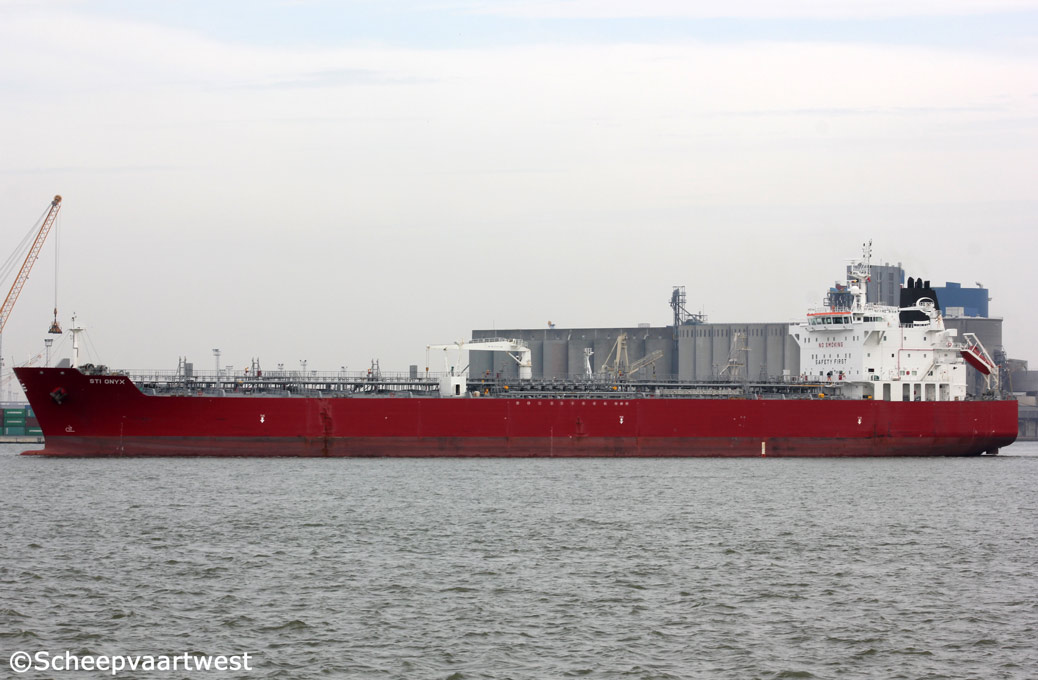

STI ONYX |
|
Type |
Oil / Chemical tanker |
|
IMO-number |
9629964 |
|
Call sign |
V7XP5 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
29.708 t registered Suez: 31.307,23 t |
|
DWT |
Summer: 51.840 t |
|
NT |
14.103 t registered Panama: 24.661 t Suez: 27.356,64 t |
|
Length |
183,31 m overall 174,29 m between perpendiculars |
|
Breadth |
32,20 m moulded |
|
Draught |
11,0 m |
|
Freeboard |
6.122 mm |
|
Depth |
19,10 m moulded |
|
Speed |
14,5 knots |
|
Built |
2012 |
|
Keel laid |
29.12.2011 |
|
Launch date |
14.07.2012 |
|
Date of completion |
27.09.2012 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan |
|
Yard number |
2336 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 5 Oil tight: 8 |
|
Main engine |
1x MAN-B&W/HHI 6S50ME-B9.2 - 2 stroke 6 cylinder 500 x 2.214 mm diesel engine - 8.890 kW at 99,0 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: HHI Engine & Machinery Div. |
|
Boilers |
1x Auxiliary boiler Mission OL - 9,0 bar 1x Composite boiler Mission OC - 9,0 bar Manufacturer: Alfa Laval Qingdao Ltd. |
|
Generators |
3x HFC7 508-14k main diesel generatorsets each 800 kW Manufacturer: HHI Electro Electric System |
|
Number of cargo tanks |
15 |
|
Total cargo tank capacity |
55.327,6 m³ / 55.327,6 t |
|
Number of tanks |
Ballast: 14 Fuel oil: 9 Lubricating oil: 8 Diesel oil: 4 Chain: 2 Sludge: 2 Fresh water: 2 Fixed ballast liquid: 1 Gasoline: 1 Waste water: 1 Hydraulic oil: 1 |
|
Tank capacities |
Diesel oil: 195,1 m³ / 175,59 t Freshwater: 299,2 m³ Fuel oil: 1.457,8 m³ / 1.443,22 t Hydraulic oil: 17,9 m³ / 16,11 t Lube oil: 104,5 m³ / 94,05 t Tank ballast: 22.428,2 m³ / 22.988,90 t |
|
Lifting equipment |
1x Engine Room Crane DP12-06-02 - SWL 4,0 t 1x Hose Handling Crane DN12-06-37 - SWL 10,0 t 1x Provision Crane Port DN12-06-02-P - SWL 2,0 t 1x Provision Crane Stbd DN12-06-02-S - SWL 4,0 t Manufacturer: Dongnam Marine Crane Co., Ltd. |
|
Manager |
Scorpio Shipmanagement S.A.M. 9, Boulevard Charles III |
|
Operator |
Scorpio Ship Management S.A.M. |
|
Registered owner |
STI Onyx Shipping Company Ltd. |
|
Latest data adjustment |
27 April 2014 |
