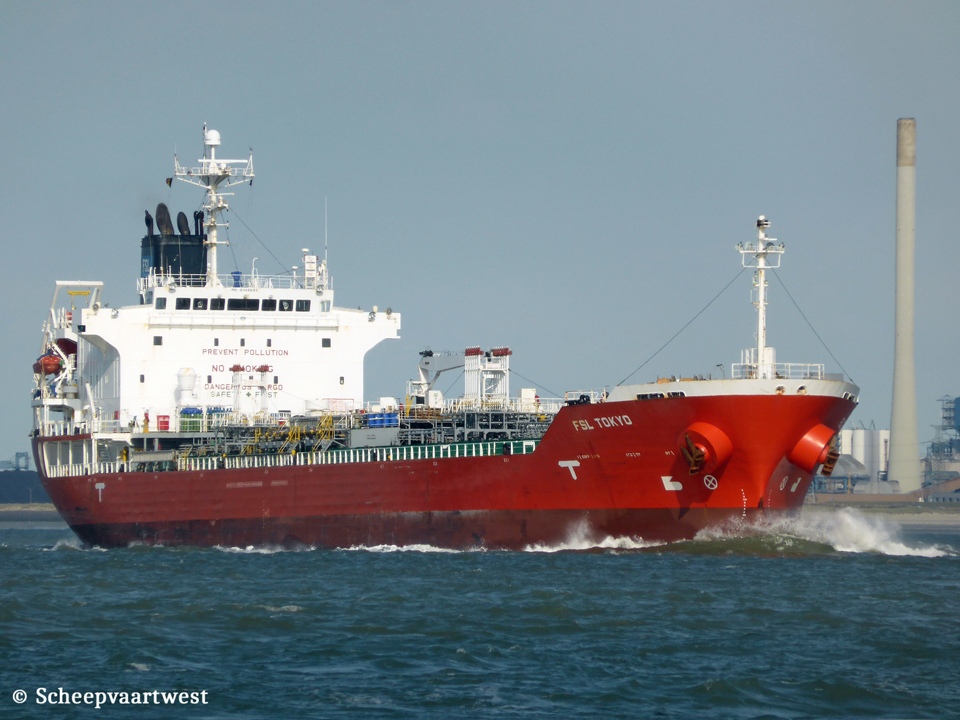

FSL Tokyo IMO 9349643 04
Westerschelde 30 May 2015

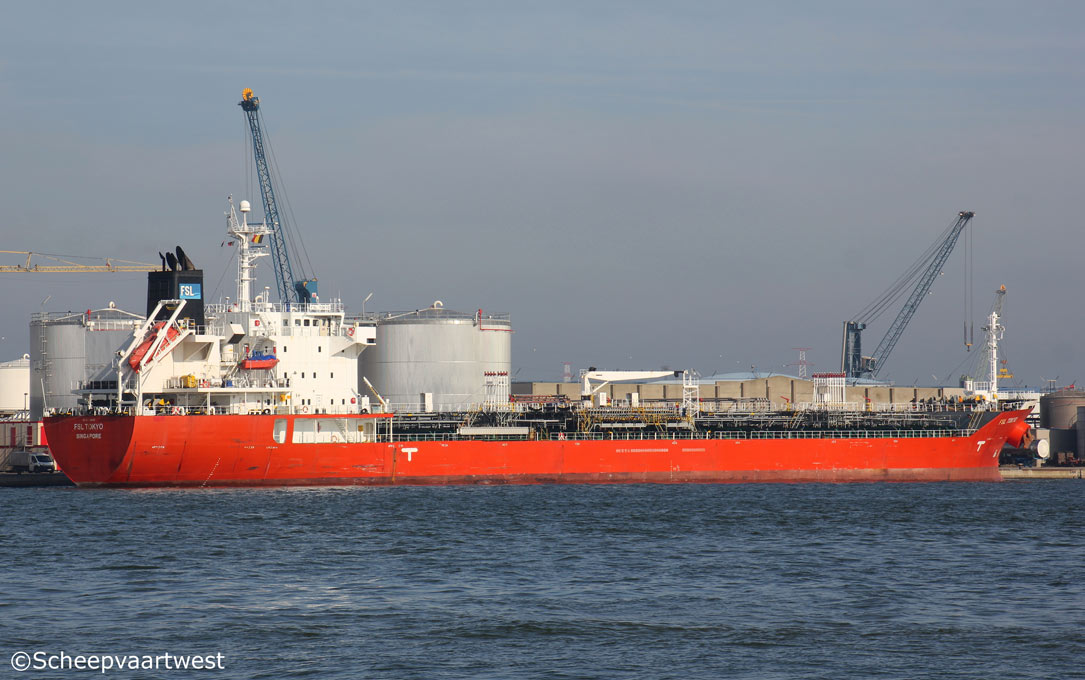

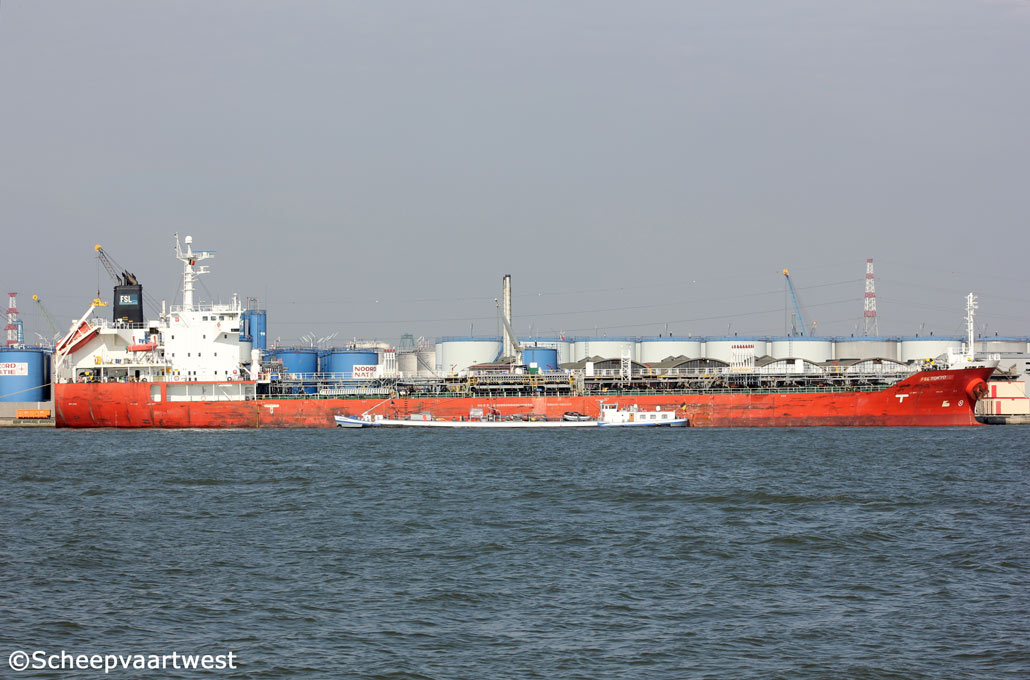

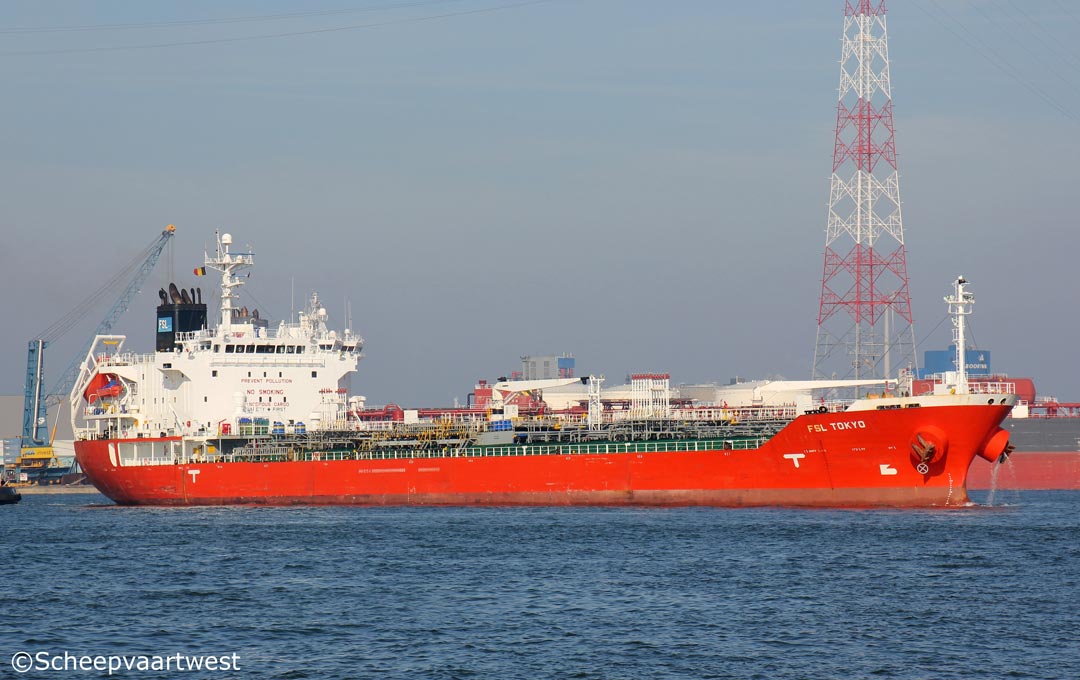

FSL Tokyo 02   FSL Tokyo 03   FSL Tokyo 01
Antwerpen 26/10/15   Antwerpen 26/10/15 Antwerpen 06/03/14


Name

FSL TOKYO

Previous names

07/2006 - 03/2012 Prita Dewi

Type

Oil / Molasses / Chemical tanker

IMO-number

9349643

Call sign

9VBR4

Flag

Republic of Singapore

Port of registry

Singapore City

GT

12.105 t

Suez: 12.607,37 t

DWT

Summer: 20.938 t

NT

6.378 t

Suez: 10.666 t

Displacement

26.506 t

Length

147,83 m overall

Breadth

24,22 m extreme

Draught

Summer: 9,77 m

Moulded L x B x D

141,00 x 24,20 x 12,85 m

Registered L x B x D

141,20 x 24,20 x 12,85 m

Freeboard

3.123 mm

Depth

12,85 m moulded

Speed

Max: 16,1 knots

Service: 14,7 knots

Built

2006

Keel laid

09/12/2004

Launch date

27/03/2006

Date of completion

26/07/2006

Builder

Shin Kurushima Hiroshima Dockyard Co. ltd.

5563-5 Mitsu, Akitsu-Cho, Higashihiroshima City, 729-2402

Japan

Yard number

5410

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x MAN-B&W 6S42MC(MK6) - 2 stroke single acting 6 cylinder 420 x 1.764 combustion engine Mcr 6.150 kW / 8.361 hp at 136,0 rpm

Manufacturer: Makita Corporation Co., Ltd. - Japan

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 420 mm

Propellers

1x Fixed pitch propeller - aft at 136,0 rpm

Boilers

1x Auxiliary vertical boiler - 9,8 bar

Evaporation:16,95 t/h

Manufacturer: Aalborg(Qingdao) Boiler Company Ltd.

Generators

3x Main diesel generatorsets each 460kW / 450Volt 60 Hz

Manufacture: Taiyo Electric Co., Ltd.

Bow thruster

1x Tunnel thruster 578 kW / 786 bhp, forward

Segregations

22

Cargo liquid capacity 100%

21.932,27 m³

Slop tank capacity

637 m³

Number of pumps

6x Cargo pumps each 200 m³/h

14x Cargo pumps each 330 m³/h

Tank capacities

Fuel oil: 1.147,37 m³

Diesel oil: 95,59 m³

Fresh water: 670,36 m³

Water ballast: 7.865,35 m³

Lub oil: 90,90 m³

Lifting equipment

1x General use crane - SWL 2,0 t

1x Hose handling crane - SWL 5,0 t

Crew

20

Manager

Nordic Tankers Trading

Copenhagen

Denmark

Operator

Columbia Shipmanagement (S) Pte Ltd.

Registered owner

FSL-11 Pte Ltd.

Renamed

01/2018 - 04/2022 Saranga

India - Call sign: AWXF

04/2022 Sinar Malahayati

Republic of Singapore, Singapore City - call sign: 9V7715

Owner: Samudera Tankers Pte Ltd.

Manager: V.Ships Asia Group Pte. Ltd. - Republic of Singapore

Latest data adjustment

03 October 2023
