Vlissingen, The Netherlands 25 March 2014 |
|
Name |

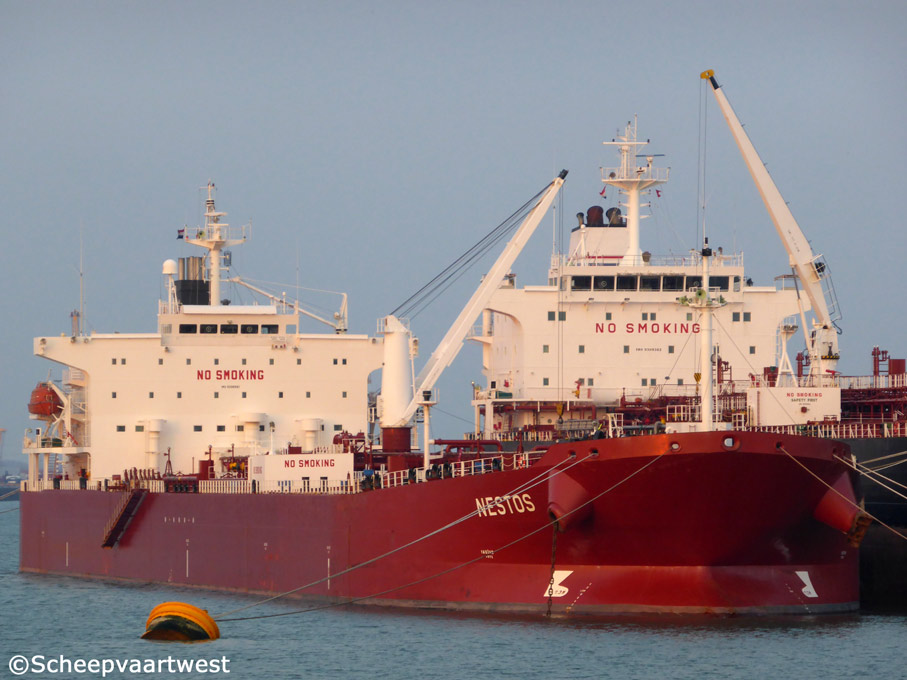

NESTOS |
|
Type |
Crude oil tanker |
|
IMO-number |
9298961 |
|
Call sign |
A8FW9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
35.711 t |
|
DWT |
Summer: 61.271 t |
|
NT |
16.707 t Panama: 29.568 t |
|
Length |
213,35 m overall 206,56 m between perpendiculars |
|
Breadth |
32,29 m extreme |
|
Draught |
10,90 m |
|
Air draft |
Normal ballast: 39,62 m |
|
Keel to mast |
45,33 m |
|
Freeboard |
Summer: 6,25 m Winter: 6,51 m |
|
Depth |
18,50 m moulded |
|
Speed |
14,8 knots |
|
Built |
2005 |
|
Date of completion |
01.03.2005 |
|
Builder |
Sumitomo Heavy Industries Marine & Engineering Co. Ltd. Yokosuka |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MITSUI MAN B&W 7S50MC Mk VI - 7 cylinder diesel engine 10.010 KW / 13.610 hp at 127,0 rpm |
|
Propellers |
1 |
|
Generators |
3x 5DK-20 diesel generatorsets each 610 KW |
|
Cargo tank capacity 98% |
Seg#1: 24.612 m³ (1P-S, 4P-S) Seg#2: 24.067,6 m ³(2P-S, 5P-S) Seg#3: 2.1499,4 m³ (3P-S, Slop P-S) |
|
Total tank capacity 98% |
64.006 m³ - excluding slop tanks |
|
Slop tank capacity 98 % |
6.173 m³ |
|
Pumps |
3x Cargo vertical centrifugal pumps - 2.000 m³/h 1x Stripping reciprocating pump - 150 m³/h 1x Eductors liquid driven pump - 250 m³/h 2x Ballast vertical centrifugal pumps - 1.125 m³/h |
|
Manifolds |
Bow to centre manifold: 102,93 m Stern to centre manifold :109,64 m Distance bridge front to centre of manifold: 77,98 m |
|
Lifting equipment |
1x Hose handling crane - SWL 15,0 t |
|
Manager |
Pleiades Shipping Agents 262 Kifissias Avenue, Building No. 2 145 62 Kifissia |
|
Operator |
Pleiades Shipping Agents S.A. |
|
Owner |
Beverely Navigation Inc. |
|
Latest data adjustment |
15 April 2014 |
