Westerschelde 14 June 2012 |
 |
| Westerschelde 14/06/12 |
|
Name |

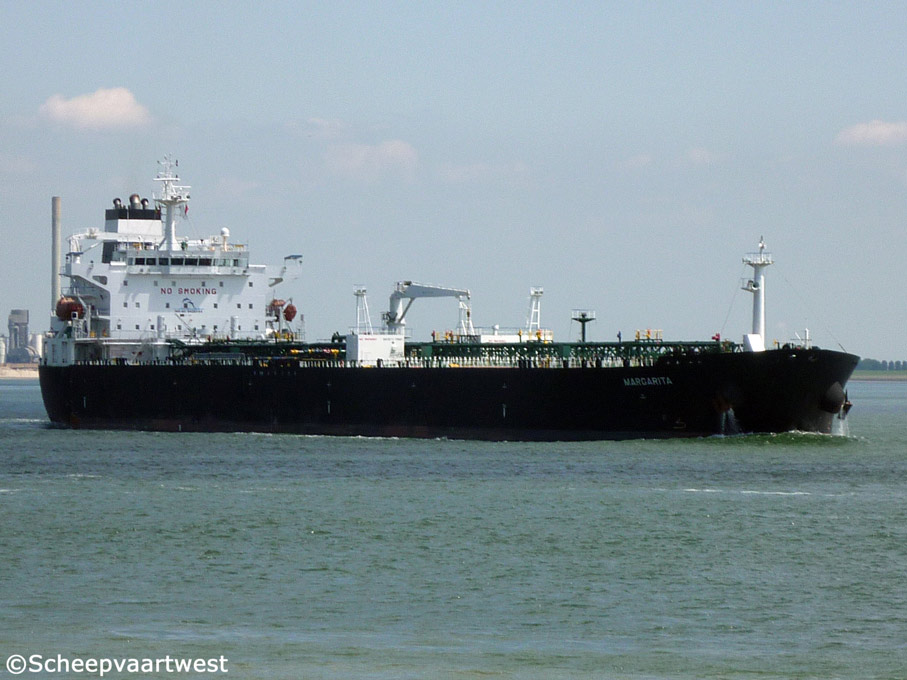

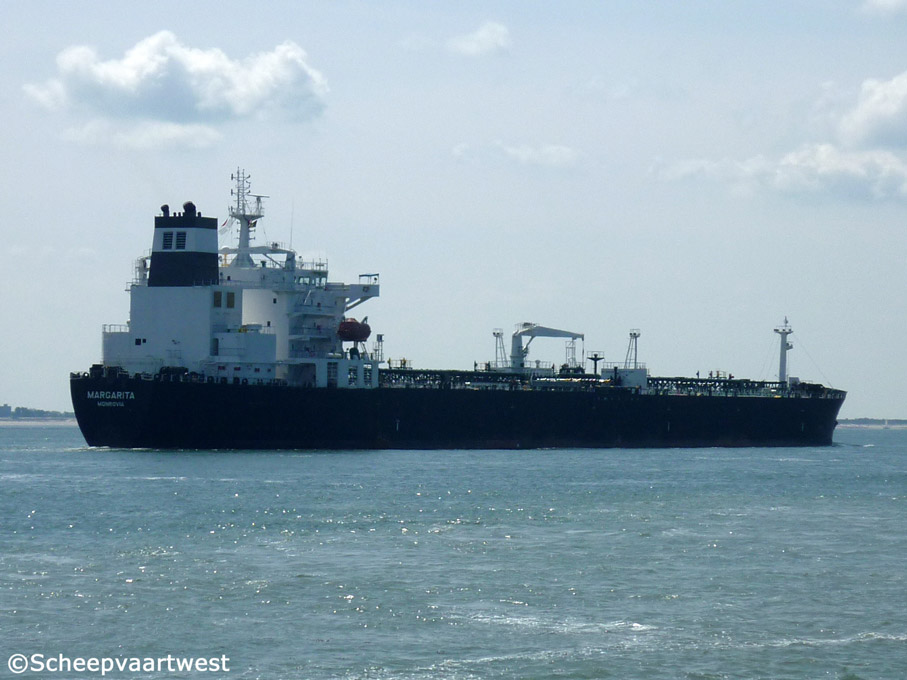

MARGARITA |
|
Type |
Crude and oil products carrier |
|
IMO-number |
9426594 |
|
Call sign |
A8MM8 |
|
Flag |
Republic of Liberia |
|
Port of registry |
Monrovia |
|
GT |
42.331 t registered Suez: 43.666,95 t |
|
DWT |
Summer: 74.998 t |
|
NT |
21.943 t registered Suez: 38.664,85 t Panama: 34.966 t |
|
Length |
228,00 m overall 219,00 m between perpendiculars |
|
Breadth |
32,24 m moulded |
|
Draught |
14,43 m |
|
Freeboard |
6.464 mm |
|
Depth |
20,90 m moulded |
|
Speed |
15,3 knots |
|
Built |
2008 |
|
Keel laid |
22.10.2007 |
|
Launch date |
06.06.2008 |
|
Date of completion |
24.10.2008 |
|
Builder |
Sungdong Shipbuilding & Marine Engineering |
|
Yard number |
S3029 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 2 Oil tight: 10 |
|
Main engine |
1x MAN-B&W-Doosan 6S60MC - 2 stroke 6 cylinder 600 x 2.292 mm diesel engine - 12.240 kW at 105,0 rpm Manufacturer: Doosan Engine Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Sil La Metal Co. |
|
Boilers |
1x Exhaust Gas Boiler EA11ZZ2 Manufacturer: KangRim Industries Co., Ltd. 2x Auxiliary boiler Aalborg Mission OL 20T/H Manufacturer: Aalborg Ind. Ltd. |
|
Generators |
3x FE 547B-8 diesel generatorsets each 680 kW Manufacturer: Taiyo Electric Co., Ltd. |
|
Number of cargo tanks |
13 |
|
Cargo tank capacity |
82.450,9 m³ / 80.801,88 t |
|
Number of tanks |
Ballast: 16 Fuel oil: 9 Lubricating oil: 8 Fresh water: 4 Sludge: 2 Diesel oil: 2 Chain: 2 Slop: 2 Potable water: 1 Waste water: 1 |
|
Tank capacities |
Diesel Oil: 148,6 m³ / 126,31 t Fresh water: 364,1 m³ Lube Oil: 147 m³ / 132,3 t Tank Ballast: 28.916,5 m³ / 29.639,41 t |
|
Lifting equipment |
1x Electro-hydraulic hose handling crane - SWL 15,0 t 1x Engine room overhead crane - SWL 4,0 t 2x Electro-hydraulic porvision crane - SWL 4,0 t Manufacturer: Dongnam Marine Crane Co., Ltd. |
|
Manager |
Dynacom Tankers Management |
|
Operator |
Magnus Co Inc. / Dynacom Tankers Management Ltd. |
|
Owner |
Magnus 94 Poseidonos Ave. & Nikis Str. |
|
Registered owner |
Magnus Co., Inc. |
|
Last data update |
10 February 2014 |
