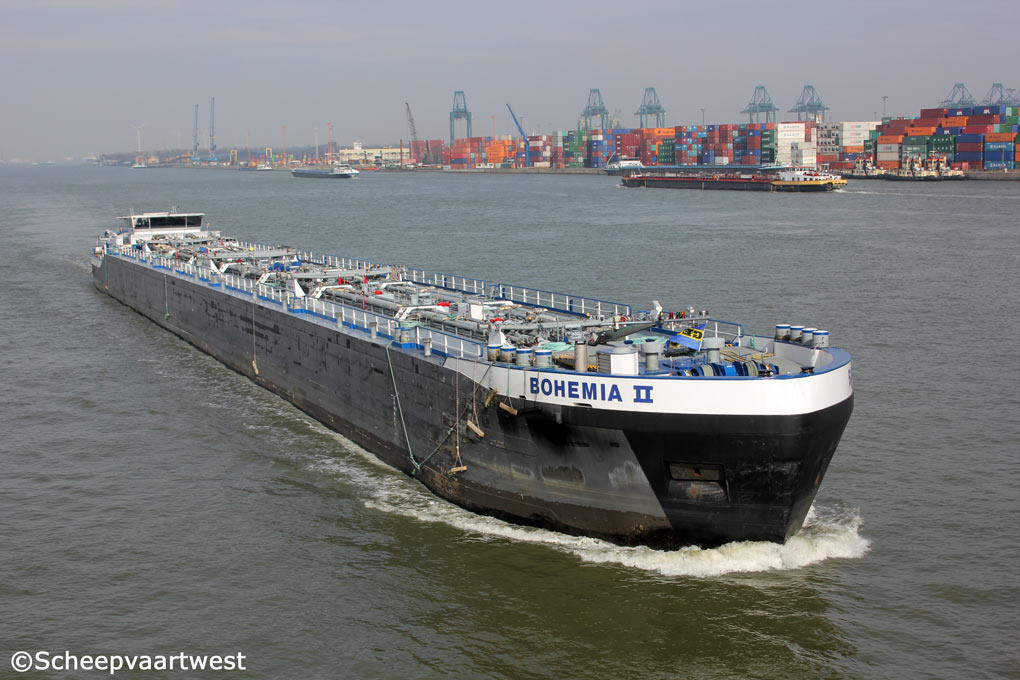

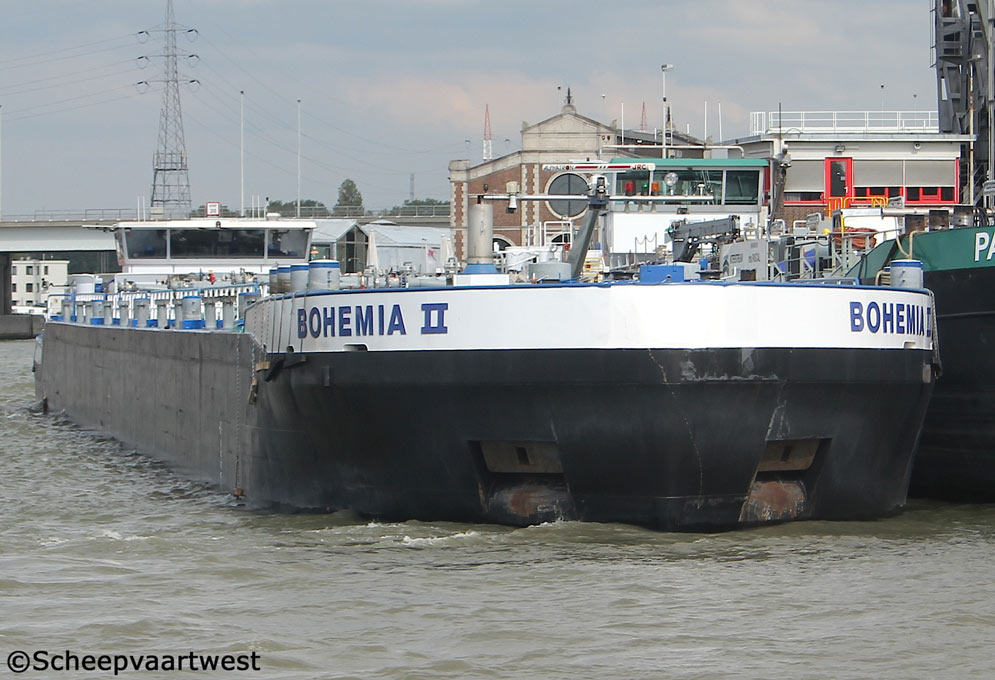

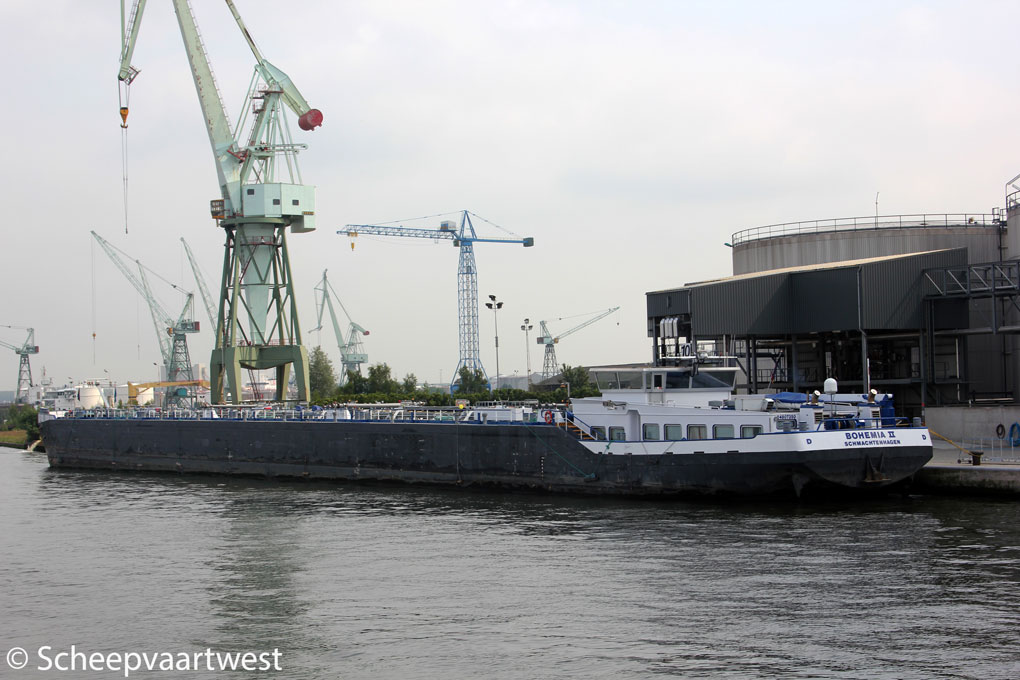

Bohemia II - ENI 04807350

Name

BOHEMIA II

Type

Inland tanker

ENI-number

04807350

Call sign

DK3804

Flag

Germany

Port of registry

Schmachtenhagen

Tonnage

3.348,992 t

Length

124,86 m

Breadth

11,40 m

Draught

3,50 m

Depth

5,25 m moulded

Built

2009

Keel laid

19.12.2007

Launch date

29.07.2008

Date of completion

01.04.2009

Builder casco

Kherson Shipyard JSC
1, Karantinny Ostrov
73019 Kherson , Hersons'ka
Ukraine

Yard number: CT 207-3

Builder completion

Technisch Bureau H&U B.V.
Heijningen
The Netherlands

Hull material

Shipbuilding steel (standard)

Hull type

Double hull

Partly double bottom

Watertight bulkheads

16

Continuous decks

1

Main engine

2x Caterpillar 3508 (C) DI-TA electronice-4 stroke 8 cylinder 170 x 190 mm diesel engies each 783 kW / 1.065 hp at 1.600 rpm

Year of manufacture: 2008

Manufacturer: Caterpillar, Inc.
100 N.E. Adams Street
Peoria ,61629 Illinois
United States of America

Gearbox

2x Masson Marine type MM W 4400 - reduction: 5,077:1

Propellers

2x AMW solid propellers Kaplan model - aft at 322 rpm

Diameter: 1.600 mm - 4 blades

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 33,78 m²

Year of manufacture: 2008

Manufacturer: Apparate- und Kesselbau AKB GmbH
Baiertaler Str. 98
69168 Wiesloch
Federal Republic of Germany

Electric installations

1x Plant 400 V - 60,6 kVA

1x Plant 400 V - 106,9 kVA

1x Plant 440 V - 625 kVA

1x Plant 24 V with 100 Ah

1x Plant 24 V Ah

1x Plant 24 V Ah

Generators

1x Caterpillar diesel engine type C18 Acert coupled with Leroy Somer generator 625 kVA

1x Caterpillar diesel engine type C4.4 coupled with Leroy Somer generator 60,6 kVA

1x Caterpillar diesel engine type C4.4 coupled with Leroy Somer generator 106,9 kVA

Batteries

8x Batteries for start main engine

2x Batteries for start auxiliary engine

Compressed air receivers

1x Receiver 150 litres - 13,0 bar

Bow thruster

1x Transverse thruster Caterpillar - van Tiem - 600 hp / 440 kW, forward

Pumps

2x EPS type EPS500 pumps each 500 m³ with electric motors each 200 kW

2x EPS type EPS10 pumps each 10 m³ with electric motors each 7,5 kW

Cargo tank capacity

4.180 m³

Lifting equipment

1x Car crane - SWL 2.000 kg

Outreach: 16,00 m

Manager owners

Ludwig Harms Finanzdienstleistungen e.K.
Mühlenstr. 9
26931 Elsfleth
Federal Republic of German

Owner

Stastny & Appelt GbR
Smachtenhagen
Germany

Registered owner

Dusan Stastny und Hynek Appelt GbR
Graetzer Str. 3 Schmachtenhagen
16515 Oranienburg
Federal Republic of Germany

Last update

27 July 2013
