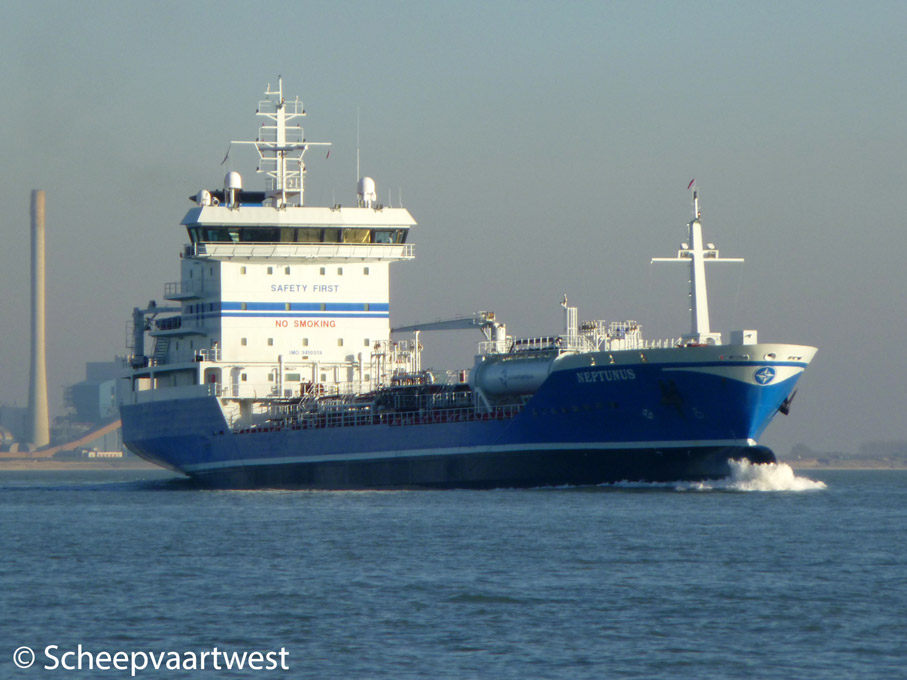

Neptunus IMO 9410519 01
Westerschelde 14 November 2012

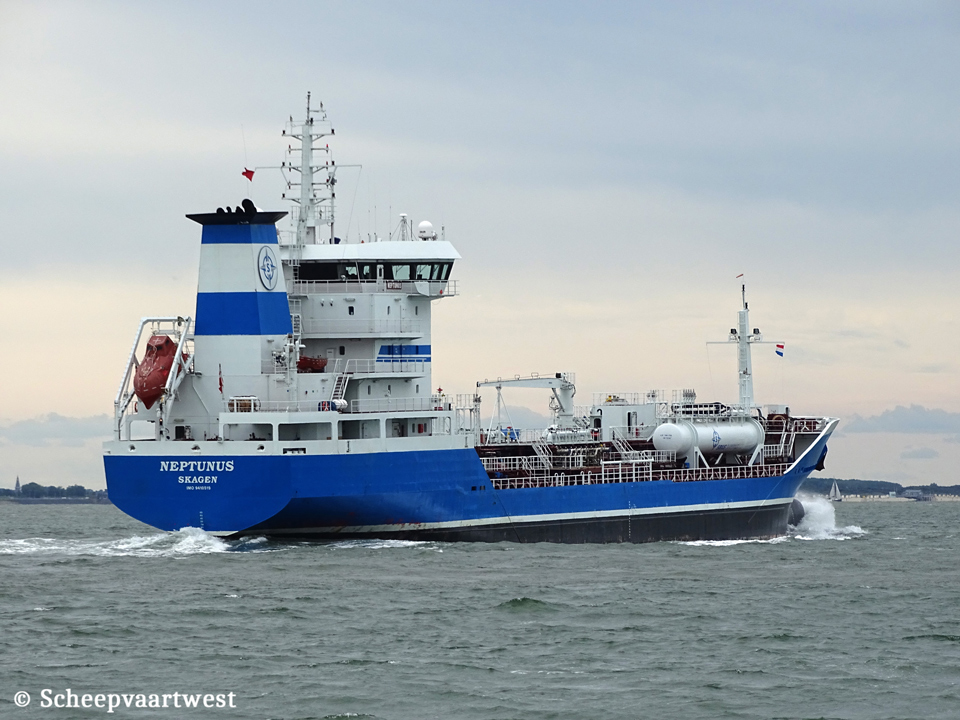

Neptunus IMO 9410519 02
Westerschelde 08/09/18


Name

NEPTUNUS

Previous names

Until 09.2007 Medyilmaz 01

2007 - 09/2008 Pakri Glory

2008 - 06/2012 Nordic Glory

Type

Oil tanker / Chemical tanker

IMO-number

9410519

Call sign

SBFE

Flag

Sweden

Port of registry

Donsö

Previous flag

2007 - 2012 Portugal - Call sign: CQOS

2012 - 2012 Manta, Valletta - Call sig: 9HA2985

2012 - 2019 Denmark, Skagen - Call sign: OUZC2

GT

4.874

DWT

Summer: 6.928 t

Winter: 6.691 t

NT

2.294 t

Length

119,10 m overall

111,60 m between perpendiculars

Breadth

16,90 m

Draught

6,77 m

Air draft

36,50 m

Freeboard

1.659 mm

Depth

8,40 m

Speed

14,5 knots

Built

2007

Date of completion

14/09/2007

Builder

Med Yilmaz Tersanesi

Zonguldak

Turkey

Yard number

01

Hull material

Steel

Hull type

Double sides, double bottom

Watertight compartments

9

Continuous decks

1

Main engine

1x MaK 8M32C - 4 stroke 8 cylinder 320 x 400 mm combustion engine 3.840 kW / 5.217 hp at 750 rpm

Built: 2006

Builder: MaK Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x Screw propeller controllable pitch

Diameter 4.300 mm - 4 blades

Boilers

2x CHO S-MAN AB 65,00 m² - 10,0 bar

1x CHR S-MAN AB 54,00 m² - 10,0 bar

1x CHS S-MAN AB 19,40 m² - 16,0 bar

Shaft generator

1x 1.375 kVA - 1.100 kW

Generators

3x MAN 2840 LE main diesel generatorsets each 606 kVA - 485 kW - 700 hp

Emergency generator

1x Diesel generatorset 163 kVA - 130 kW - 177 hp

Bow thruster

1x Hydraulic driven 440 kW

Number of tanks

12

Cargo tanks capacity 98%

8.081 m³

Number of slap tanks

2

Slop tank capacity

166 m³

Loading rate

1.400 m³h

Discharging rate

1.000 m³/h

Pumps

12x Deep Well hydraulic type FRAMO SD-150 pumps each 350 m³/h

2x Pumps each 100 m³/h

Manifolds

Manifold to stern: 60,05 m

Manifold to bow: 59,05 m

Tank capacities

HFO: 414 m³

MGO: 53 m³

Water ballast: 3.117 m³

Manager

Sirius Shipping AB

Donsö hamnväg 38

430 82 Donsö

Sweden

Registered owner

Partrederiet MT Neptunus

Last update

21 August 2021
