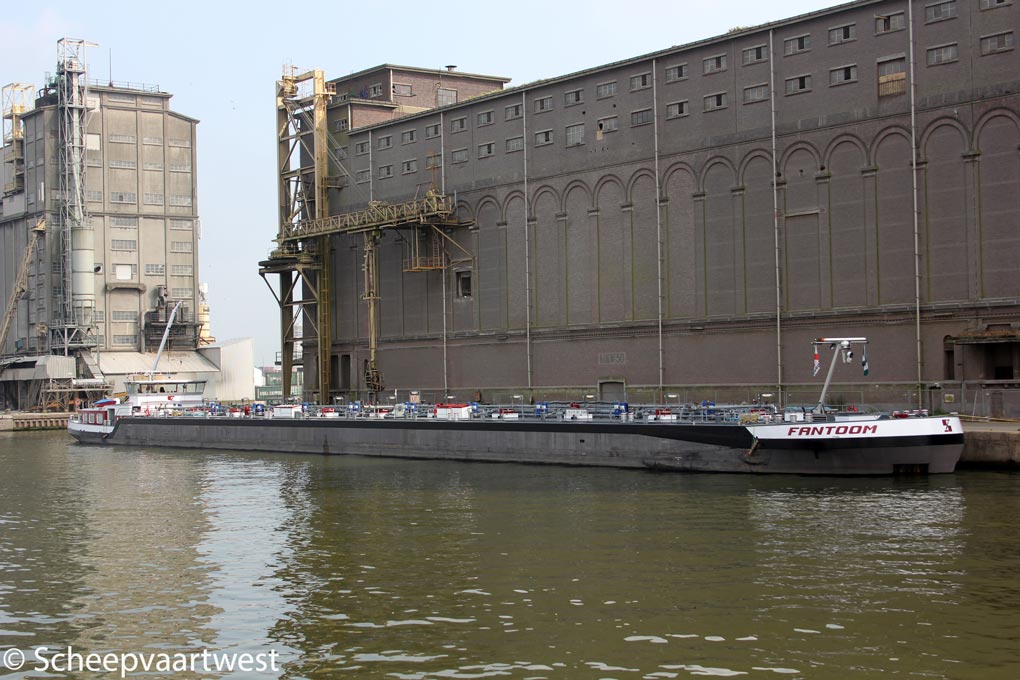

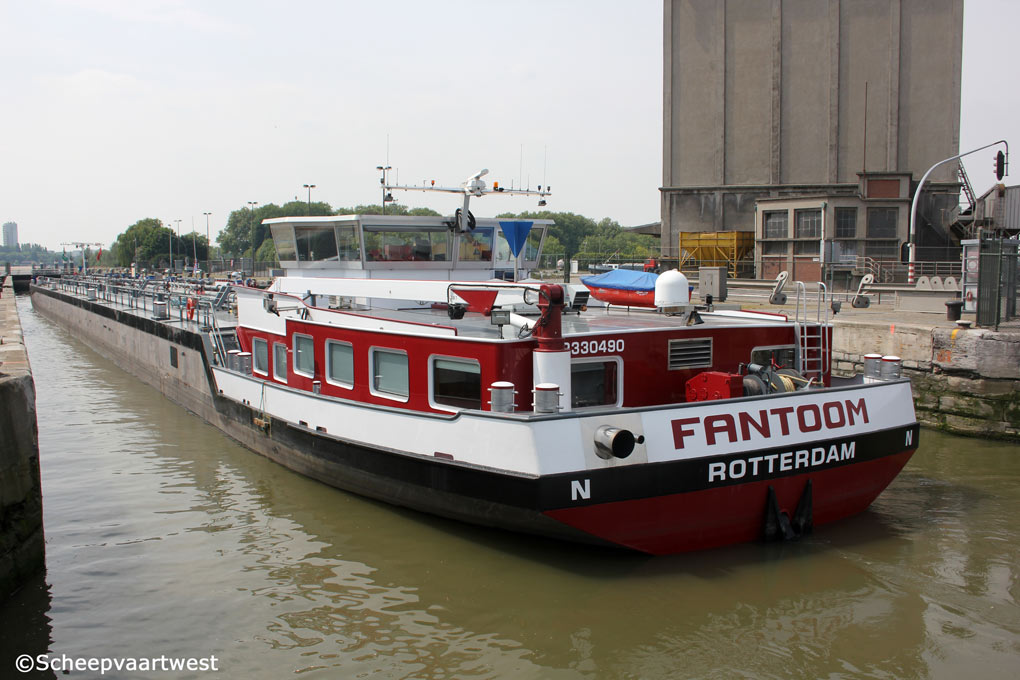

| Antwerpen 04 May 2014 |
 |
 |
 |
||
| Antwerpen 04/05/14 | Antwerpen 05/07/13 | Antwerpen 05/07/13 | ||
|
Name |
FANTOOM |
|
Type |
Inland tanker |
|
ENI-number |
02330490 |
|
Call sign |
PF7601 |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
Tonnage |
3.006 t |
|
Length |
110,00 m |
|
Breadth |
11,45 m |
|
Draught |
3,67 m |
|
Built |
2008 |
|
Builder casco |
Centromost Stocznia Rzeczna |
|
Builder completion |
Veka |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi S16R-C2MPTK - 1.700 hp / 1.250 kW at 1.600 rpm |
|
Gearbox |
1x Masson type MMW 7250 - reduction: 5,031:1 |
|
Propellers |
1x 5-blades propeller Kaplan model - diameter: 1750 mm with nozzle type Van de Giessen Optima - diameter: 1.762 mm |
|
Generators |
1x Caterpillar C18 Acert diesel engine coupled with Marathon 572 RSL 4028 generator 525 kVA 1x Perkins 4.4 TW2GM diesel engine coupled with Marathon 363 CSL 1607 generator 107 kVA 1x Perkins 4.4 TWGM motor coupled with Marathon 362 CSL 1606 generator 81 kVA |
|
Bow thruster |
1x Caterpillar - Verhaar Omega type 031130-4k- 510 hp / 375 kW at 1.780 rpm |
|
Cargo pumps |
10x Marflex type MDPD 80 |
|
Cargo tank capacity |
3.850 m³ |
|
Lifting equipment |
1x Hydraulic car Crane - 2.000 kg Outreach: 15,00 m |
|
Owner |
Fantoom BV (van der Straaten & Scheper) |
|
Last update |
17 July 2013 |
