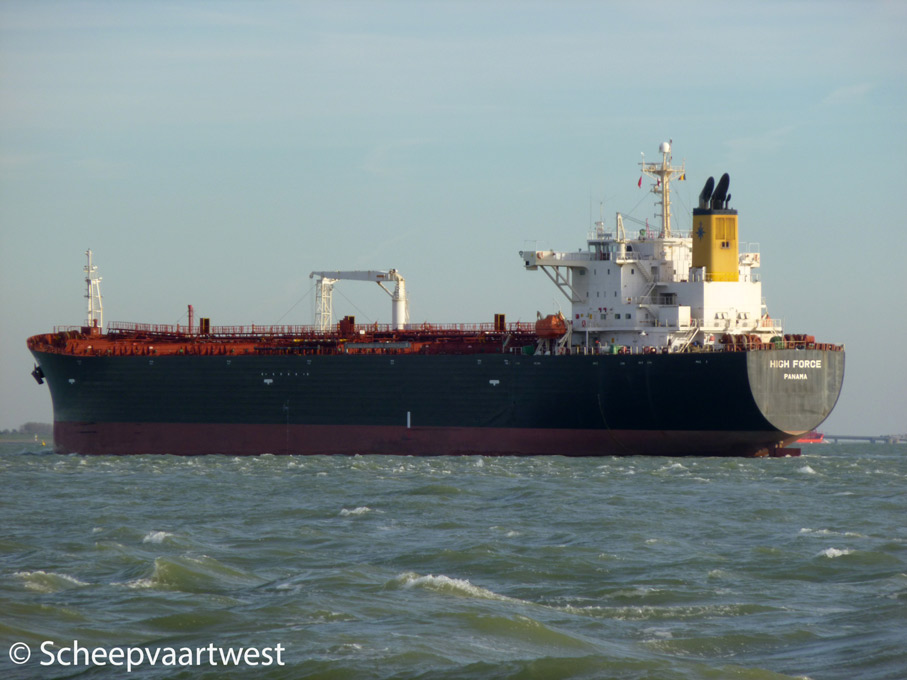

High Force 02
Westerschelde 31 October 2012


Name

HIGH FORCE

Type

Oil carrier

IMO-number

9403346

Call sign

3FMA2

Flag

Republic of Panama

Port of registry

Panama City

GT

31.433 t

DWT

53.603 t

NT

14.001 t

Length

185,93 m overall

Breadth

32,00 m

Draught

13,02 m

Moulded L x B x D

179,95 x 32,20 x 19,67 m

Registered L x B x D

180,74 x 32,20 x 19,67 m

Freeboard

Summer: 6.684 mm

Depth

19,67 m moulded

Speed

15,8 knots

Built

2009

Keel laid

23.02.2009

Launch date

08.05.2009

Date of completion

03.09.2009

Builder

Shin Kurushima Dockyard Co., Ltd.
Imabari
Japan

Yard number

5552

Hull material

Steel

Hull type

Double hull

Main engine

1x Mitsubishi-Kobe Diesel 6UEC60LS - 2 stroke single acting 6 cylinder 600 x 2.200 mm diesel engine - 10.620 kW at 100,0 rpm

Manufacturer: Kobe Diesel Co., Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 9,8 bar

Evaporation: 18,61 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

4x Main diesel generatorsets each 2.895 kVA

Number of tanks

12

Cargo capacity

Liquid: 60.334 m³

Tank capacities

Fuel oil: 2.067 m³

Fresh water: 380 m²

Water ballast: 20.586 m³

Crew

22

Manager

Fleet Management Limited

Owner

Fukujin Kisen
Imabari
Japan

Registered owner

Wealth Line Inc.

Last update

15.05.2013
