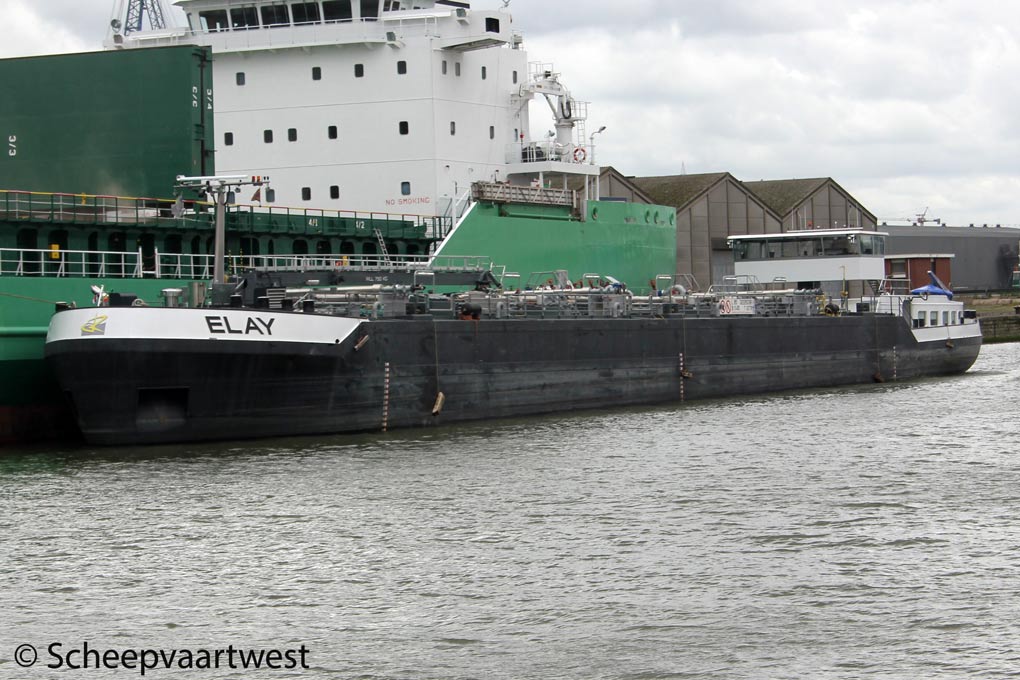

Elay 01
Antwerpen 22 May 2013

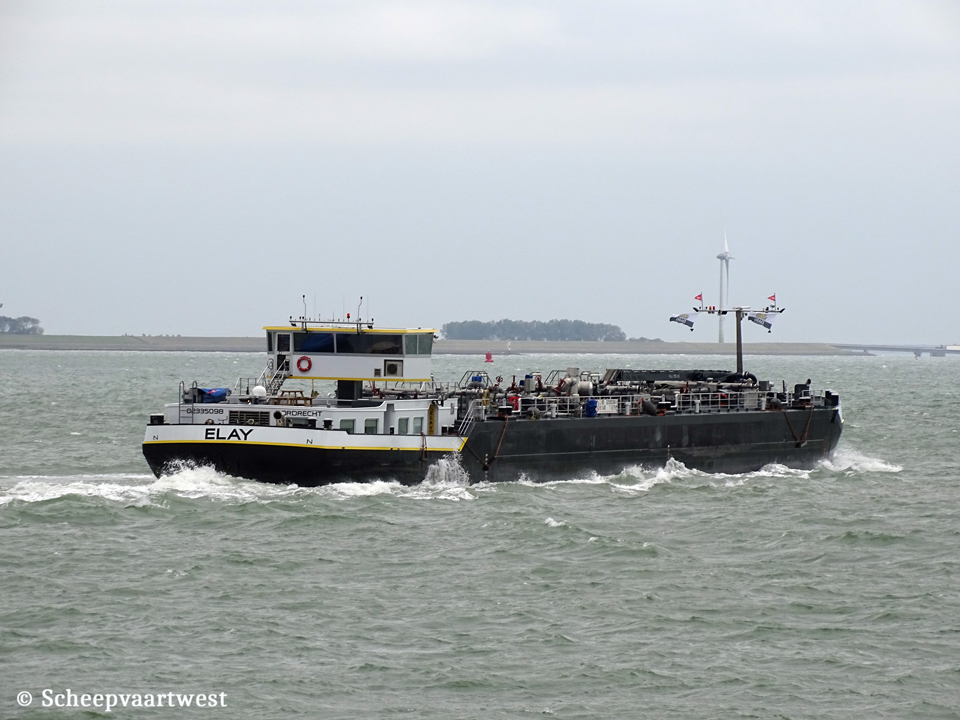

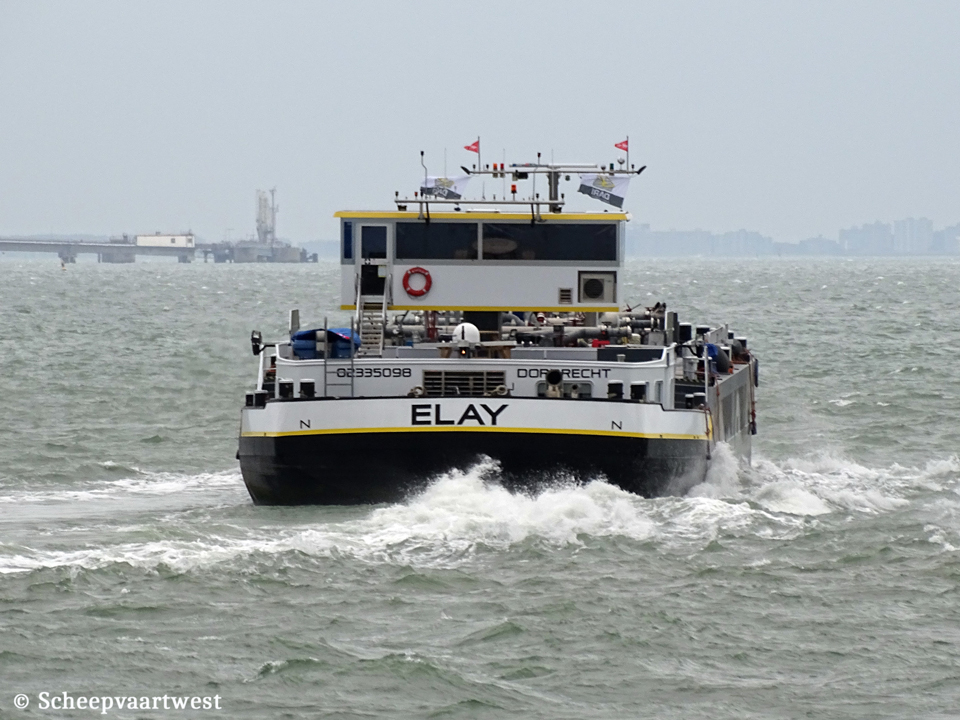

Elay ENI 02335098 02   Elay ENI 02335098 03
Westerschelde 03/06/20 Westerschelde 03/06/20


Name

ELAY

Type

Chemical tanker, Inland waterways

ENI-number

02335098

IMO-number

9642980

Flag

The Netherlands

Port of registry

Dordrecht

Tonnage

2.243 t

Length

86,00 m

Breadth

11,45 m

Draught

3,80 m

Depth

5,38 m moulded

Built

2012

Gate of completion

14/09/2012

Builder casco

Kladovo Shipyard (Rhine-Danube d.o.o.)

Kladovo

Serbia

Yard number: 59

Builder completion

Trico Shipyard BV

Rotterdam

The Netherlands

Hull material

Steel

Number of decks

1

Main engine

1x Mitsubishi S12R-C2MPTK - 12 cylinder combustion engine 940 kW / 1.278 hp

Propellers

1

Generators

2x John Deere, type 6068HFG82 diesel engines connected with Stamford HCM434 generators each 215 kVA

1x John Deere, type 4045HFG82 diesel engine connected with Stamford UCM274 generator 81,5 kVA

Bow thruster

1x John Deere type 6135AFM75 / Verhaar Omega-Jet - 507 hp

Tank capacity

2.614 m³

Pump capacity

2x Bornemann loading pump type HC232 each 350 m³/h

1x Bornemann loading pump - 250 m³/h

1x Bornemann slob pump type W4 - 25 m³/h

Operator

Scheepvaartbedrijf Dari BV

Aventurijn 300

3316 LB Dordrecht

The Netherlands

Registered owner

Elay BV

Aventurijn 300

3316 LB Dordrecht

The Netherlands

Latest data adjustment

10 June 2012
