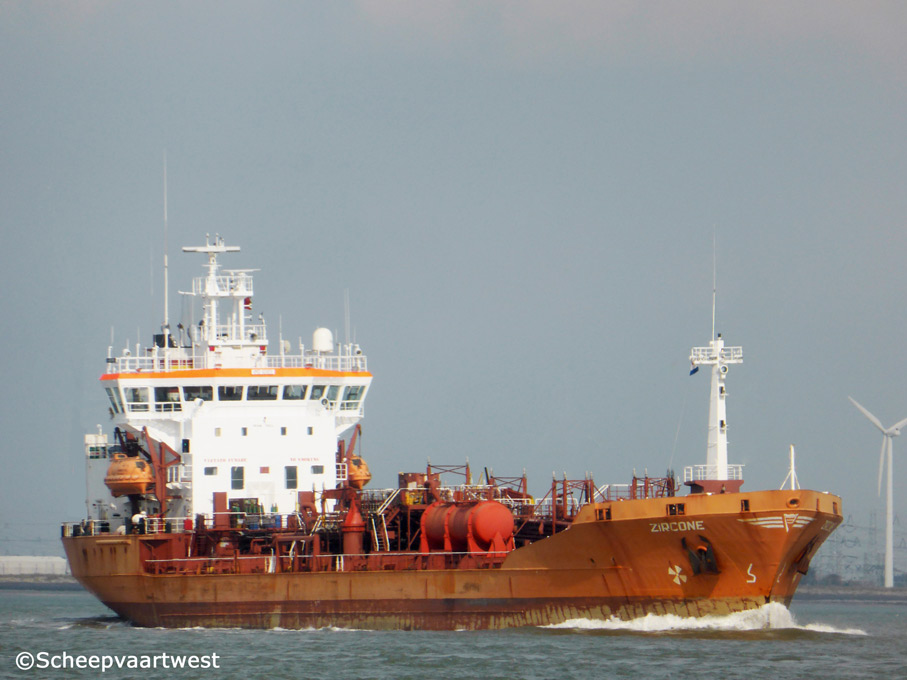

| Westerschelde 27 July 2014 |
 |
 |
|

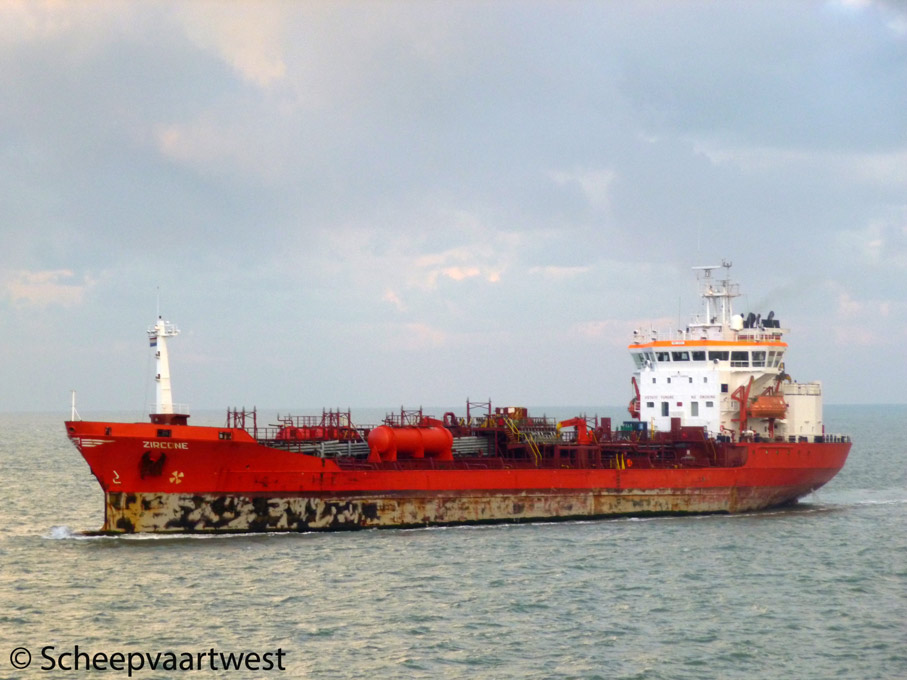

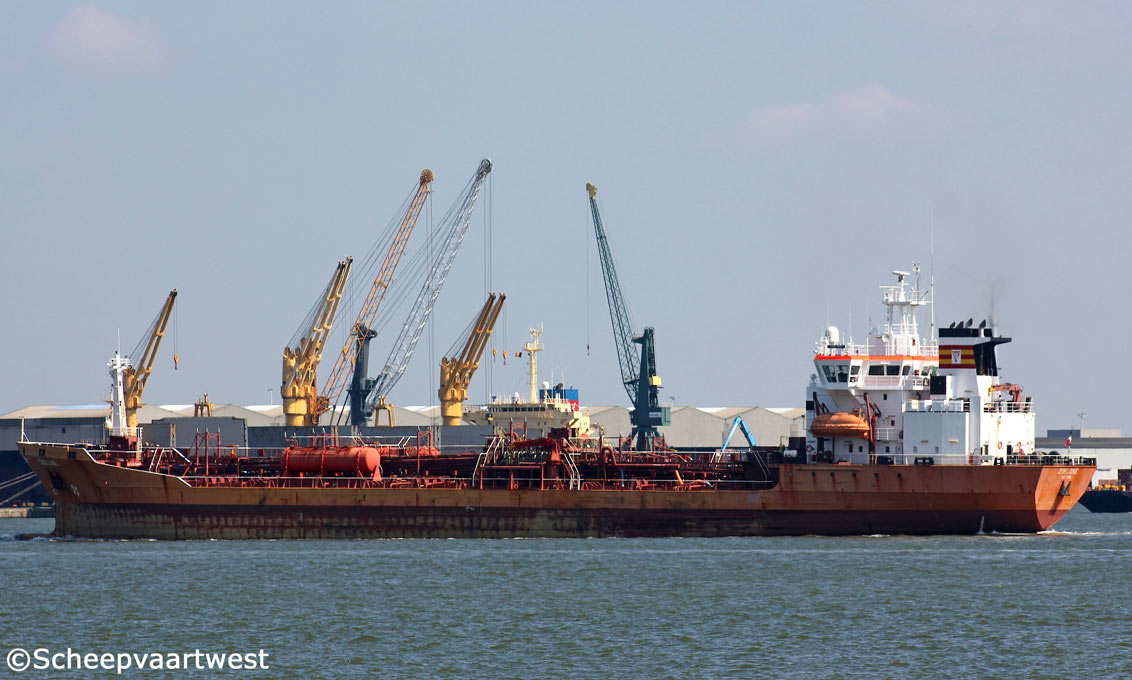

| Westerschelde 14/10/12 | Antwerpen 27/08/14 | |
|
Name |
ZIRCONE |
|
Type |
Chemical / oil products tanker |
|
IMO-number |
9010929 |
|
Classification |
Registro Italiano Navalle |
|
Call sign |
ICSZ |
|
Flag |
Italy |
|
Port of registry |
Savona |
|
GT |
5.045 t |
|
DWT |
8.091 t |
|
NT |
2.469 t |
|
Length |
126,86 m overall 114,35 m between perpendiculars |
|
Breadth |
17,22 m moulded |
|
Draught |
Summer: 7,10 m |
|
Depth |
9,00 m moulded |
|
Speed |
13,0 knots |
|
Built |
1993 |
|
Date of completion |
02.1993 |
|
Builder casco |
Fincantieri-Cantieri Navali Italiani S.p.A. Yard number: 5933 |
|
Builder completion |
Nuovi Cantieri Apuania S.p.A. Marina di Carrara Italy Yard number: 1158 |
|
Hull material |
Steel |
|
Main engine |
1x Wärtsilä 12V32BC - 4 stroke single acting diesel engine - 4.080 kW at 750 rpm |
|
Propellers |
1 |
|
Boilers |
2x Thermal oil boiler each - 3.000.000 Kcal/h 1x Exhaust gas boiler - 520.000 Kcal/h |
|
Shaft generator |
2x Wärtsilä 4R22 HF-D single action diesel generatorsets 700 kW at 1.200 rpm |
|
Generators |
2x Single acting diesel engine each 700 kW at 1.200 rpm |
|
Bow thruster |
1x Brunvoll SPF 5 - 500 hp at 423 rpm |
|
Number of compartments |
18 tanks + 2 slop decks tanks (abt 50 m³ each) |
|
Total capacity 100% |
8.700 m³ |
|
Cargo pumps |
14x Deepwell hydraulic driven 175 m³/h each 4x Deepwell hydraulic driven 100 m³/h each 1x Portable spare pump 70 m³/h 2x Deepwell hydraulic driven for deck tank 20 m³/h each Builder: Termomeccanica Italiana SpA, La Spezia - Italy |
|
Tank capacities |
HFO: 140 m³ MDO: 60 m³ |
|
Manager |
Finbeta Spa |
|
Registered owner |
Finbeta Spa |
|
Last update |
14.04.2013 |
