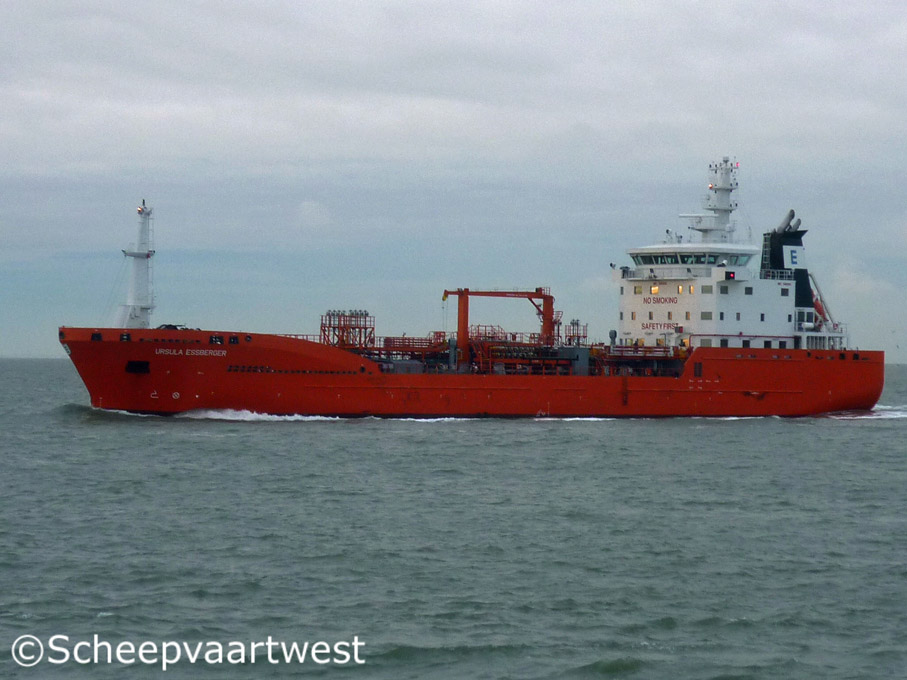

Ursula Essberger 02
Westerschelde 14 December 2011

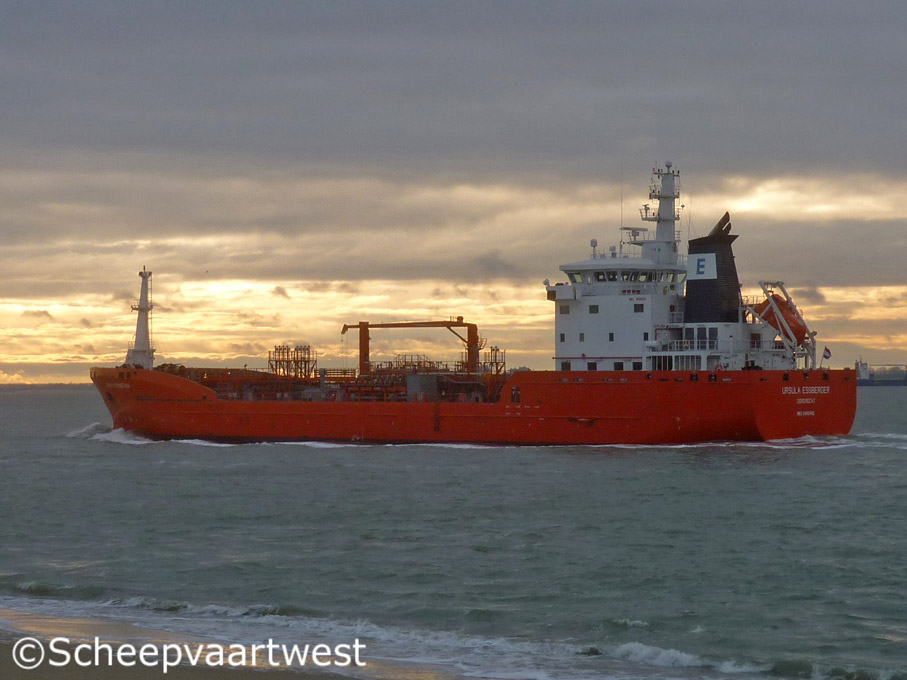

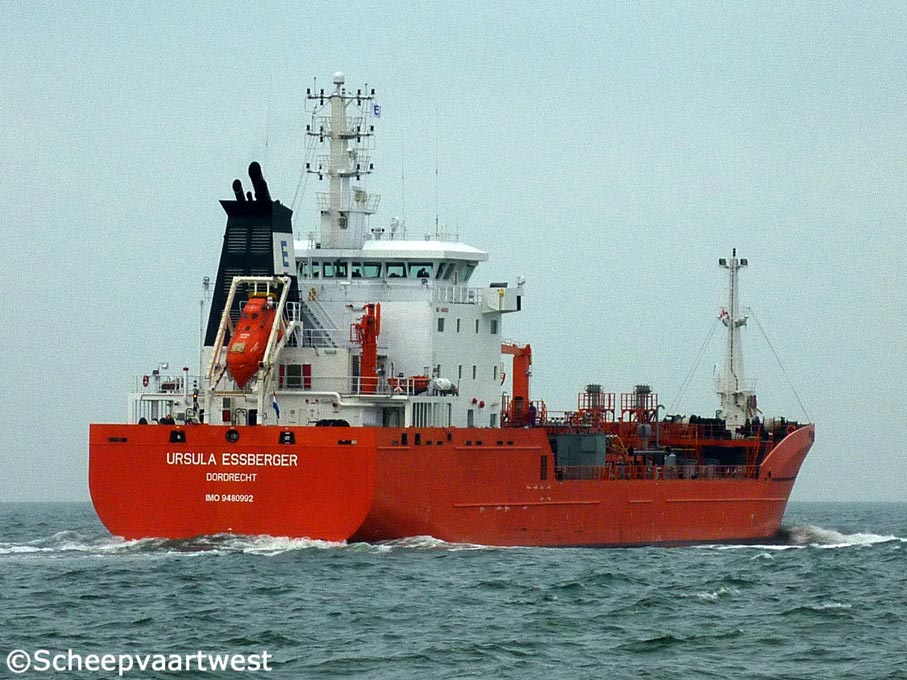

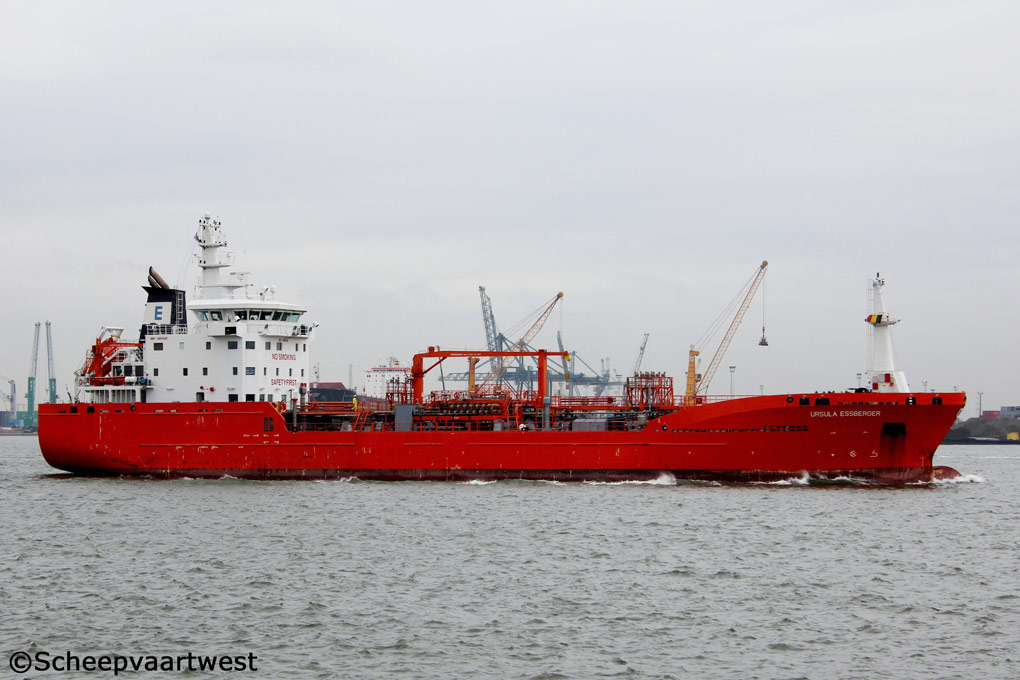

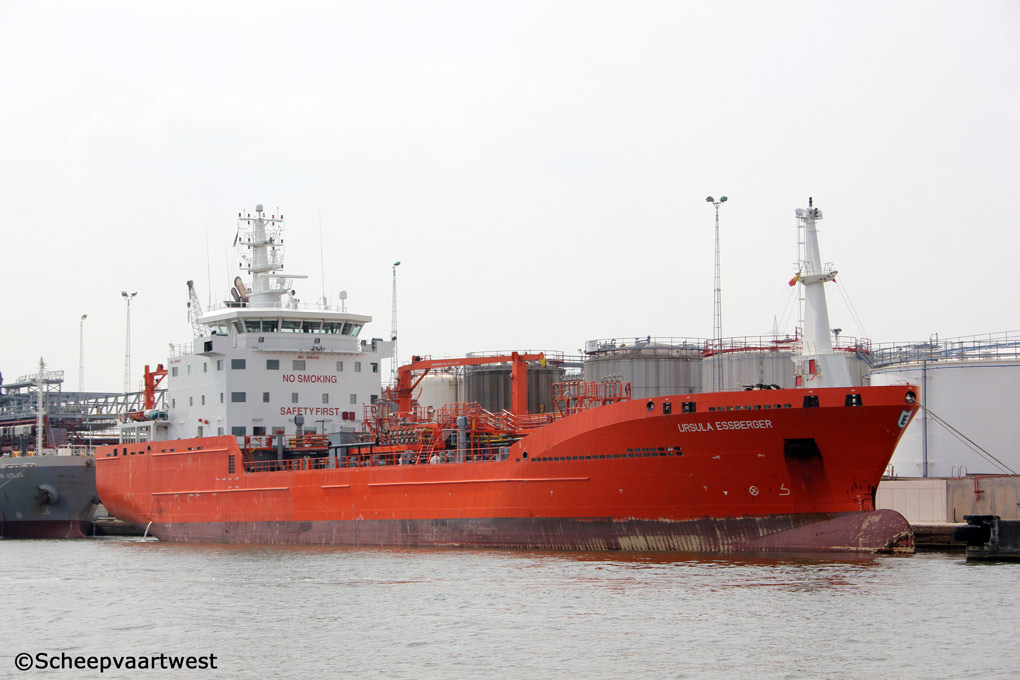

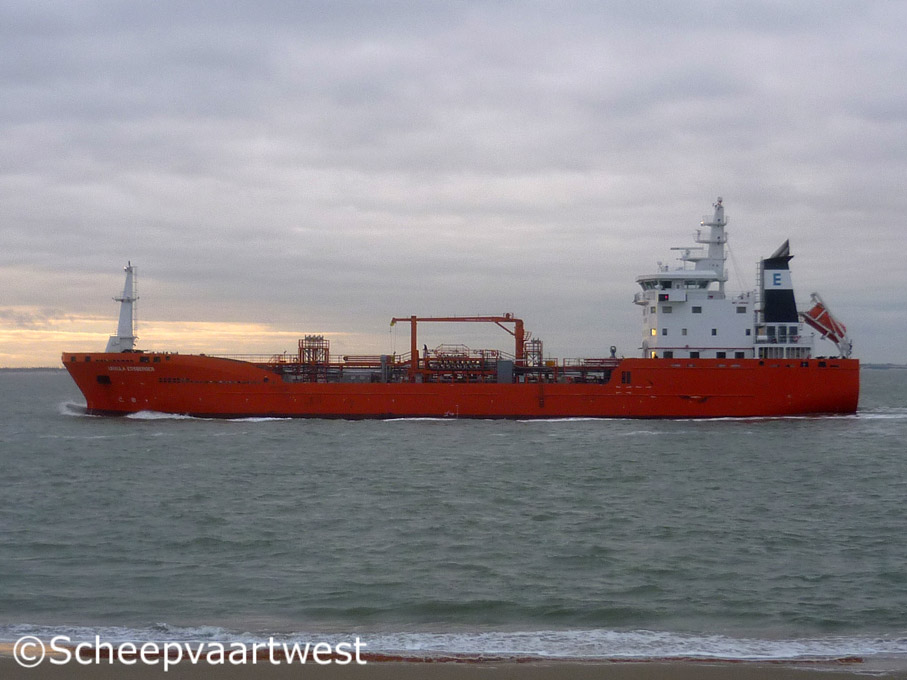

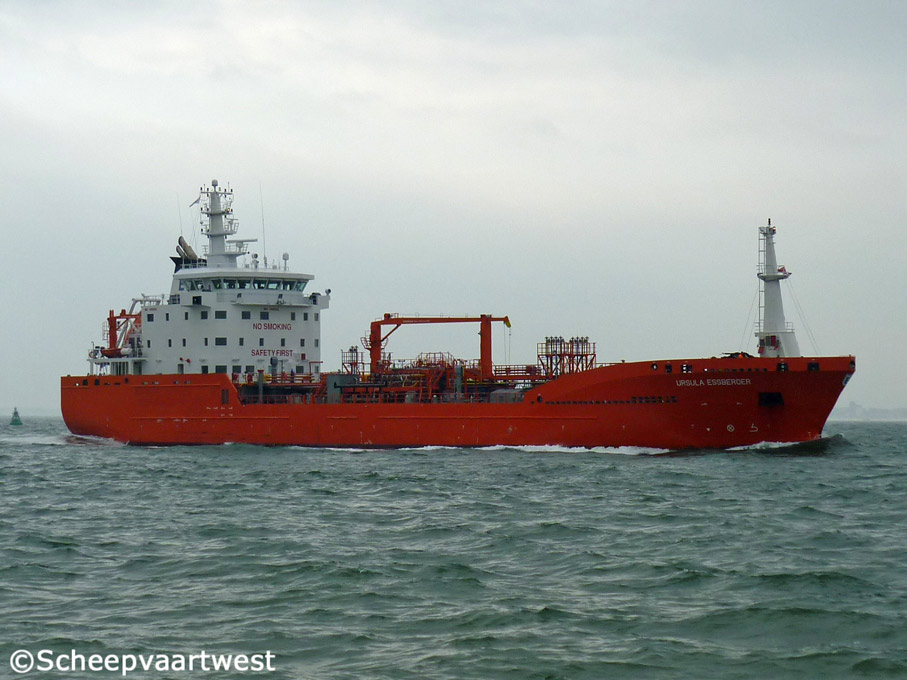

Ursula Essberger 05   Ursula Essberger 07   Ursula Essberger 09   Ursula Essberger 11   Ursula Essberger 13   Ursula Essberger 14
Westerschelde 14/12/11 Westerschelde 14/12/11 Westerschelde 10/09/12 Westerschelde 10/09/12   Antwerpen 04/05/14   Antwerpen 24/10/14

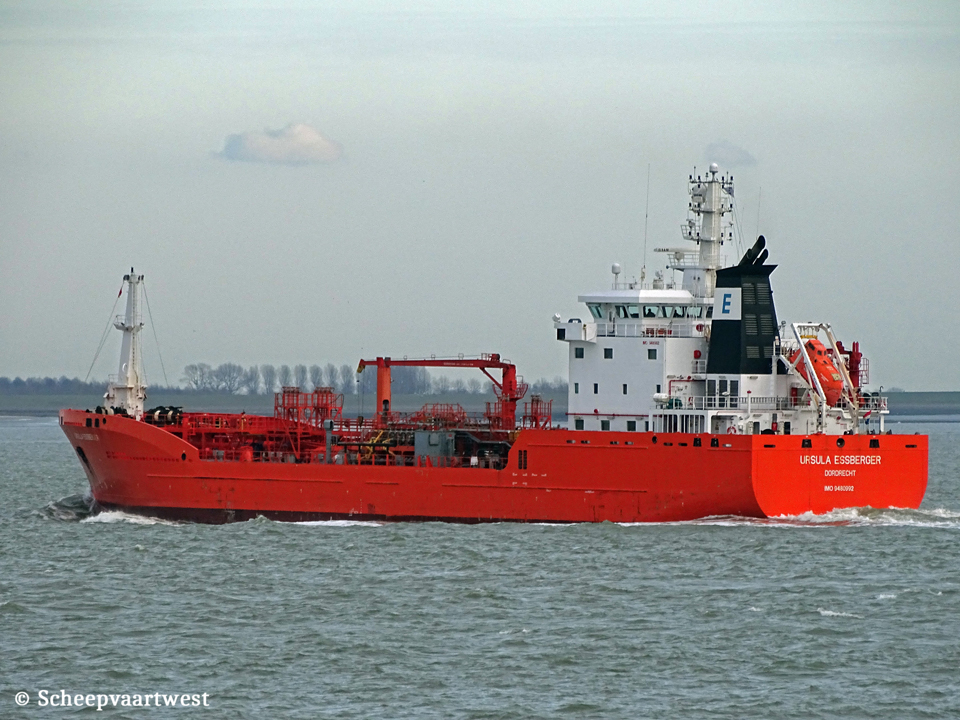

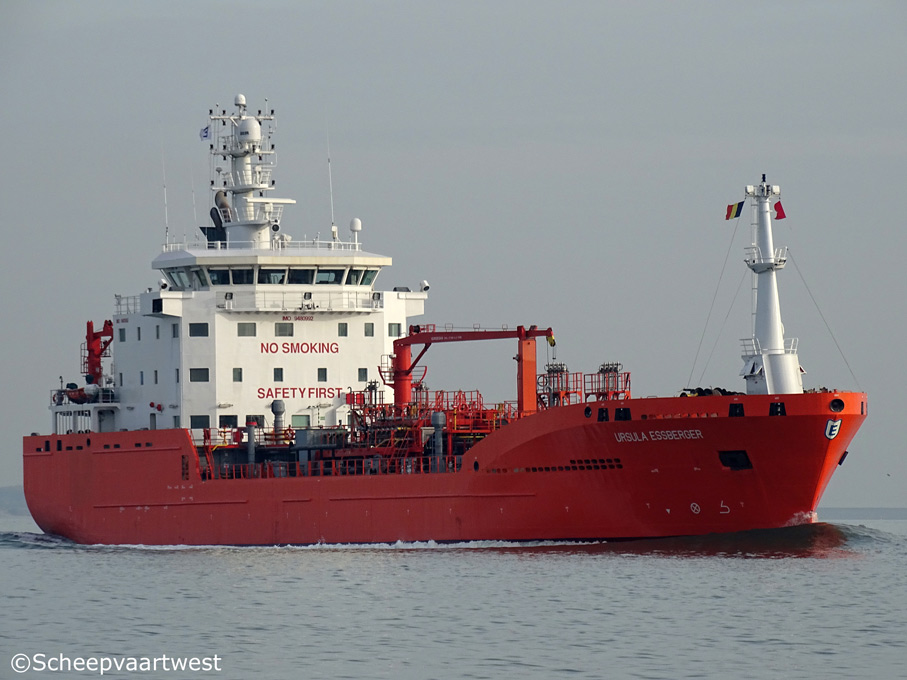

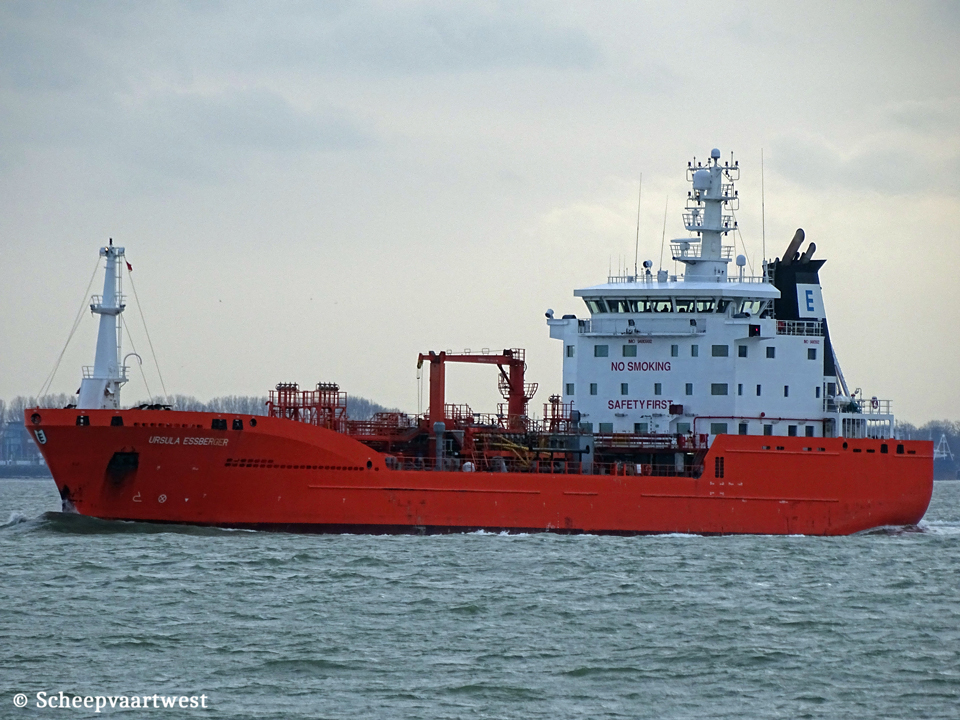

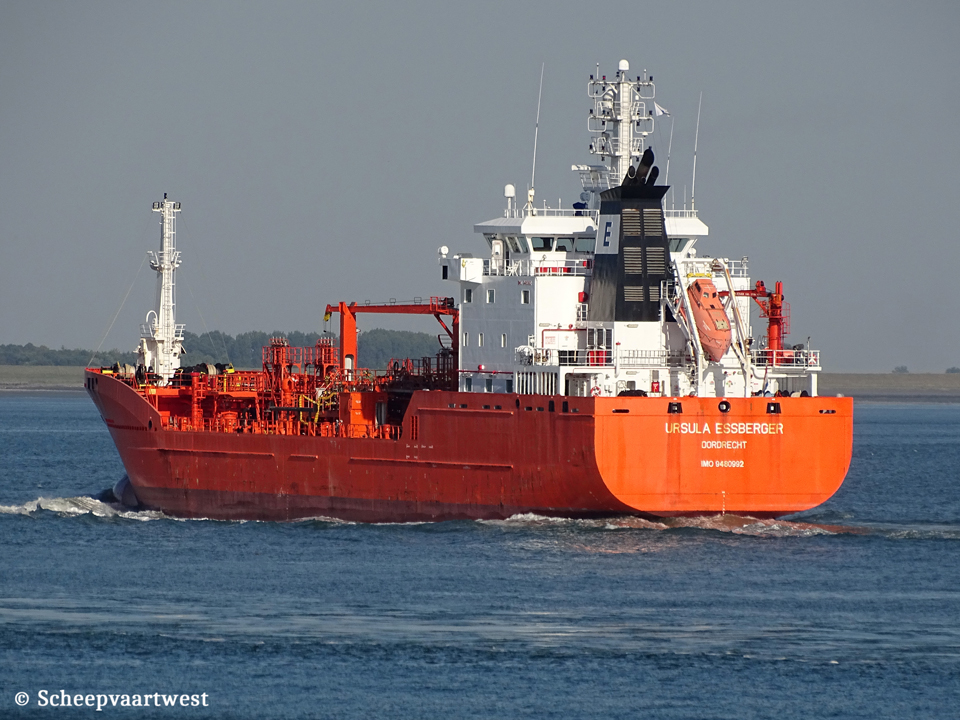

Ursula Essberger 16   Ursula Essberger IMO 9480992 17   Ursula Essberger IMO 9480992 18   Ursula Essberger IMO 9480992 19
Westerschelde 30/10/16   Westerschelde 30/07/20   Westerschelde 10/02/18   Westerschelde 10/02/18


Name

URSULA ESSBERGER

Type

Oil tanker / Chemical tanker

IMO-number

9480992

Call sign

PCMM

Flag

The Netherlands

Port of registry

Dordrecht

GT

4.807 t

DWT

Summer: 5.322 t

NT

1.442 t

Length

99,40 m overall

93,70 m between perpendiculars

Breadth

17,20 m moulded

17,39 m extreme

Draught

Max.: 7,00 m

Keel to mast end

34,60 m

Freeboard

3.509 mm

Depth

10,60 m

Speed

14,1 knots

Built

2011

Keel laid

25/12/2008

Launch date

01/07/2011

Date of completion

26/09/2011

Builder

Medmarine Kilavuzluk Ve Romorkaj Hizmetleri Insaat Sanayi Ve Tic. A.S.

Istanbul

Turkey

Yard number

25

Hull material

Steel

Hull type

Double hull

Number of decks

1

Main engine

1x Wärtsilä 8L32/40CD - 4 stroke single acting 8 cylinder 320 x 400 mm combustion engine 4.000 kW / 5.435 bhp at 750 rpm

Built: 23/09/2008

Builder: STX Engine Co., Ltd. - South Korea

Propeller

1x Controllable pitch propeller

Boilers

2x CHO Aalborg Industries 57,00 m² - 13,0 bar

1x CHR Aalborg industries 118,00 m² - 10,0 bar

Generators

3x Diesel generatorsets each 775 kVA - 620 kW - 842 hp

Bow thruster

1x Tunnel thruster 221 kW / 300 bhp, forward

Number of tanks

12

Cargo tanks capacity

6.141 m³

Number of pumps

12x Cargo pimps each 150 m³/h

Tank capacities

Fuel oil: 356 m³

Diesel oil: 64 m³

Ballast: 2.557 m³

Crew size

12

ISM & commercial manager

John T. Essberger G.m.b.H. & Co. K.G.

Palmaille 45

22767 Hamburg

Germany

Previous manager

09/2001 - 09/2016 Essberger Tankers (John T. Essberger B.V.), Dordrecht - The Netherlands

Registered owner

Ursula Essberger Tankreederei G.m.b.H. & Co. K.G., Care of John T Essberger GmbH & Co KG

Palmaille 45

22767 Hamburg

Germany

Previous owner

09/2001 - 09/2016 Ursula Essberger B.V., Dordrecht - The Netherlands

Latest data adjustment

02 July 2022
