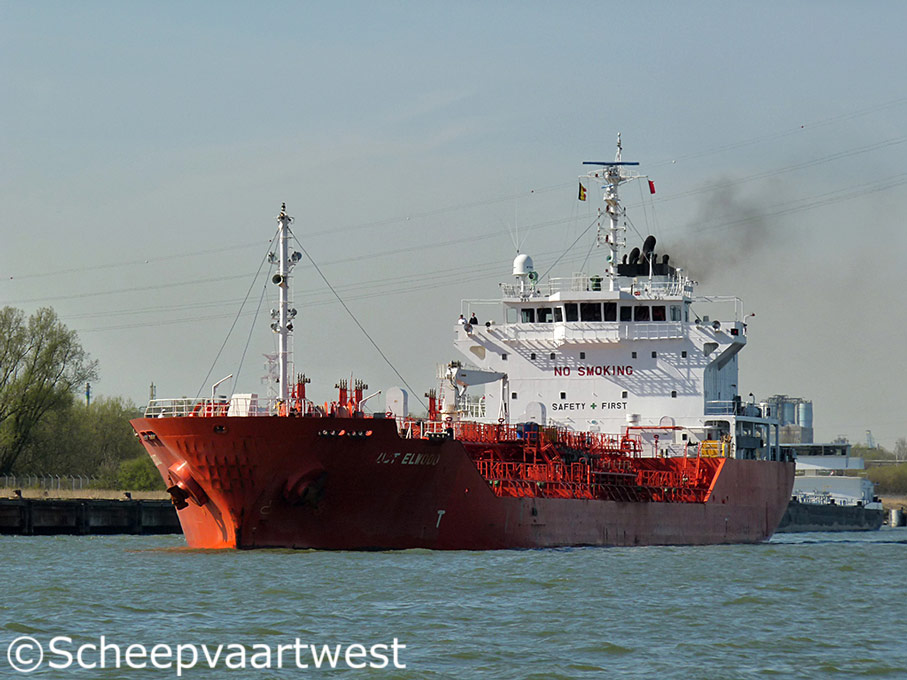

UCT Elwood 03
Antwerpen 06 April 2010

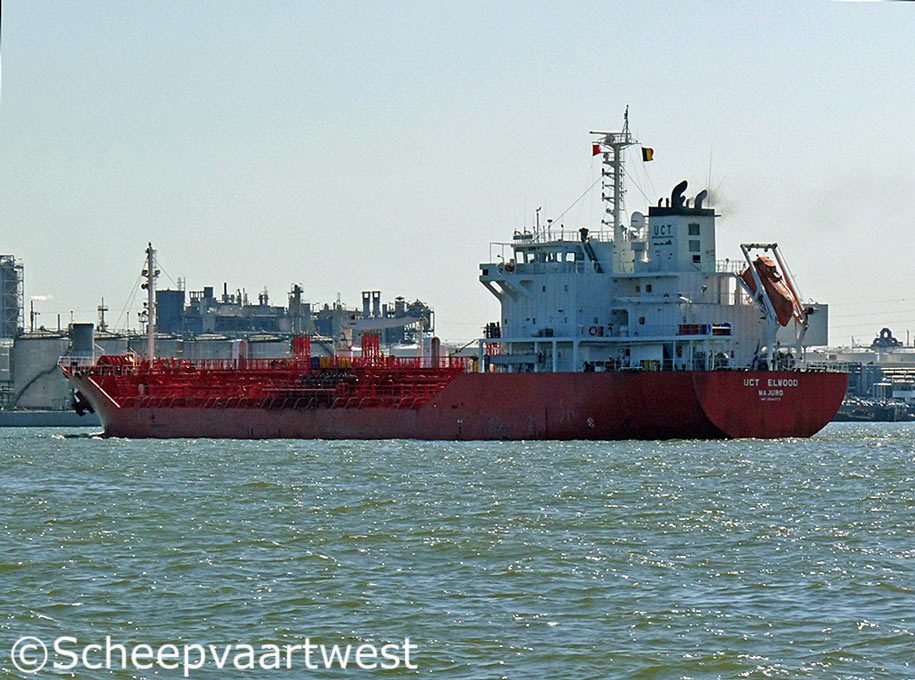

UCT Elwood 04
Antwerpen 06/04/10


Name

UCT ELWOOD

Previous names

2005 -2008 Cape Elwood

Type

Tanker for chemicals & oil products

IMO-number

9314777

Call sign

V7HW9

Flag

Marshall Islands

Port of registry

Majuro

GT

5.955 t

DWT

8.544 t

NT

2.533 t

Length

118,00 m overall

111,06 m registered

Breadth

18,80 m registered

Draught

7,35 m

Depth

9,70 m moulded

Speed

Service: 14,5 knots

Built

2005

Keel laid

28.10.2004

Launch date

14.02.2005

Date of completion

18.05.2005

Builder

Sasaki Shipbuilding Co., Ltd.
65-1 Kinoe, Osakikamijima-ch Toyota-gun
Kinoe , Hiroshima 725-0401
Japan

Yard number

651

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

11

Continuous decks

1

Main engine

1x 6 S 35MC - 2 stroke single acting 6 cylinder 350 x 1.400 mm diesel engine - 4.400 kW at 173 rpm

Year of Manufacture: 2004

Manufacturer: Hitachi Zosen Corporation Sakurajima Works
7-89, Nanko-kita 1-chome Suminoe-ku
Osaka 559-8559
Japan

Propeller

1x Solid propeller (keyless) - aft at 173 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 10,0 m²

1x Exhaust gas heated - 10,0 bar

Heating surface: 60,0 m²

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 81,0 m²

Year of manufacture: 2004

Manufacturer: Aalborg Industries B.V.
Ohmweg 8
3208 KE Spijkenisse
The Netherlands

Compressed air receiver

2x Receivers each1.200 litres - 30,0 bar

1x Receiver 150 litres - 30,0 bar

Bow thruster

1x 475 kW - aft

1x 475 kW - forward

Number of tanks

18

Capacity 98 %

8.901 m³

Cargo capacity 100%

Liquid: 9.085 m³

Largest cargo tank

894 m³

Cargo tank material

Stainless steel

Segregation

18x Full segregation

Cargo pumps

18x Submerged deep well pumps - 300/200/100 m³/h

Cargo heating

Thermal oil, up to 80 °C

Anchor Equipment

3x Anchors weight each 3.540 kg
Chain length: 522,50 m

Crew size

17

Manager

Columbia Shipmanagement (Deutschland) GmbH
Große Elbstr. 275
22767 Hamburg
Federal Republic of Germany

Operator

UCT United Chemical Transport GmbH
Gasstr. 4
22761 Hamburg
Germany

Owner

UCT Elwood Marine Co. Ltd.
Trust Company Complex Ajeltake Road Ajeltake Island
Majuro , MH 96960
Republic of the Marshall Islands
