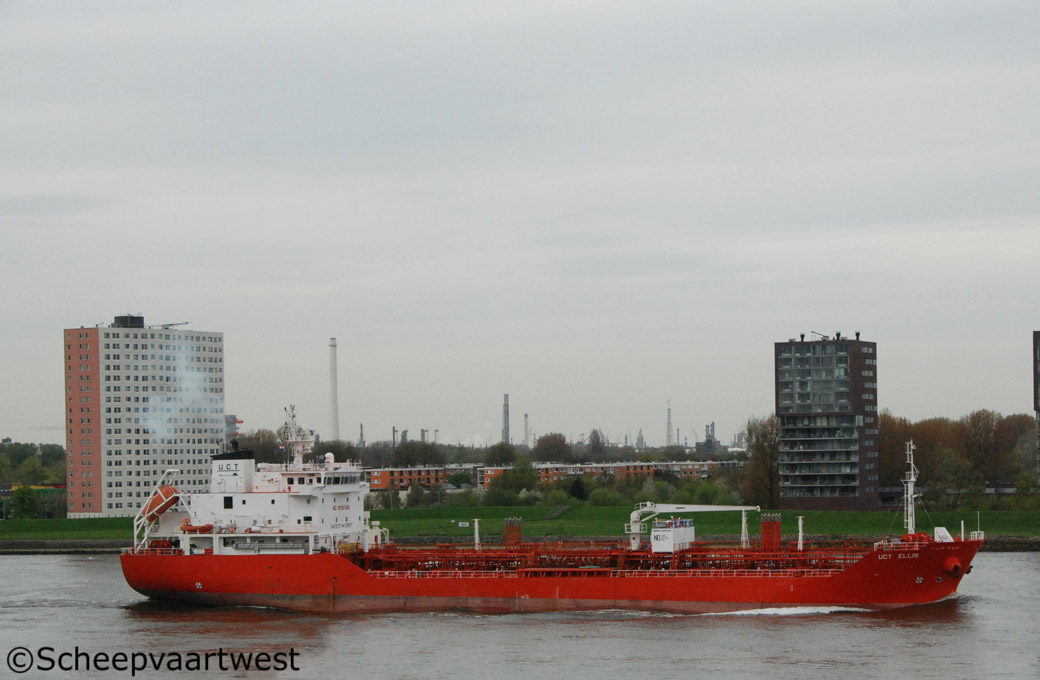

UCT Ellis 01
Spijkenisse, The Netherlands 13 April 2011


Name

UCT ELLIS

Previous names

2005 - 2008 Cape Ellis

Type

Tanker for oil and chemicals

IMO-number

9295440

Call sign

V7IP5

Flag

Marshall Islands

Port of registry

Majuro

GT

5.815 t

DWT

8.657 t

NT

2.541 t

Length

115,00 m overall

108,18 m registered

Breadth

18,80 m registered

Draught

7,40 m

Depth

9,70 m moulded

Speed

14,0 knots

Built

2005

Keel laid

24.12.2004

Launch date

08.04.2005

Date of completion

28.07.2005

Builder

INP Heavy Industries Co., Ltd.
175-1 Pang-o-dong, Tong-gu
Ulsan, 662-020 Kyongsang-namdo
Republic of Korea

Yard number

H1135

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

10

Continuous decks

1

Main engine

1x MAN-B&W 6S35MC - 2 stroke 6 cylinder 350 x 1.400 mm diesel engine - 4.440 kw at 173,0 rpm

Year of manufacture: 2005

Manufacturer: Hyundai Heavy Ind. Co., Ltd.
1, Cheonha-dong, Dong-gu
Ulsan, 682-792 Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 173 rpm

Boilers

1x Steam boiler, oil fired - 7,8 bar

1x Exhaust gas heated - 7,8 bar

Heating surface: 101,10 m²

Heating surface: 19,7 m²

Year of manufacture: 2004

1x Steam boiler, oil fired - 9,8 bar

Heating Surface: 88,2 m²

Year of manufacture: 2005

Manufacturer: Miura Co., Ltd.
7, Horie
Matsuyama, 799-2696 Ehima-ken
Japan

Electric installation

3x Plants each 440 V - 700 kVA

1x Plant 440 V - 100 kVA

Generators

3x Main diesel generatorsets each 700 kVA

Emergency generator

1x Diesel generatorset 100 kVA

Compressed air receivers

2x Receivers each 1.000 litres - 30,0 bar

1x Receiver 100 litres - 30,0 bar

1x Receiver 80 litres - 7,7 bar

Bow thruster

1x 475 kW - aft

1x 475 kW - forward

Number of cargo tanks

18

Liquid cargo capacity

9.139 m³

Fuel oil capacity

583 m³

Anchor equipment

3x Anchors weight each 3.540 kg

Chain length: 522,50 m

Crew size

19

Manager

Columbia Shipmanagement (Deutschland) GmbH

Owner

UCT Ellis Maritime Co Ltd.

Renamed

04.2011 Wilhelmine Essberger
