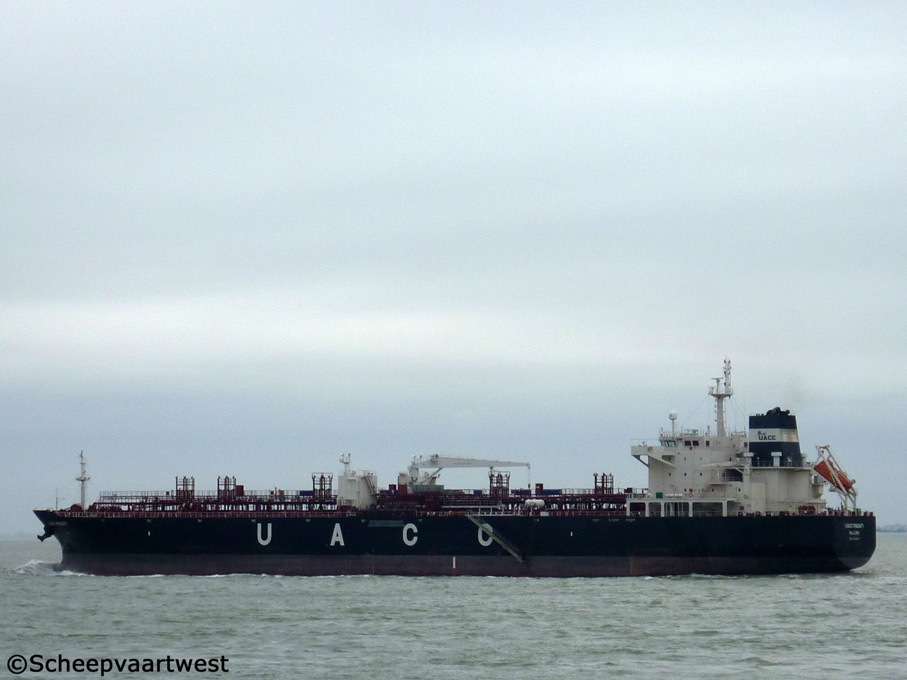

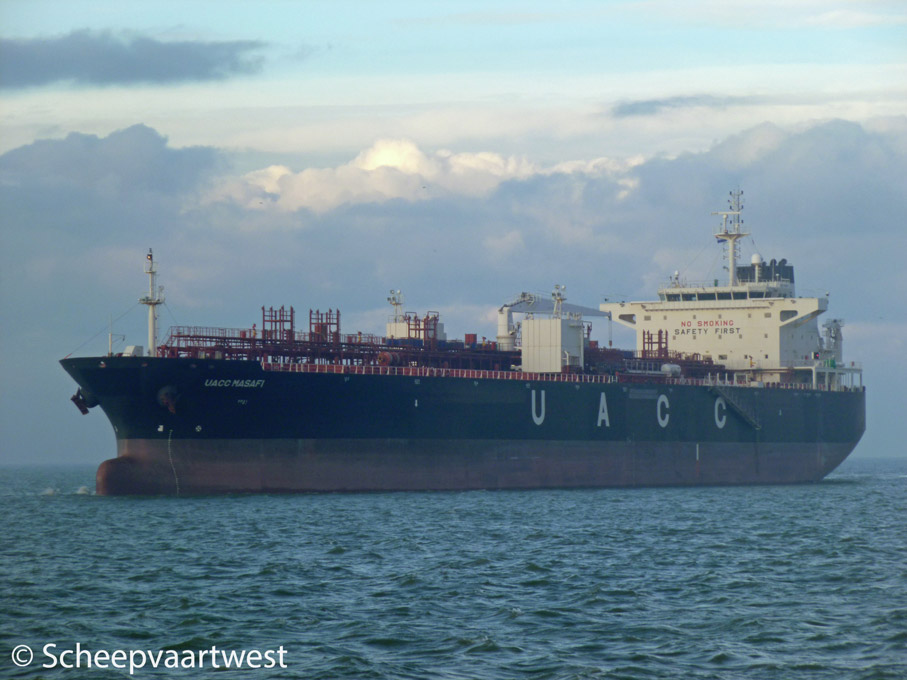

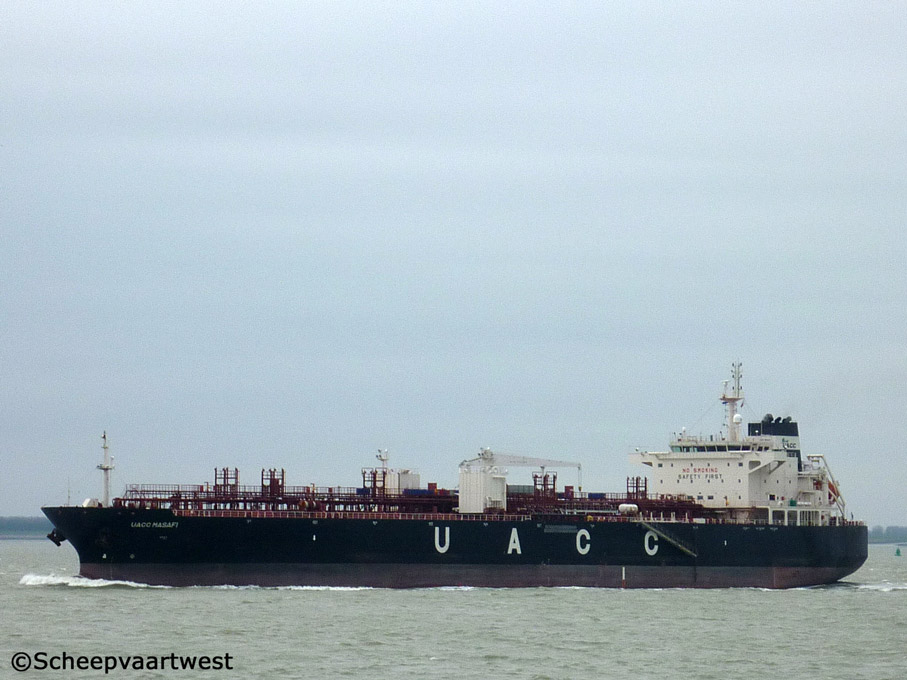

Westerschelde 25 January 2014 |
 |
 |
|
| Westerschelde 25/01/14 | Westerschelde 01/12/12 | |
|
Name |
UACC MASAFI |
|
Type |
Tanker for chemicals & Oil products |
|
IMO-number |
9489065 |
|
Call sign |
V7TO8 |
|
Flag |
Marshall Islands |
|
Previous flag |
Saudi Arabia |
|
Port of registry |
Majuro |
|
GT |
29.279 t |
|
DWT |
45.352,43 t |
|
NT |
11.678 t |
|
Length |
183,00 m overall 175,91 m between perpendiculars |
|
Breadth |
32,23 m extreme |
|
Draught |
12,15 m |
|
Air draft |
Lightship: 44,90 m Normal ballast: 39,55 m |
|
Keel to masthead |
47,60 m |
|
Freeboard |
Summer: 6.764 mm Winter: 7.017 mm Tropical: 6.510 mm |
|
Depth |
18,90 m moulded |
|
Built |
2012 |
|
Keel laid |
11.03.2011 |
|
Launch date |
15.06.2011 |
|
Date of completion |
22.08.2012 |
|
Builder |
ShinaSB Yard Co., Ltd. |
|
Yard number |
S544 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN 6S50MC-C diesel engine Builder: MAN Diesel A/S |
|
Propellers |
1x Fixed pitch |
|
Boilers |
1x Auxiliary boiler, vertical shell type FMB-VM-15/7 1x Auxiliary boiler, vertical shell type FMB-VM-15/7 1x Auxiliary boiler, composite (Composity) CMB-VS-2.0+1.3/7 Builder: Saacke VKK Marine Boilers in Kiel, Germany |
|
Generators |
2x Diesel generatorsets 6H21/32 1x Diesel generatorset 5H21/32 Builder: Hyundai Heavy Industries Co., Ltd. |
|
Bow thruster |
1.000 hp / 745,70 kW, forward |
|
Number of tanks |
22 - Including slops |
|
Tank capacity 98% |
Each natural segregation with double valve (specify tanks): Seg#1: 2.914,422 m³ (1W) Seg#2: 4.551,904 m³ (2W) Seg#3: 5.303,956 m³ (3W) Seg#4: 5.515,048 m³ (4W) Seg#5: 5.515,048 m³ (5W) Seg#6: 5.515,048 m³ (6W) Seg#7: 5.515,048 m³ (7W) Seg#8: 5.515,048 m³ (8W) Seg#9: 5.515,048 m³ (9W) Seg#10: 4.952,724 m³ (10W) Seg#11: 8.73,376 m³ (SLOP P) Seg#12: 8.78,962 m³ (SLOP S) |
|
Total cubic capacity 98% |
50.813,294 m³ excluding slop tanks |
|
Slop tanks capacity 98% |
1.752,338 m³ |
|
Segregation |
22 |
|
Cargo pumps |
12x Centrifugal each 500 m³/h 8x Centrifugal each 360 m³/h 2x Centrifugal each 300 m³/h |
|
Ballast pumps |
2x Centrifugal each 800 m³/h |
|
Max loading rate |
3.000 m³/h |
|
Manifolds |
Bow to centre manifold: 94,94 m Stern to centre manifold: 88,06 m Distance bridge front to centre of manifold: 52,86 m Distance between cargo manifold centres: 580 mm Distance ships rail to manifold: 4.420 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 801 mm Distance main deck to centre of manifold: 2.088 mm |
|
Anchor equipment |
Length: 632,5 m Diameter: 73 mm |
|
Lifting equipment |
1x Crane - SWL 15,0 t - outreach 10,30 m |
|
Manager |
Selandia Ship Management (India) Pvt Ltd R-102,Remi Biz Court, Plot No 9,Shah Industrial Estate, Veera Desai Road, Andheri (W) |
|
Operator |
United Arab Chemical Carriers Ltd. Level 23, Suite 08 Emirates Financial Towers (South) Dubai International Financial Centre Sheikh Zayed Road Dubai |
|
Owner |
UASC - United Arab Chemical Carriers |
|
Registered owner |
Masafi Tankers Inc. Arias B. & Associates (Resident Agents) 15th Floor, Banco General Tower Aquilino De La Guardia Street Marbella, Panama City |
|
Last update |
24.02.2012 |
