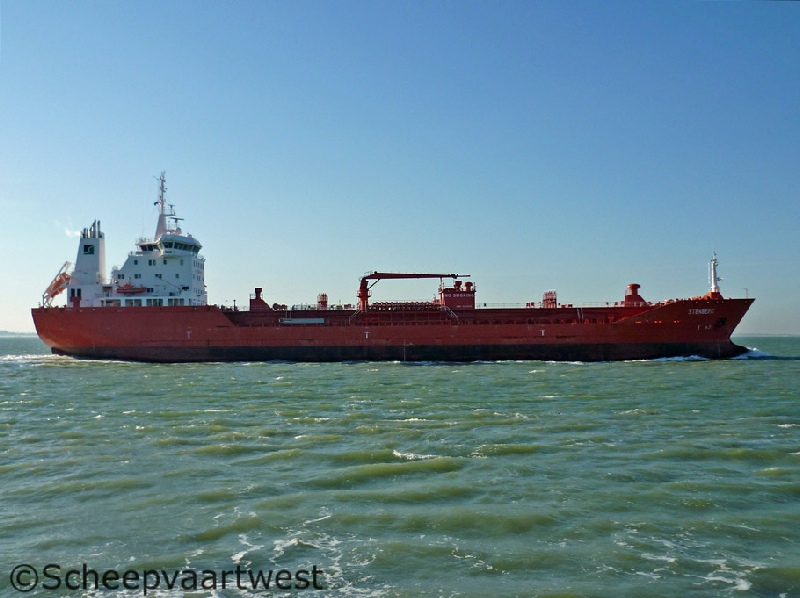

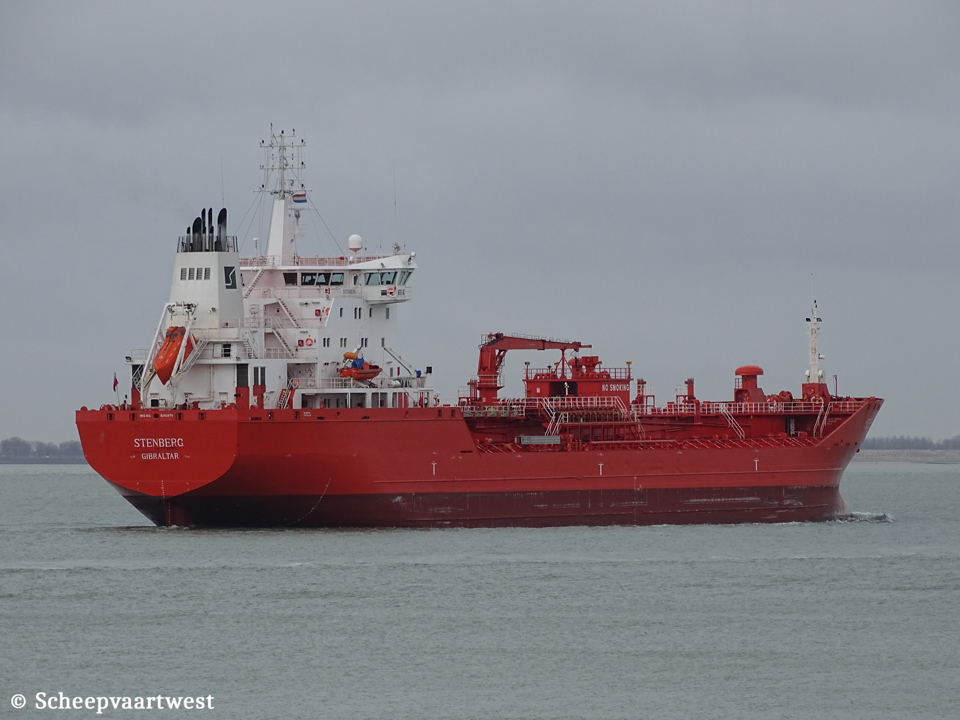

Stenberg 01
Westerschelde 21 October 2011

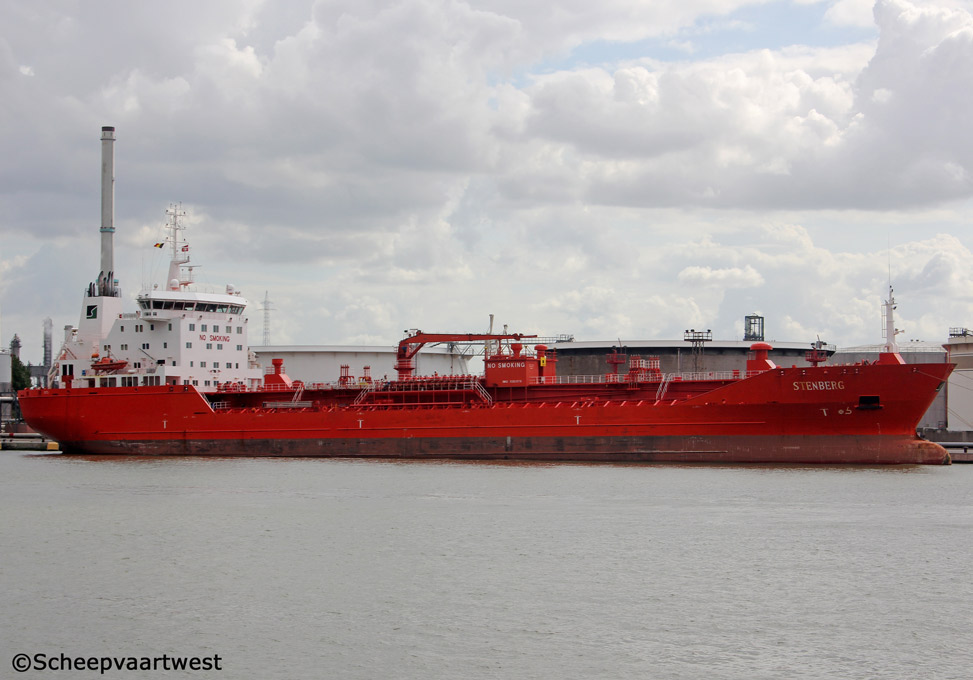

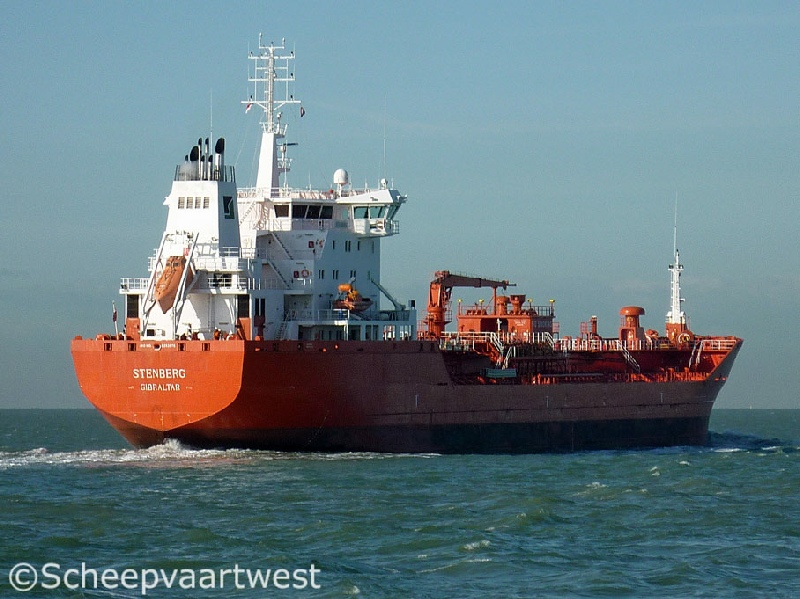

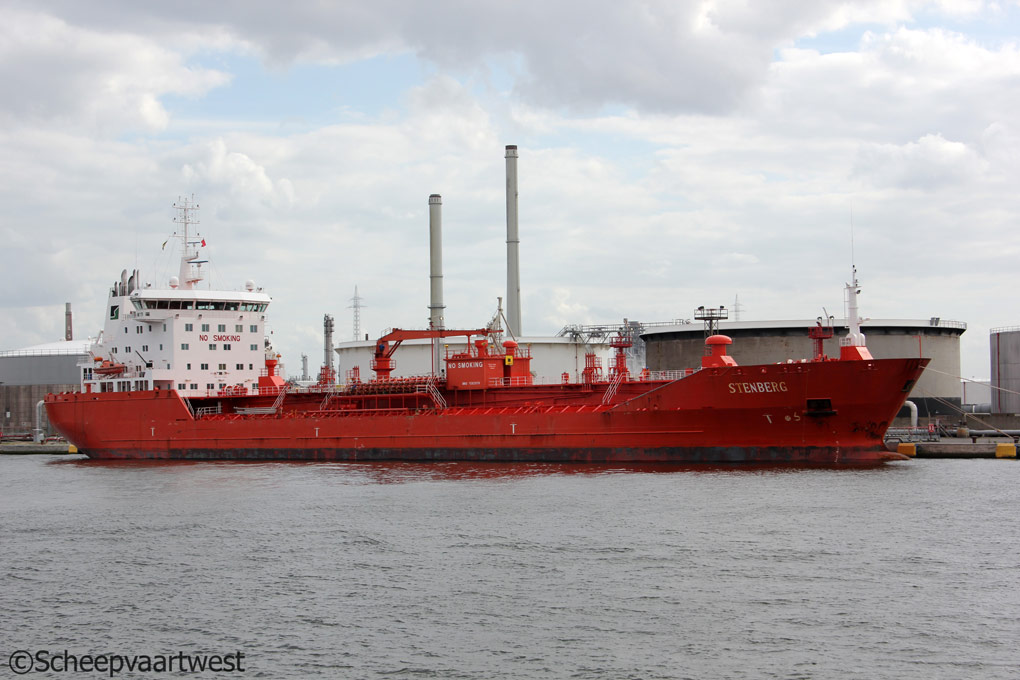

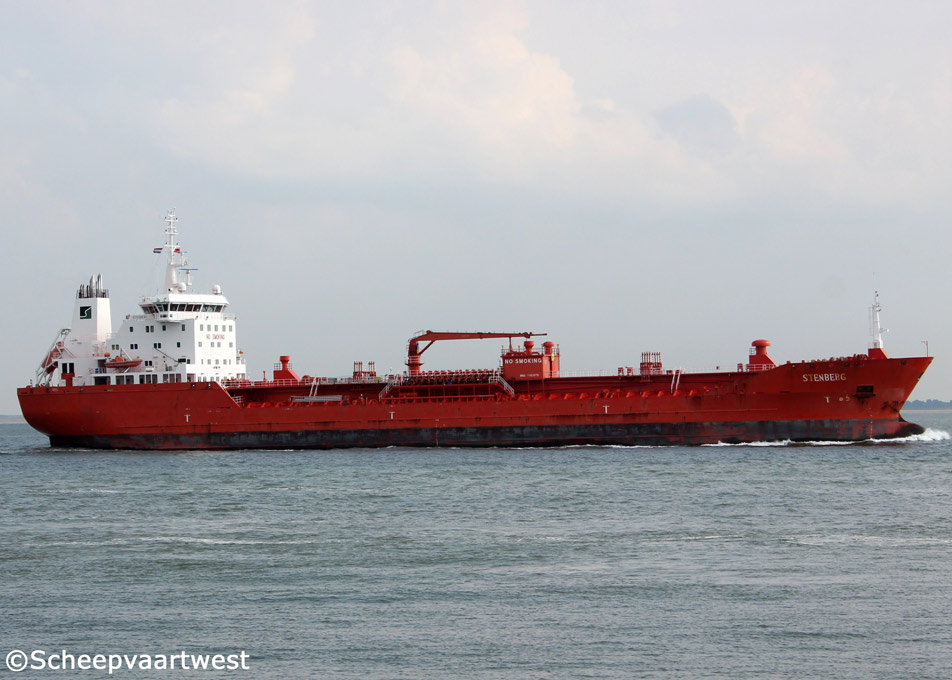

Stenberg 05   Stenberg 06   Stenberg 08   Stenberg 09
21/10/11   Antwerpen 16/08/12   Westerschelde 20/08/13   Antwerpen 07/05/15

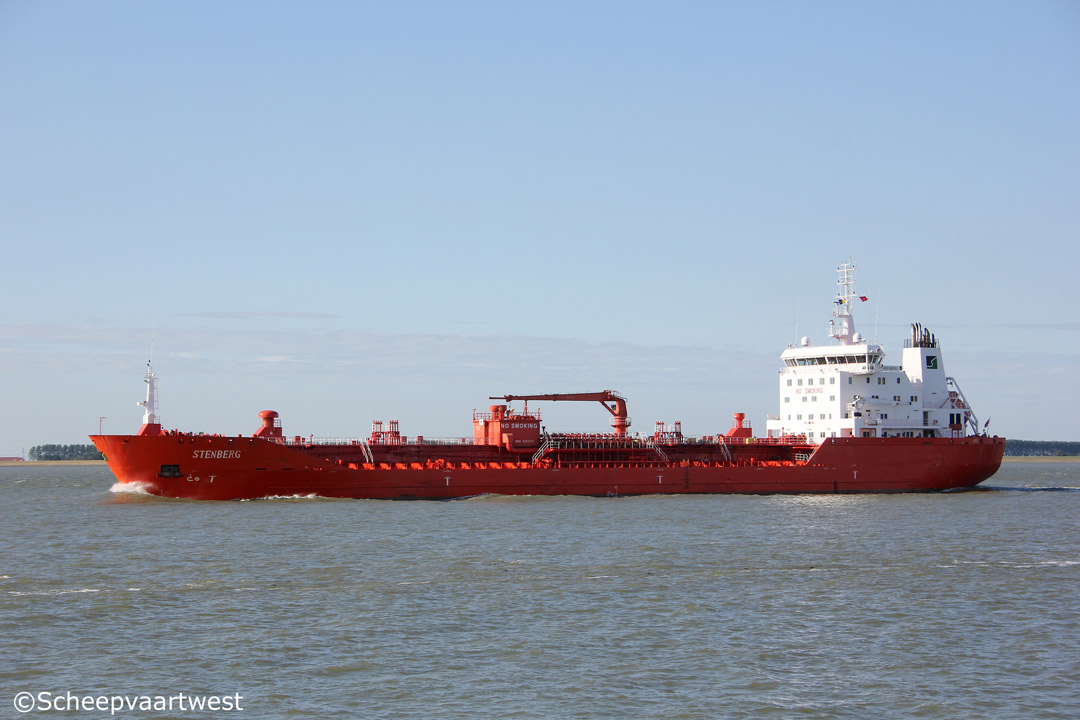

Stenberg 10
Westerschelde 19/07/15



Name

STENBERG

Type

Tanker for oil and chemicals

IMO-number

9283978

Call sign

ZDGA3

Flag

Gibraltar

Previous flag

2003 - 2003 Norway

Port of registry

Gibraltar

GT

11.935 t

DWT

Summer: 16.626 t

NT

5.133 t

Suez: 9.645,97 t

Length

144,05 m overall

134,53 m between perpendiculars

Breadth

23,15 m extreme

Draught

8,90 m

Keel to top of mast

44,50 m

Depth

12,40 m

Speed

Service: 14,0 knots

Built

2003

Keel laid

10.11.2002

Launch date

17.04.2003

Date of completion

20.11.2003

Builder

Jiangnan Shipyard (Group) Co., Ltd.
Feng Chan Village, Chang Xing Town Chongmin County
Shanghai
China

Yard number

H2296

Hull material

Steel

Hull type

Double hull

Trans. bulkheads

8

Long. bulkheads

1

Main engine

1x Wärtsilä 6L46C diesel engine - 6.300 kW at 500 rpm

Propeller

1x Controllable pitch - 4 blades

Builder: Wärtsilä Propulsion Norway AS

Boilers

Auxiliary boiler, vertical shell type - AQ-9

Auxiliary boiler, composite - AQ-16

Builder: Aalborg Industries A/S

Shaft generator

1x AVK - 1.500 kW

Generators

1xWärtsilä 6L20 diesel generatorset

2x Wärtsilä 4L20 diesel generatorsets

Total 2380 kW at 900 rpm

Builder: Wärtsilä Finland Oy

Bow thruster

1x Brunvoll 800 kW

Number of cargo tanks

12

Cargo capacity 98%

18,491 m³

Number of slop tanks

2

Slop tank capacity 98%

681 m³

Total capacity 98 %

19.172 m³

Number of segregation

8

Cargo pumps

12x Framo each 300 m³/h

2x Framo each 150 m³/h + portable pumps

Pumping capacity

2.100 m³/h

Tank coating

Epoxy

Heating capacity

70°C

Bow to centre manifold

71,80 m

Mooring equipment

Numbers of ropes on drums forward: 6

Numbers of ropes on drums afterwards: 4

Numbers of ropes on drums midship: 2

Ballast capacity

8.180 m³

Anchor chain

Length: 300,30 m

Diameter: 58 mm

Lifting capacity

1x Hose crane - SWL 5,0 t

Manager

Rederiet Stenersen AS

Solheimsgaten 13
N-5058 Bergen
Norway

Operator

Rederiet Stenersen AS

Owner

Stentank AS
2494 Solheimsviken
N-5824 Bergen
Norway

Previous owners

2003 - 2004 Stenoil KS
Solheimsgaten 13
5058 Bergen
Norway

Latest data adjustment

25 May 2015
