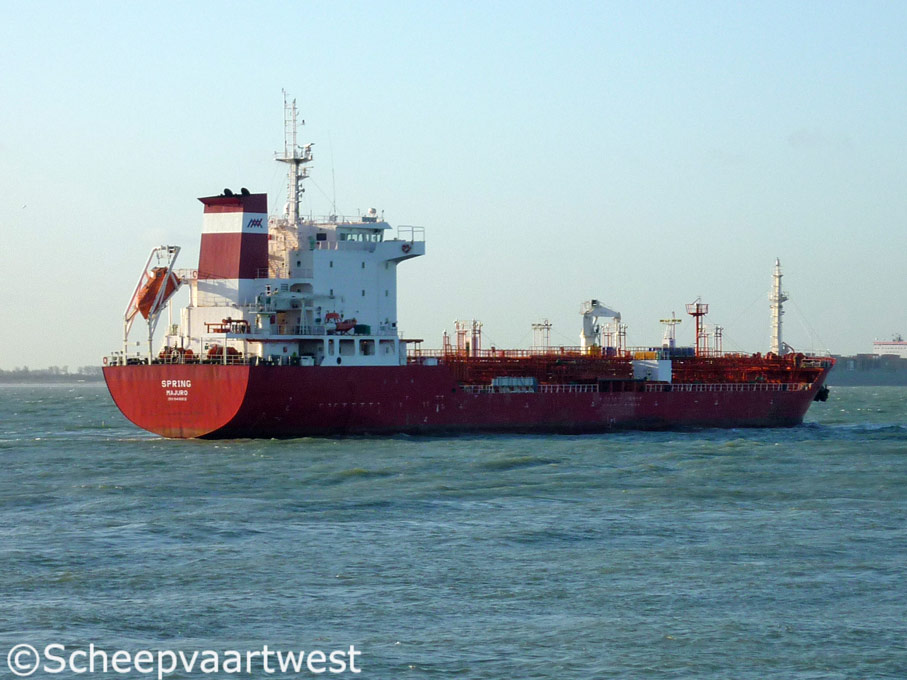

Spring IMO 9416812 01
Westerschelde 02 December 2012



Name

SPRING

Type

Double hull oil and chemical carrier

IMO-number

9416812

Call sign

V7QA8

Flag

Marshall Islands

Port of registry

Majuro

GT

8.539 t registered

Suez: 8.986,73 t

DWT

Summer: 13.021,81 t

NT

4.117 t registered

Panama: 7.254 t

Suez: 7.201,29 t

Length

128,60 m overall

120,40 m between perpendiculars

Breadth

20,40 m moulded

Draught

8,40 m

Freeboard

2.812 mm

Depth

11,50 m moulded

Speed

15,0 knots

Built

2009

Keel laid

24.10.2008

Date of completion

24.04.2009

Builder

21st Century Shipbuilding
Tongyoung
South Korea

Yard number

CSN248

Hull material

Ordinary strength steel

Hull type

Double hull

Bulkheads

Water tight: 11

Oil tight: 8

Main engine

1x STX-MAN B&W 6S35MC-MK7 - 6 cylinder 350 x 1.400 mm diesel engine- 4.440 kW at 173 rpm

Manufacturer Name: STX Engine Co.,Ltd.

Propeller

1

Manufacturer: Wärtsilä CME Zhenjiang Propeller Co.,Ltd.

Steam piping system

1x Exhaust gas boiler AV6N - 12,0 bar

Manufacturer Name: Aalborg Ind. Co.,Ltd.

1x Main boiler - 9,0 bar

Manufacturer Name: Aalborg Ind. Ltd.

Generators

3x Diesel generators sets Taiyo FE547A-10 each 480 kW

Manufacturer name: Taiyo Electric Co.,Ltd.

Number of cargo tanks

14

Cargo capacity 100%

14.368.68 m³ / 14.081,30 t

Number of tanks

Ballast: 14

Fuel oil: 10

Lubricating oil: 9

Fresh water: 6

Diesel oil: 3

Waste water: 3

Chain: 2

Sludge: 2

Chemical: 1

Hydraulic oil: 1

Tank capacities 100%

Diesel oil: 76,82 m³ / 66,06 t

Fresh water: 428,94 m³

Fuel oil: 689,19 m³ / 675,41 t

Hydraulic oil: 5,78 m³

Lube oil: 88,37 m³ / 79,53 t

Ballast: 5.277,18 m³ / 5.409,11 t

Lifting equipment

1x Cargo hose handling crane - SWL 10,0 t

1x Stern hose and rescue boat handling crane - SWL 2,1 t

Manufacture name: A Rim Mach. & Eng. Co.

Manager

Montenegro Marine Corp.
Trust Company Complex
Ajel Take Road, Aljetake Island
Majuro
Marshall Islands

Operator

V Ships Limited

Owner

Ngm Energy S.A.
Piraeus
Greece

Registered owner

Montenegro Marine Corp.
