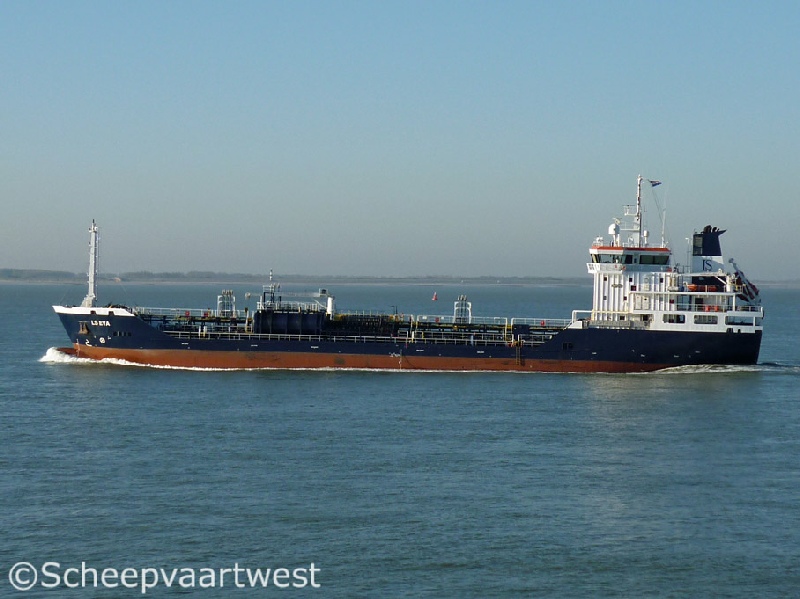

| Westerschelde 16 October 2011 |
|
 |
 |
 |
 |
 |
|||||
| Westerschelde 16/10/11 | Antwerpen 06/09/08 | Antwerpen 19/04/12 | Westerschelde 14/07/14 | Westerschelde 04/08/14 | Westerschelde 10/03/15 | |||||
 |
 |
|||||||||
| Antwerpen 22/05/15 | Westerschelde 13/12/19 | |||||||||
|
Name |
LS EVA |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9379478 |
|
Call sign |
ZDHU4 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
3.270 t |
|
DWT |
Summer: 4.720 t |
|
NT |
1.744 t |
|
Displacement |
Summer: 6.660 t |
|
Length |
99,90 m overall 94,00 m between perpendiculars |
|
Breadth |
15,00 m moulded |
|
Draught |
Summer: 6,10 m |
|
Keel to mast end |
23,86 m |
|
Freeboard |
1.300 mm |
|
Depth |
4,40 m moulded |
|
Speed |
14,0 knots |
|
Built |
2006 |
|
Date of order |
01/01/2005 |
|
Date of completion |
10/01/2007 |
|
Builder |
Tersan Tersanecilik Shipyard (Tersan Tersanecilik Tasimacilik San. Ve Tic. A.S.) Tuzla Turkey |
|
Yard number |
016 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MaK 8M25 - 4 stroke single acting 8 cylinder 255 x 400 mm combustion engine Mcr 2.640 kW / 3.589 hp at 75,0 rpm |
|
Propeller |
1x ZF ZFKH-960 - 3.700 mm diameter 4 blades |
|
Gearbox |
1x ZF ZFW 43100 NC with PTO4 1:0,416 |
|
Boilers |
2x Wiesloch - Heatmaster 1.200 kW, horizontal thermal oil boilers 1x Econimizer 400 kW 90% MCR |
|
Shaft generator |
1x Stamford HCM - 534 kVA |
|
Generators |
3x Volvo Panta D12 AUX diesel generatorsets each 463 kVA - 370 kW - 503 hp at 1.800 rpm - 3x 440 V, 60 Hz |
|
Emergency generator |
1x Volvo Penta TAMD 74AR diesel generatorset 150 kW - 3 x 440 V, 60 HZ at 1.800 rpm |
|
Bow thruster |
1x SCHOTTEL SST-170T-LK - 300 kW at 1.770 rpm |
|
Separators |
2x HFO separator Westfalia OSD6-136-06/73 - 650 l/h 1x MDO separator Westfalia OTC7-02-137 - 900 l/h 1x Lub oil separator Westfalia OSD-91-06714 - 700 l/h |
|
Number of tanks |
12 |
|
Cargo tanks capacity 100% |
5.170,38 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 100% |
122,71 m³ |
|
Pumps |
6x Cargo pumps each 175 m³/h 6x Cargo pumps each 100 m³h 2x Slop pumps 50 m³/h each 1x Portable pump 70 m³/h 2x Ballast pumps each 250 m³/h |
|
Sewage system |
1x IMO approved sewage treatment plant 1.400 l/day 1x Incinerator for oil and solid sludge (300.000 kcal/h) |
|
Gas detection system |
1x Fixed gas detection system in cargo adjacent spaces, for ballast tank, ballast pump room with read out in cargo control room |
|
Manifolds |
Distance from bow to centre manifold: 44,91 m Distance from stern to centre manifold: 54,99 m Distance between manifolds: 0,680 m Distance from ship side to manifold: 3,000 m |
|
Cargo handling |
10 + 2 x 5'' manifold connections 2x 6'' manifold bulk connections 1x 6'' stern connection 2x 6'' vapour return connections Fixed draining system for drip trays and deck |
|
ISM & commercial manager |
Lauranne Shipping BV Wervenweg 2 4551 MC Sas Van Gent Terneuzen The Netherlands |
|
Registered owner |
Chemtrans N.V. Joe Englishstraat 52 Borgerhout (Antwerpen) Belgium |
|
Renamed |
03/2022 HS Ayse Ana 03/2022 - 05/2022 Republic of Panama - Call sign: 3E4036 05/2022 Malta, Valletta - call sign: 9HA5681 Owner: Han Shipping Limited Operator: KPT Shipmanagement Company Ltd., Valletta - Malta |
|
Latest data adjustment |
24 September 2022 |
