| Gibraltar 21 September 2011 |
 |
| Gibraltar 21/09/11 |
|
Name |

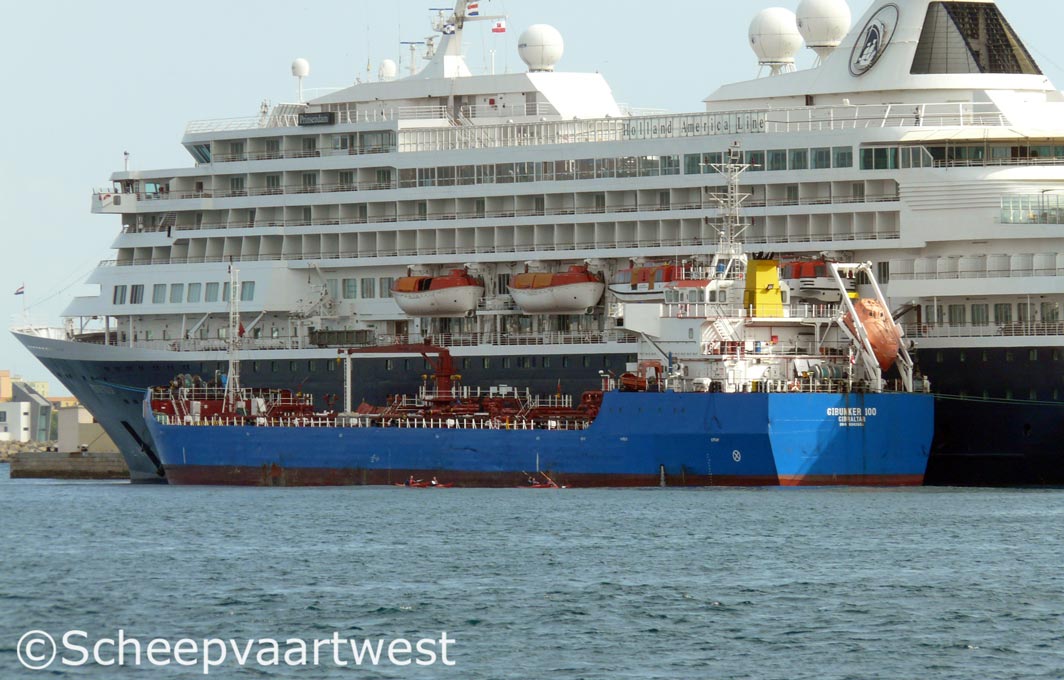

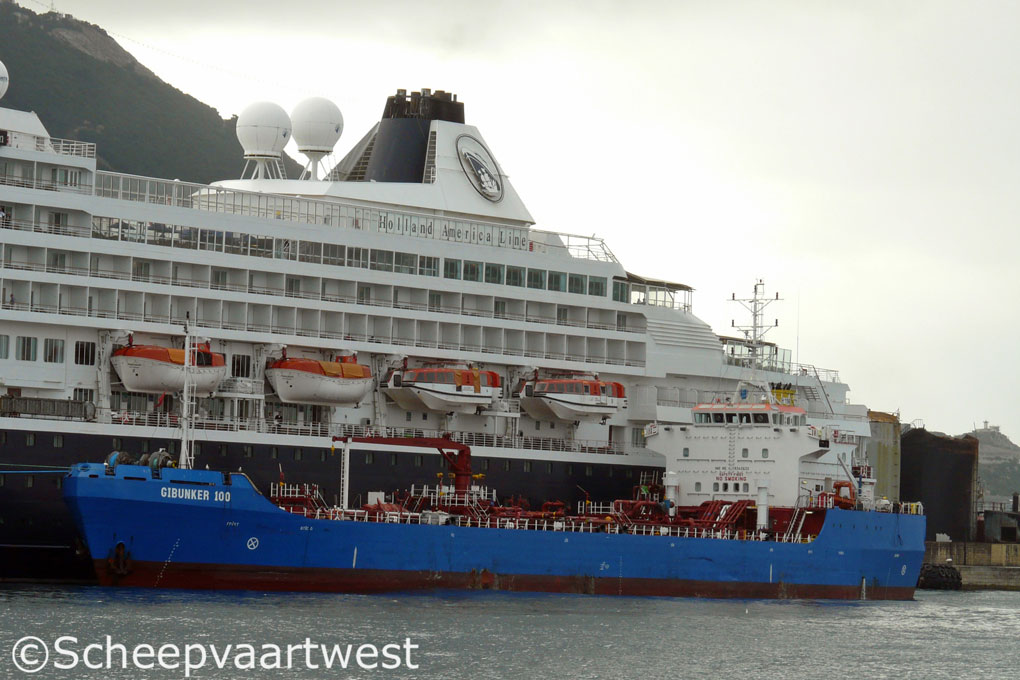

GIBUNKER 100 |
|
Previous names |
2007 -24.10.2007 Waseela 3 |
|
Type |
Bunkering tanker - Double hull oil tanker |
|
IMO-number |
9342633 |
|
Call sign |
ZDIH6 |
|
Flag |
Gibraltar - United Kingdom |
|
Port of registry |
Gibraltar |
|
GT |
4.292 t |
|
DWT |
Summer: 7.511 t |
|
NT |
1.963 t |
|
Displacement |
Summer: 9.796 t |
|
Length |
101,08 m overall 95,95 m between perpendiculars |
|
Breadth |
18,02 m extreme |
|
Draught |
Summer: 5,95 m |
|
Speed |
8,0 knots |
|
Built |
2007 |
|
Keel laid |
30.12.2005 |
|
Date of completion |
24.06.2007 |
|
Builder |
Drydocks World Dubai |
|
Yard number |
DB44 |
|
Hull type |
Double hull |
|
Main engine |
2x Yanmar - 4 stroke single acting Turbocharged Type: 6RY 17P-GV Capacity 736 KW at 1.500 rpm total output at 1.500 rpm - 1.427 kW |
|
Propeller |
1x Twin azimuth propeller HRP Holland Diameter: 1,65 m |
|
Generators |
1x Caterpillar Type 3412 - 4 stroke single acting turbo charged - 716 BHP at 1.518 rpm generatorset 1x Caterpillar Type: 3406 - 4 stroke single acting turbo charged 260 kW at 1.500 rpm generatorset |
|
Emergency generator |
1x Caterpillar Type 3054T diesel generatorset 60kW at 1.500 rpm, 380/220 Volt, 50Hz |
|
Bow thruster |
1x HRP - 450 kW, Electric |
|
Cargo capacity |
Cargo oil & slop: 6.650 m³ |
|
Cargo pumps |
2x Bornemann HFO 500 m³/h each 1x Bornermann MDO/MGO 150 m³/h |
|
Tank capacities |
Fuel oil: 130 m³ (Vessel’s own bunker) Fresh water; 80 m³ Recovered oil: 5 m³ |
|
Lifting equipment |
1x Hose H. Crane Norcrane - SWL 3,0 t midships 1x Hose H. Crane - SWL 1,5 t aft stbd |
|
Anchor equipment |
2x Anchors 2.850 Kg stockless Bower Chain: 495,00 m x 42 mm diameter |
|
Anchor winch |
2x Electro Hydraulic driven cum mooring winch fwd & aft |
|
Air compressors |
2x Sperre type: HL2/77 2 stage air cooled with water separator Capacity: 25,0 m³/h. |
|
Purifiers |
1x Westfalia type: OTC 2-02-137 Capacity: 1.140 l/h at 10.000 rpm |
|
Sewage Plant |
1xHamworthy type: ST2A Super Trident Capacity: 3.120 l |
|
Crew |
Minimum safe manning level of 10 crew is achievable Certified Cabins: 23 Persons (7 Officers and 16 crew) |
|
Manager |
Gibunco |
|
Operator |
Peninsula Petroleum (Brokers) Ltd. 68 Pall Mall, 3rd Floor London, SW1Y 5ES United Kingdom |
|
Owner |
Seven Oceans Worldwide Services S.A |
