Duzgit Harmony 08

Westerschelde 27 December 2017

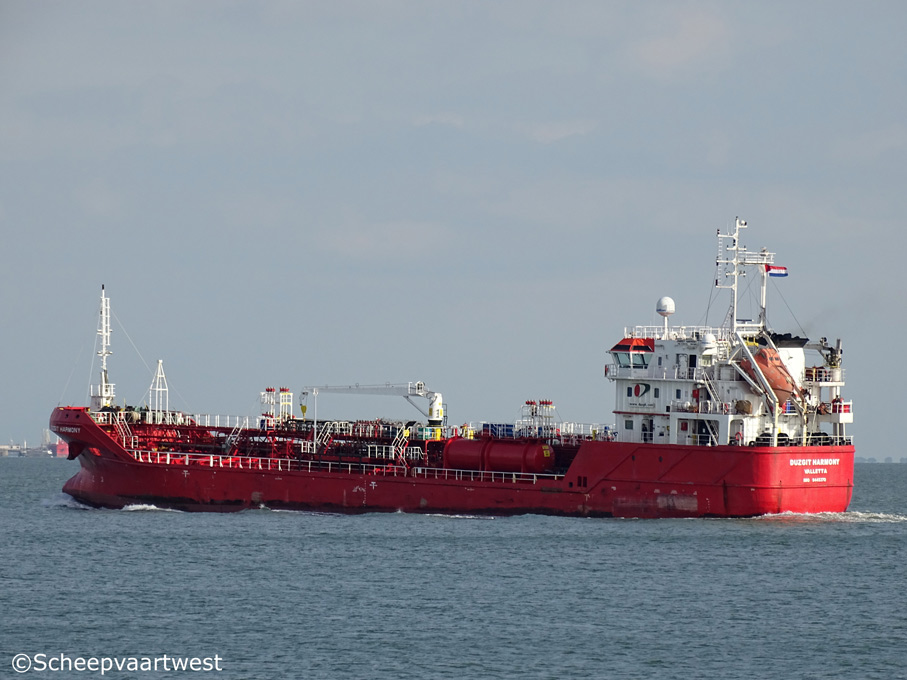

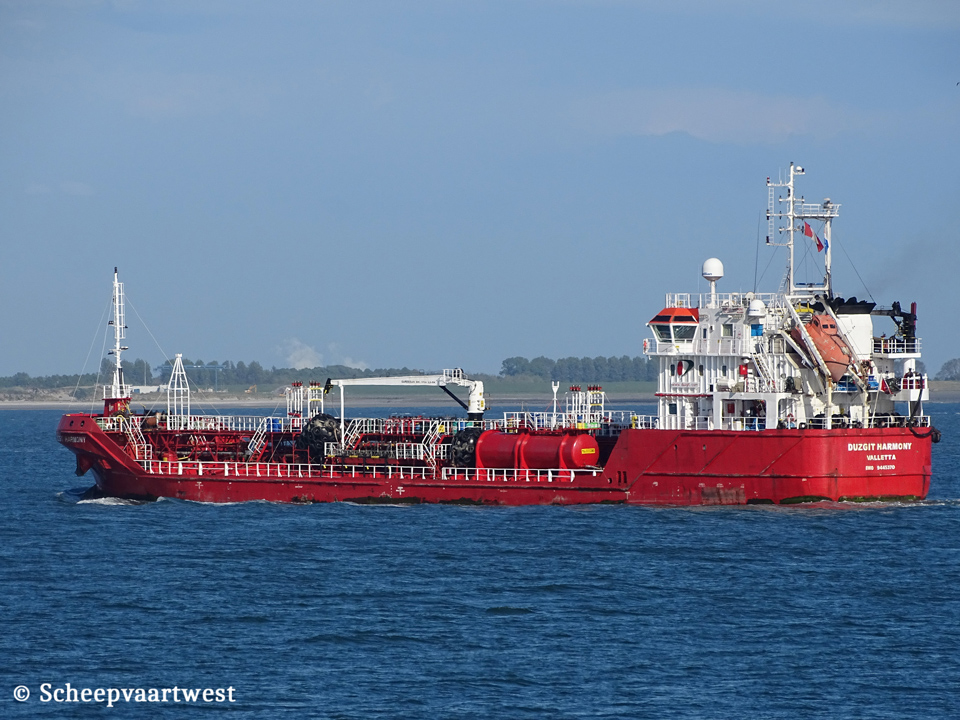

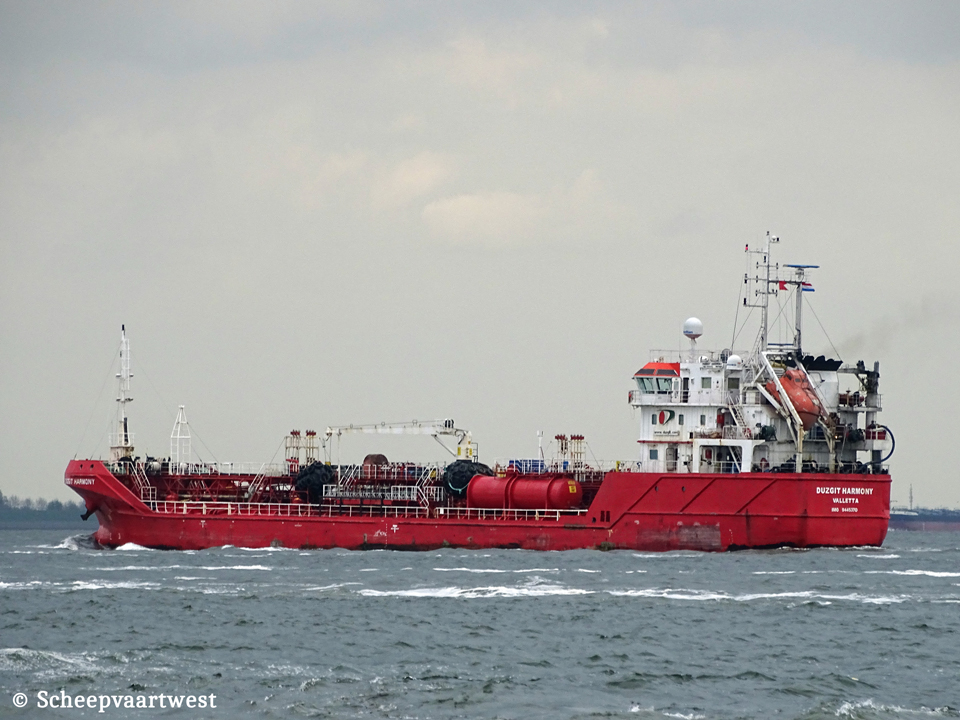

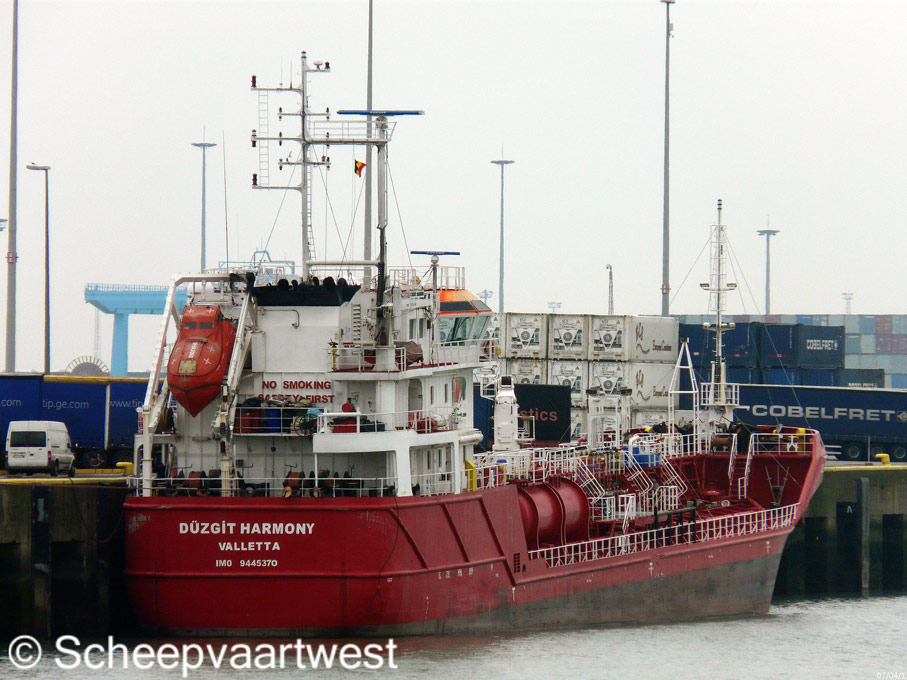

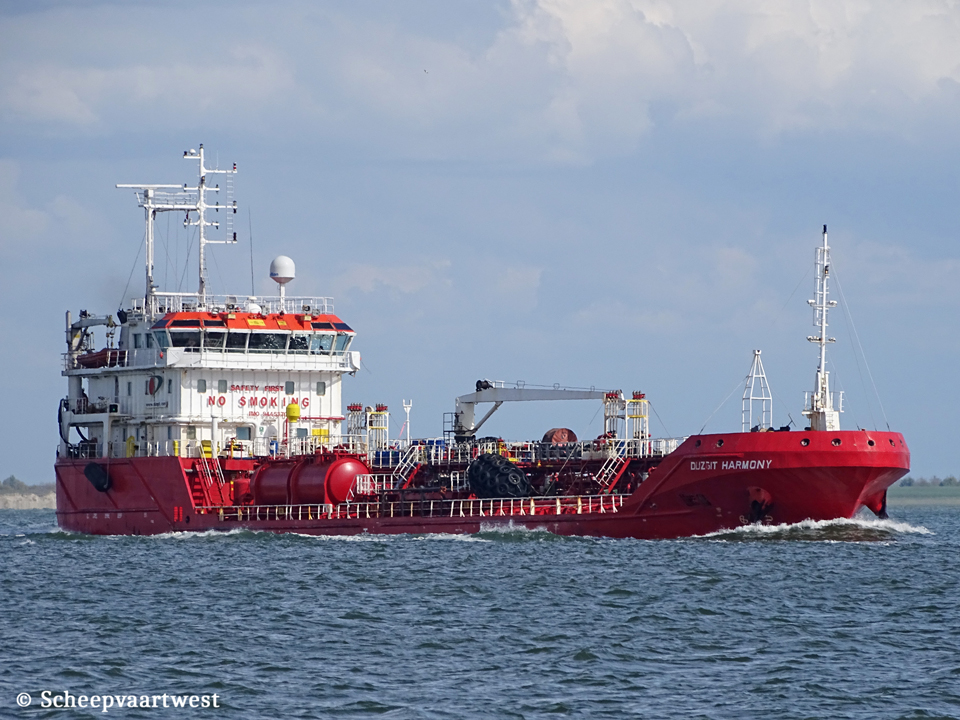

Duzgit Harmony 07   Duzgit Harmony 05   Duzgit Harmony IMO 9445370 09   Duzgit Harmony IMO 9445370 10   Duzgit Harmony IMO 9445370 11   Duzgit Harmony IMO 9445370 12
Westerschelde 18/09/16   Zeebrugge 07/04/10   Westerschelde 25/07/19   Westerschelde 16/04/17   Westerschelde 16/04/17   Westerschelde 27/04/17


Name

DÜZGIT HARMONY

Type

Tanker for oil & Chemicals

IMO-number

9445370

Call sign

9HA2068

Flag

Malta

Port of registry

Valletta

GT

2.166 t

DWT

3.147 t

NT

949 t

Lightweight

1.429 t

Length

89,74 m overall

84,11 m between perpendiculars

Breadth

12,50 m

Draught

Summer: 5,13 m

Keel to mast end

28,40 m

Air draft

15,00 m with folded masts

Freeboard

981 mm

Speed

12,5 knots

Economic: 11,0 knots

Built

2009

Date of completion

08/07/2009

Builder

Gemtis Gemi Insaat Sanayi Ve Ticaret Ltd. Sti

Tuzla

Turkey

Yard number

14

Hull material

Steel

Hull type

Double hull

Main engine

2x ABC 6MDZC - 4 stroke 6 cylinder 256 x 310 mm combustion engine 1.000 kW total 2.000 kW / 2.718 hp at 900 rpm

Builder: Anglo Belgian Corporation NV

Wiedauwkaai 43

9000 Gent

Belgium

Propulsion system

2x Schöttel SRP 1012 Fixed pitch rudder propeller

Boilers

2x CHO Ther oil HTI-GESAB - 800 kW / 10,0 bar

Heating surface: 35,00 m²

1x CHR Economiser - 500 kW / 10,0 bar

Heating surface: 44,45 m²

Generators

3x Main diesel generatorsets Lindenberg each 325 kW - 406 kVA - 530 hp at 1.800 rpm

Emergency generators

1x Diesel generatorset Lindenberg - 99 kVA at 1.800 rpm

Bow thruster

1x Schöttel STT 170 FP 300 kW electrical driven

Cargo capacity

3.428 m³ inclusive slops

Cargo capacity (98%)

3.341 m³

Number of tanks

12

Integrated cargo tanks

10

Deck cargo tanks

2x Slop

Cargo pumps

10x Deepwell pumps each 200 m³/h electrical driven

2x Deepwell pumps each 50 m³/h electrical driven

1x Portable pump 70 m³/h

Total loading capacity

1.100 m³/h

Discharging capacity

800 m³/h

Steam generator

1x 500 kg/h

Nitrogen plant

1x 500 m³/h

Manifold

Distance bow centre manifold: 41,00 m

Distance stern centre manifold: 48,60 m

Inboard from ships side: 2,90 m

Height above deck: 2,45 m

Height above waterline (loaded): 3,60 m

Height above waterline (in ballast) 5,25 m

Highest allowable pressure: 16,0 bar

Manifold flanges: 3'' - 6'' - 10''

Segregation for cargo lines: 5 cargo tanks + 1 slop tanks

Tank capacities

Fuel oil: 153,6 m³

Water ballast: 1.358 m³

Lifting equipment

1x Crane - SWL 5,0 t @ 13,00 m

Crew

12

ISM & commercial manager

Densa Tanker Isletmeciligi Ltd.

Kat 11, Eski Buyukdere Caddesi 14, Resitpasa Mah, Emirgan

34467 Istanbul

Turkey

Owner

DS Harmony Lilmited, Valletta - Malta

Care of DSM Gemi Isletmeciligi AS

Kat 11, Eski Buyukdere Caddesi 14, Resitpasa Mah, Emirgan

34467 Istanbul

Turkey

Latest data adjustment

07 November 2021
