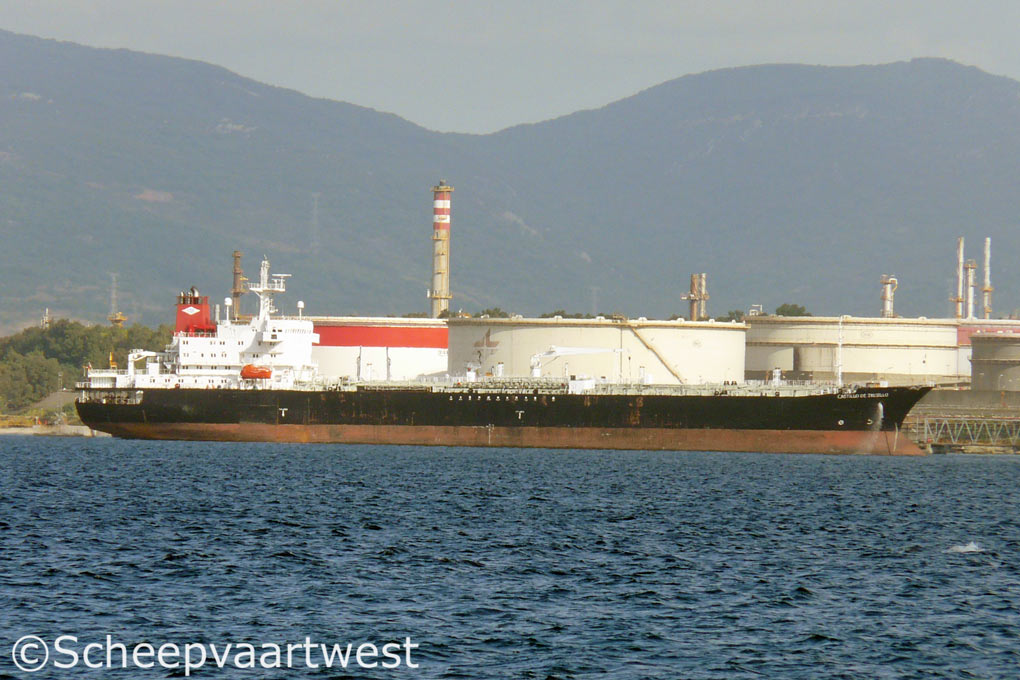

Castillo De Trujillo 02
Gibraltar 21 September 2011



Name

CASTILLO DE TRUJILLO

Type

Oil & chemical tanker

IMO-number

9293337

Call sign

ECGD

Flag

Spain

Port of registry

Santa Cruz De Tenerife

GT

21.682 t

Suez: 23.092 t

DWT

29.500 t

NT

7.625 t

Suez: 19.084 t

Light ship

10.042 t

Length

182,14 m overall

168,18 m between perpendiculars

Breadth

25,328 m

Draught

11,25 m

Depth

18,30 m

Speed

15,0 knots

Built

2004

Date of completion

21.06.2004

Builder

OAO Khersonskiy Sudostroitelnyy Zavod Kherson Shipyard

Kherson
Ukraine

Yard number

1434

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W 6S50-MC-C-MK7 - 2 stroke 6 cylinder 500 x 2.000 mm diesel engine - 8.532 kW / 11.592 hp at 115,0 rpm

Built: 2003

Builder: MAN B & W DIesel A/S Alpha Diesel, Frederikshavn - Denmark

Electrical propulsion gen.

1x 800 kW - 440 Volt

Propelling system

1x Screw propeller controllable pitch - at 115 rpm

Boilers

2x CHO Aalborg 120,00 m² - 9,0 bar
1x CHR Aalborg 9,0 bar

Electrical installation

Power voltage: 440 V

Lighting voltage: 230 V

Frequency: 60 Hz

Generators

1x Diesel generatorset 250 kVA - 200 kW - 281 hp
3x Diesel generatorsets each 1.125 kVA - 900 kW - 1.318 hp

Cargo tanks capacity 98%

Tank 1: 3.523 m³

Tank 2: 5.195 m³

Tank 3: 5.471 m³

Tank 4: 5.471 m³

Tank 5: 5.471 m³

Tank 6: 5.471 m³

Tank 7: 5.359 m³

Total: 35.961 m³

Slop tanks capacity

3rd tank: 613 m³

4th tank: 613 m³

Cargo capacity

Cargo tanks (including slops tanks) 37.187 m³

Number of segregations

7

Cargo pumps

Framo deep well:

10x 500 m³/h each

7x 300 m³/h each

Manifold dimensions

Distance from bow to centre of manifold: 87,45 m

Distance from stern to centre of manifold: 94,69 m

Distance from manifold to ship rail: 4.600 mm

Height of manifolds above deck: 2.000 mm

Distance between manifold: 2.000 mm

Distance from manifold to waterline in ballast: 12,35 m

Ballast tank cap. 100%

Forward Peak: 942 m³

1 Port & Starboard: 2.276 m³

2 Port & Starboard: 1.830 m³

3 Port & Starboard: 1.668 m³

4 Port & Starboard: 1.668 m³

5 Port & Starboard: 1.668 m³

6 Port & Starboard: 1.667 m³

7 Port & Starboard: 1.340 m³

After peak: 500 m³

Duct keel: 250 m³

Total: 13,809

Tank capacities

Fuel oil: 1.440 m³

Diesel oil: 142 m³

Freshwater: 1.110 m³

Lifting equipment

2x Cranes

Manager

Empresa Naviera Elcano, S.A.

Operator

Empresa Naviera Elcano, S.A.

Owner

Naviera Poniente / Elcano Product Tankers 2, S.A.
c/ José Abascal nº 2 y 4 planta 4ª
28003 Madrid
Spain
