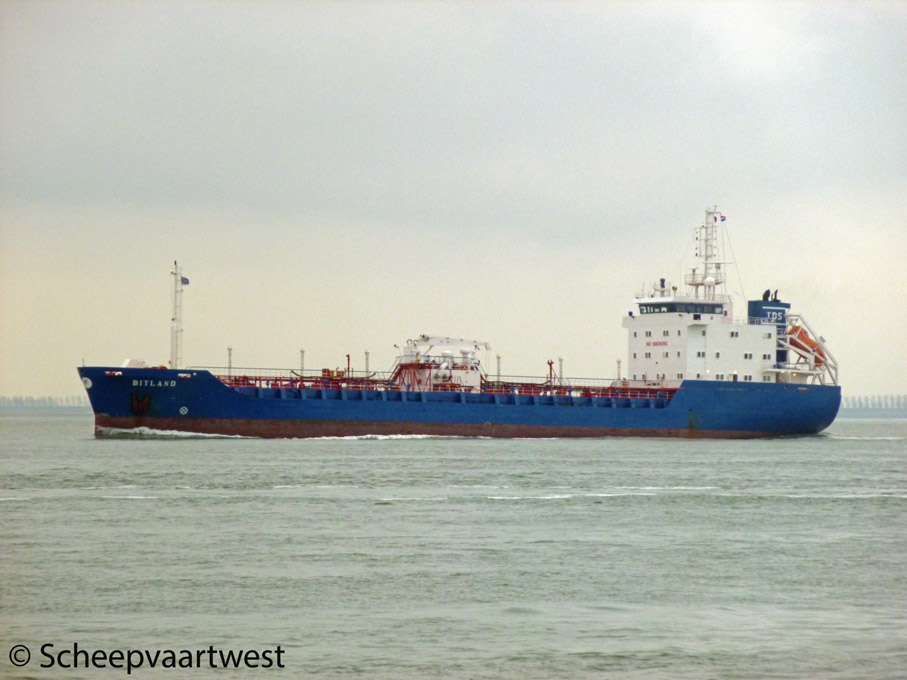

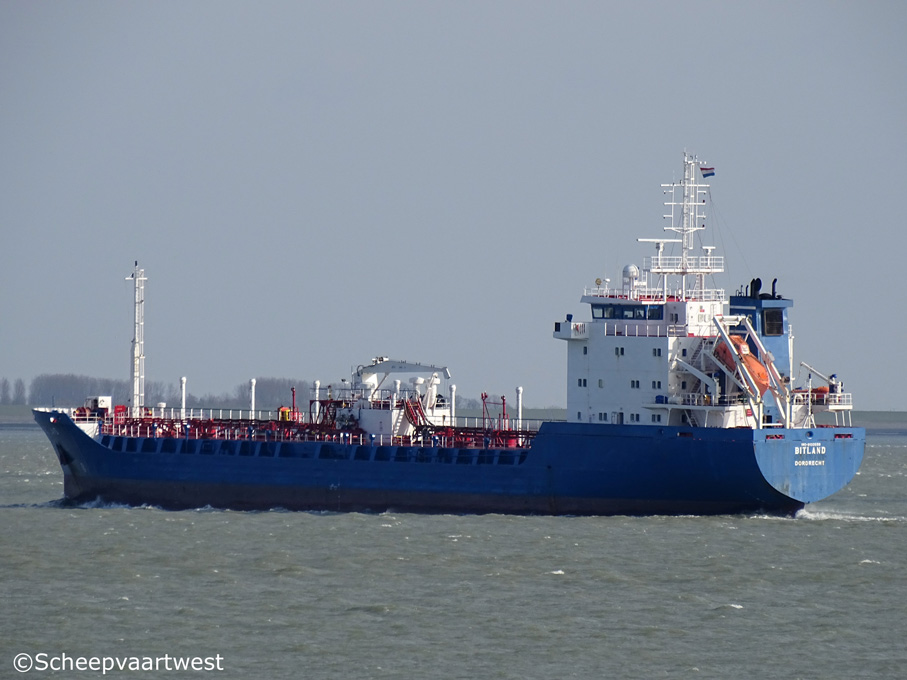

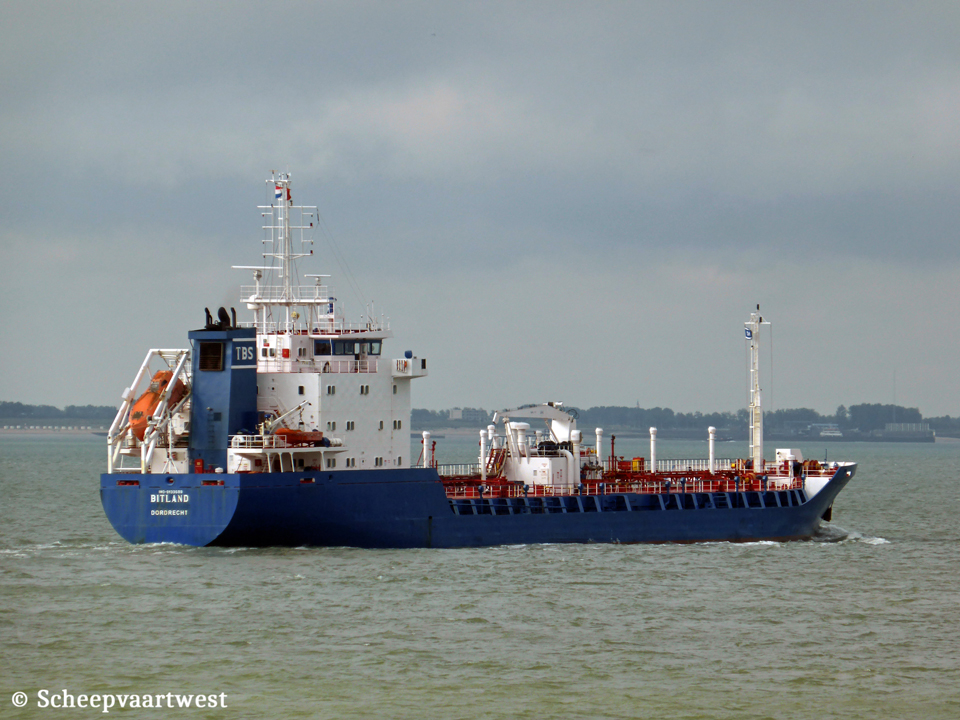

Bitland - IMO 9133599

Name

BITLAND

Previous names

1995 built as: Tasco 2

1995 - 1998 Tasco II

Type

Oil tanker / Chemical tanker - Asphalt / Bitumen tanker

IMO-number

9133599

Call sign

PBHJ

Flag

The Netherlands

Port of registry

Dordrecht

Previous flags

1995 - 1995 Thailand, Bangkok - Call sign: HSBL2

1995 - 1998 republic of Panama, Panama City - Call sign: HP8350

1998 - 2007 Sweden, Skärhamn - Call sign: SIVX

GT

4.025 t

DWT

4.450 t

NT

1.207 t

Length

105,00 m overall

99,90 m between perpendiculars

Breadth

15,82 m moulded

Draught

5,75 m

Freeboard

2.260 mm

Depth

8,00 m moulded

Speed

Service: 13,5 knots

Built

1995

Date of completion

30.10.1995

Builder

N.V. Scheepswerf en Machinefabriek De Biesbosch
Dordrecht
The Netherlands

Yard number

867

Hull material

Steel

Hull type

Double hull

Watertight compartments

8

Continuous decks

1

Main engine

1x MAN B&W 7L32/40 - 4 stroke single acting 7 cylinder 320×400 mm diesel engine - 2.980 kW / 4.184 hp at 750 rpm

Built: 1994

Builder: MAN B&W Diesel AG, Augsburg - Germany

Propellers

1x Screw propeller controllable pitch - at 165 rpm

Boilers

2x CHM Konus Kessel 42,50 m² - 10,0 bar
1x CHR Funnel 61,00 m² - 10,0 bar

Electric installations

Power voltage: 440 V

Lighting voltage: 220 V

Frequency: 60 Hz

Shaft generator

1x 350 kW

Generators

3x Yanmar S165L-EN main diesel generatorsets each 487 kVA - 390 kW at 1.200 rpm

Bow thruster

1x Lips - 250 kW

Number of cargo tanks

6x Cargo tanks for bitumen

Number of slop tanks

2x Slop tanks for fuel oil

Total capacity of tanks 98%

4.425 m³

Pumps

2x Houttiun screw 300 m³/h each
1x Houttiun screw 510 m³/h

Maximum cargo temp

220ºC

Manifolds

Bow to centre manifold: 48,00 m

Fuel capacity

352 m³

Lifting equipment

1x Crane - SWL 4,0 t

Crew

17

Manager

Tarbit Tankers BV
Wolwevershaven 30-M
3311 AW Dordrecht
The Netherlands

Previous managers

1995 - 1998 Tipco Maritime Co. Ltd., Bangkok - Thailand

1998 - 2007 Tarbit Shipping AB, Skärhamn - Sweden

Owner

Carnisse B.V.
Wolwevershaven 30-M
3311 AW Dordrecht

The Netherlands

Previous names & Owners

1995 - 1995 Tasco 2 - Delta Shipping Co. Ltd., Bangkok - Thailand

1995 - 1998 Tasco II - Tipco Maritime Co. Ltd., Bangkok - Thailand

1998 - 2007 Bitland - Tarbit Shipping AB, Skärhamn, Sweden

Latest data adjustment

29 March 2016
