| Westerschelde 02 March 2019 |
|
Name |

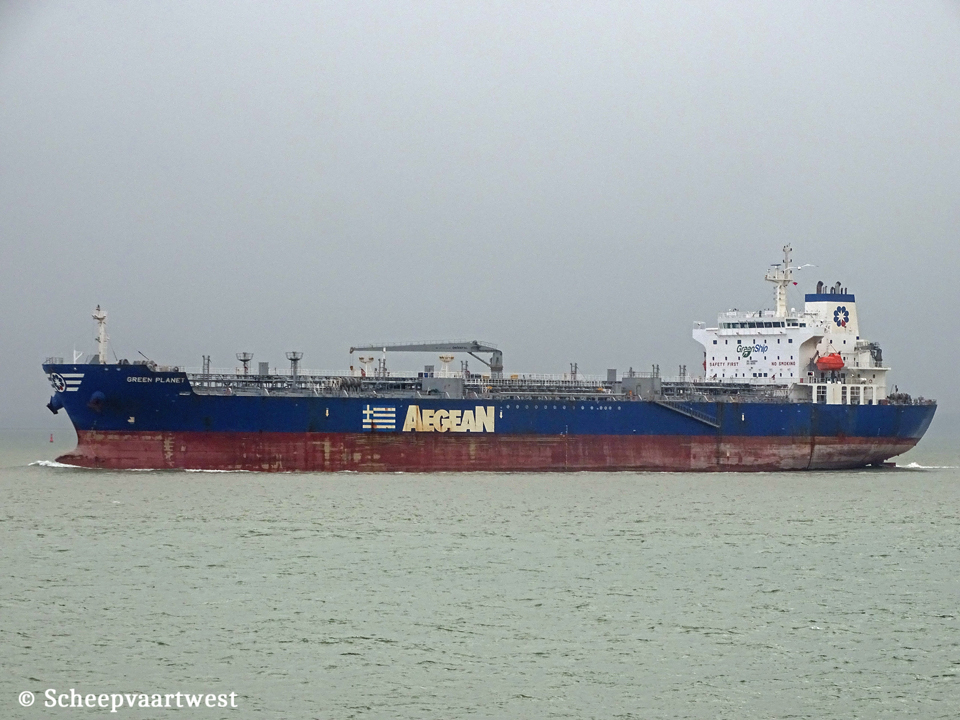

GREEN PLANET |
|
Type |
Chemical / Products tanker |
|
IMO-number |
9669914 |
|
Call sign |
D5FK2 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
30.264 t Suez: 31.719,30 t |
|
DWT |
Summer: 50.843,83 t Winter: 49.939,00 t |
|
NT |
13.885 t Suez: 26.881,84 t Panama: 25.221 t |
|
Displacement |
Summer: 61.931 t Winter: 60.639 t |
|
Length |
183,10 m overall 174,00 m between perpendiculars |
|
Breadth |
32,29 m extreme |
|
Draught |
Summer: 13,30 m Winter: 13,01 m |
|
Keel to mast end |
47,91 m |
|
Air draft |
Full mast: Summer deadweight: 34,62 m Normal ballast: 40,53 m Lightship: 45,11 m |
|
Freeboard |
Summer: 8.810 mm Winter: 6?090 mm |
|
Depth |
19,10 m moulded |
|
Speed |
Ballast: 14,5 knots - Economic: 13,0 knots Laden: 14,0 knots - Economic: 13,0 knots |
|
Built |
2014 |
|
Keel laid |
16/08/2013 |
|
Date of completion |
03/04/2014 |
|
Builder |
Dae Sun Shipbuilding & Engineering Co., Ltd. Busan Yard South Korea |
|
Yard number |
570 |
|
Hull material |
Higher tensile steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN-B&W 6S50ME-B9 - 2 stroke single acting 6 cylinder 500 x 2.214 mm combustion engine Mcr 7.570 kW / 10.292 hp at 99,0 rpm Builder: Heavy Industries Co., Ltd. - South Korea |
|
Propellers |
1x Fixed pith propeller - aft at 99,0 rpm |
|
Boilers |
2x Auxiliary boilers |
|
Generators |
3x Hyundai 6H21/32 - 4 stroke 6 cylinder 210 xw 320 mm diesel engines Mcr 1.005 kW connected with generators each 944 kW / 450 Volt 560 Hz |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 98% |
Seg#1: 6.489,55 m³ (1P/S) Seg#2: 8.991,63 m³ (2P/S) Seg#3: 9.203,26 m³ (3P/S) Seg#4: 9.203,74 m³( 4P/S) Seg#5: 9.390,18 m³ (5P/S) Seg#6: 8.913,31 m³ (6P/S) Seg#7: 1.176,64 m³ (SlopsW) Total: 52.003,87 m³ |
|
Slop tank capacity 98% |
1.176,64 m³ |
|
Number of pumps |
12x Submerged centrifugal cargo pumps each 600 m³/h 1x Submerged centrifugal ballast pumps each 750 m³/h |
|
Manifolds |
Bow to centre manifold: 92,40 m Stern to centre manifold: 90,60 m Bridge front to centre manifold: 55,10 m Distance between cargo manifold centres: 2.000 mm Distance ship rail to manifold: 4.430 mm Distance manifold to ship side: 4.600 mm Top of rail to centre of manifolds: 700 mm Distance main deck to centre manifold: 2.000 mm Spill tank grating to centre of manifolds: 900 mm |
|
Tank capacities |
Fuel oil: 1.377,84 m³ Diesel oil: 152,43 m³ Gas oil: 162,98 m³ Ballast: 21.758 m³ |
|
Lifting equipment |
1x Crane - SWL 10,0 t |
|
Crew size |
18 |
|
ISM & Commerical manager |
Aegean Shipping Management S.A. 10, Akti Kondyli, 185 45 Piraeus Greece |
|
Registered owner |
Ocean Yangtze Seven Ltd. 10, Akti Kondyli Piraeus 185 45 Greece |
|
Latest data adjustment |
03 April 2022 |
