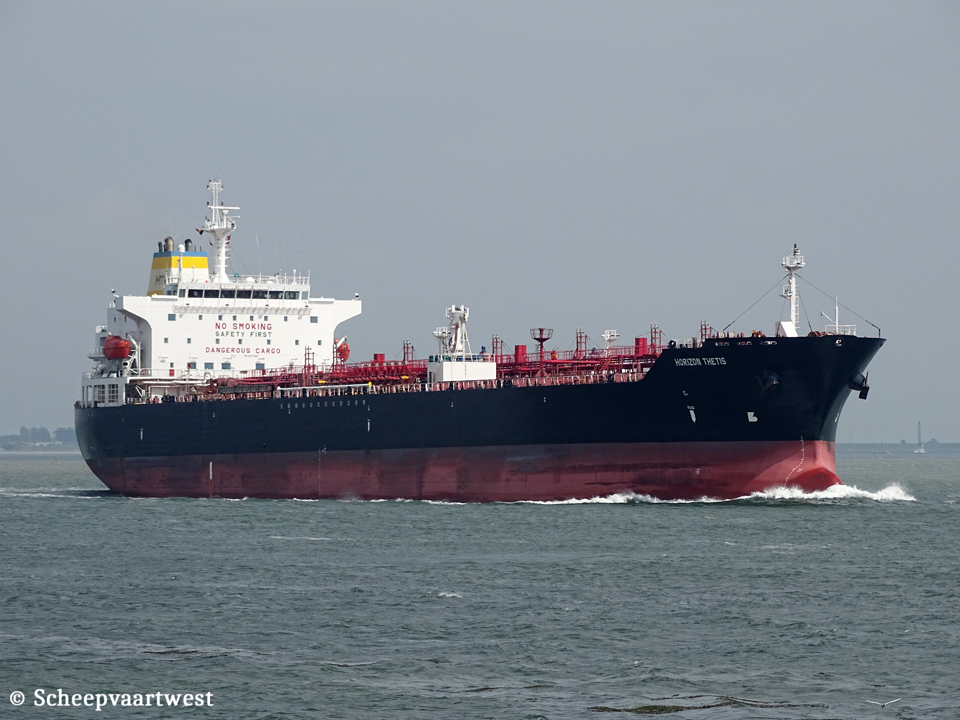

Horizon Thetis IMO 9407380 01

Westerschelde 20 June 2019

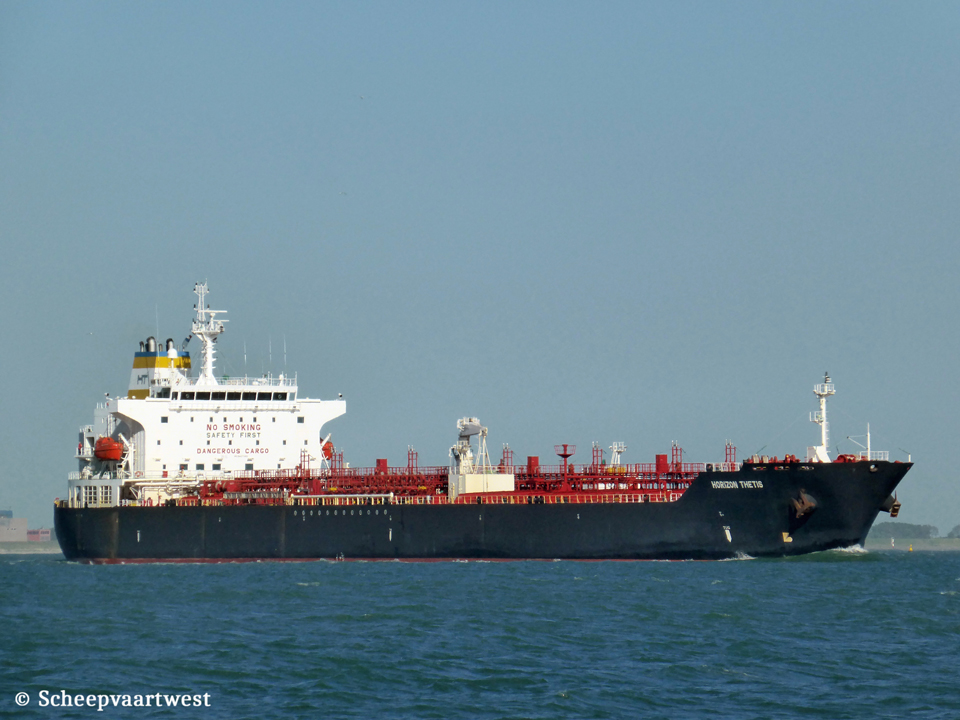

Horizon Thetis IMO 9407380 02
Westerschelde 06/06/15


Name

HORIZON THETIS

Type

Oil Tanker/Chemical tanker

IMO-number

9407380

Call sign

A8RK7

Flag

Liberia

Port of registry

Monrovia

GRT

29.828 t

Suez: 30.987,58 t

DWT

Summer: 50.266,28 t

NRT

13.429 t

Suez: 26.624,41 t

Panama: 24.760 t

Displacement

60.971,92 t

Length

183,09 m overall

175,54 m between perpendiculars

Breadth

32,20 m moulded

Draught

Summer: 13,03 m

Keel to mast end

47,82 m

Air draft

Lightship: 43,67 m

Normal ballast: 38,94 m

At loaded summer deadweight: 33,28 m

Freeboard

6.052 mm

Depth

19,10 m moulded

Speed

14,9 knots

Built

2009

Keel laid

01/09/2008

Launch date

15/11/2008

Delivery datye

05/01/2009

Builder

SPP Shipbuilding Co., Ltd.

537, Haeansaneop-Ro Sanam-Myeon, Sacheon-Si

Gyeongsangnam-Donam Do, 664-942

South Korea

Yard number

H1020

Hull material

Steel

Hull type

Double hull

Main engine

1x Doosan/MAN-B&W 6S50MC-C - 6 cylinder 500 x 2.000 mm combustion engine Mcr 9.580 kW 7 12.880 hp at 127,0 rpm

Propellers

1x Fixed pitch propeller

Manufacturer: Sila Metal

Boilers

1x Auxiliary boiler - 13 MPa

1x Exhaust Gas Boiler - 12 MPa

Manufacturer: Aalborg Industries Co., Ltd.

Generators

3x Yanmar 6N21AL-EV - 4 stroke 6 cylinder 10 x 290 diesel engines each 970 kW connected with generators each 900 ekW

Manufacturer: Taiyo Electric Co., Ltd.

Number of tanks

12

Cargo tank capacity

Wings 1: 6.144,707 m³

Wings 2: 9.231,305 m³

Wings 3: 9.413,656 m³

Wings 4: 9.410,905 m³

Wings 5: 9.405,924 m³

Wings 6: 8.509,824 m³

Wings slop: 1.396,26 m³

98% - 52.116,32 m³ excluding slop tanks

100% - 54.619,75 m³

Number of slop tanks

2

Slop tank capacity 98%

1.396,26 m³

Number of pumps

12x Framo SD200 cargo pumps each 600 m³/h

2x Framo SD150 cargo pumps each 300 m³/h

2x Framo SB300 ballast pumps each 750 m³/m²

Manifolds

Bow to centre manifolds: 91,18 m

Stern to centre Manifold: 91,81

Distance bridge front to centre of manifold: 59,34 m

Distance between cargo manifold centres: 2.000 mm

Distance ships rail to manifold: 4.600 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 700 mm

Distance main deck to centre of manifold: 2.100 mm

Tank capacities 100%

Diesel oil: 115,94 m³

Fresh water: 514,70 m³

Ballast: 23.027,13 m³

Fuel oil: 1.411,90 m³

Lub oil: 150,38 m³

Lifting equipment

1x Engine room overhead crane - SWL 2,5 t

1x Hose handling crane - SWL 10,0 t

1x Provision crane - SWL 3,0 t

Manufacturer: Haean Machinery Ind. Co., Ltd.

Commerical manager

Horizon Tankers Limited SA

24, Kaningos Street

185 34 Piraeus

Greece

ISM manager

Bernhard Schulte Shipmanagement

Makedonomachon

36, Nea Ionia

142 35 Athens

Greece

Registered owner

Almaviva Shipping Corporation - Liberia

Care of Horizon Tankers Ltd SA

24, Kaningos Street

185 34 Piraeus

Greece

Latest data adjustment

21 September 2021
