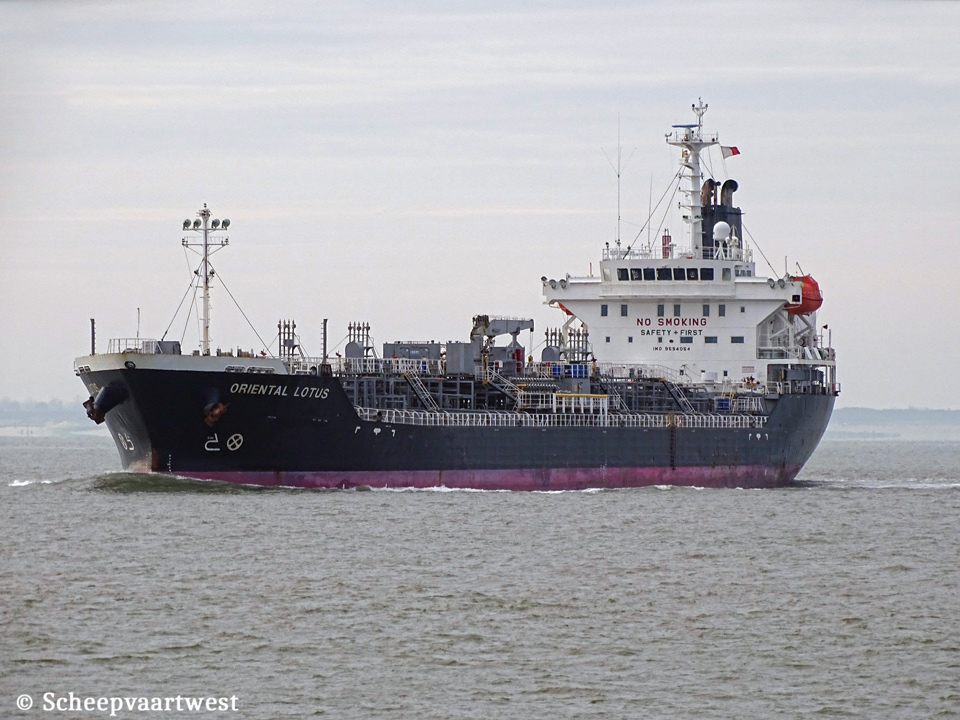

Oriental Lotus IMO 9594054 01

Westerschelde 29 December 2019



Name

ORIENTAL LOTUS

Type

Chemical and oil tanker

IMO-number

9594054

Call sign

ZGBC3

Flag

Cayman Islands

Port of registry

George Town

GT

8.260 t registered

DWT

Summer: 14.281 t

NT

4.735 t registered

Length

134,16 m overall

Breadth

20,50 m moulded

Draught

Summer: 8,81 m

Moulded L x B x D

125,00 x 20,50 x 11,60 m

Registered L x B x D

125,00 x 20,50 x 11,60 m

Freeboard

Summer: 2.813 mm

Depth

11,60 m moulded

Speed

Max: 15,3 knots

Built

2010

Keel laid

07/11/2008

Launch date

24/09/2010

Date of completion

03/12/2010

Builder

Asakawa Shipbuilding Co., Ltd.

Imabari

Japan

Yard number

573

Hull material

Steel

Hull type

Double hull

Main engine

1x Hitachi/MAN-B&W 6S35MC - 2 stroke single acting 6 cylinder 350 x 1.400 mm combustion engine 4.440 kW at 173,0 rpm

Manufacturer: Hitachi Zosen Corporation Innoshima Works

Propeller shaft

1x Sea water lubrication shaft

Diameter: 350 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 0,98 MPa

Evaporation: 12,64 t/h

Manufacturer: Miura Co., Ltd.

Generators

3x Diesel generatorsets each 450 kW - 60 Hz

Bow thruster

1x 390 kW

Number opf cargo tanks

16

Cargo tank capacity

16.561 m³

Tank capacities

Fuel oil: 815 m³

Fresh water: 189 m³

Ballast: 4.184 m³

Lifting equipment

1x Hose crane - SWL 5,0 t

Crew size

25

Manager

New Shipping Kaisha Ltd.

6-3, ichigayata-manchi Shinjuku-ku

Tokyo-to 162-0066

Japan

Registered owner

Lotus Tankers SA

C/o Serromah Shipping BV

Hoofdweg 236

3067 GJ Rotterdam

The Netherlands

Latest data adjustment

19 March 2021
