Lauren L - IMO 9246827

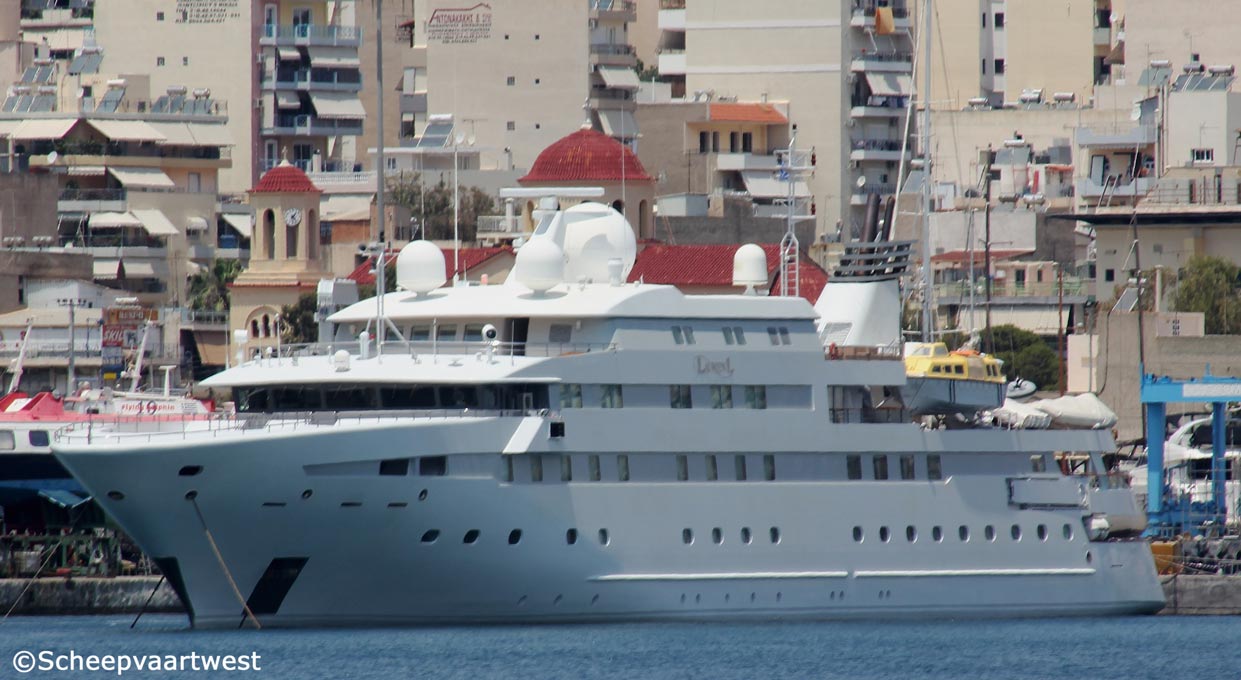

Perama - Greece 07 June 2014

Name

LAUREN L

Previous names

06.2002 - 11.2002 Sun Bay II

11.2002 - 11.2003 Corinthian

11.2003 - 07.2007 Constellation

07.2007 Lauren L

Type

Passengers vessel with cabins - Cruise

IMO-number

9246827

Call sign

ZGDH6

Flag

Cayman Islands

Previous flags

06.2002 - 2003 Nassau - Bahamas

2003 - 07.11.2007 Kingstown - St. Vincent & Grenada

07.2007 Valletta - Malta - Call sign: 9HNJ9

Port of registry

The Creek

GT

2.991 t

DWT

Summer: 445 t

NT

897 t

Length

88,50 m overall

78,66 m registered

Breadth

14,00 m registered

Draught

3,97 m

Depth

5,85 m moulded

Speed

Service: 14,0 knots

Max.: 16,0 knots

Built

2002

09.2007 - 04.2008 Extensive remodelling in Greece. Among other things, added a new deck with several large cabins.

Keel laid

29.06.2001

Launch date

10.11.2001

Date of completion

05.06.2002

Builder

Schiffswerft und Maschinenfabrik Cassens GmbH
II. Hafeneinschnitt
26723 Emden
Federal Republic of Germany

Yard number

30235

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

5

Main engine

1x Mak 6M25 - 4 stroke single acting 6 cylinder 400 x 255 mm diesel engine - 1.850 kW / 2.500 hp at 750 rpm

Year of manufacture: 2001

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 253 rpm

Electric installations

2x Plants each 380/220 V - 950 kVA

1x Plant 380 V - 800 kVA

1x Plant 380 V - 175 kVA

Shaft generator

1x 800 kVA

Generators

2x Main diesel generatorsets each 950 kVA

Emergency generator

1x Diesel generatorset 175 kVA

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

1x Receiver 10 litres - 30,0 bar

Bow thruster

1x Transverse thruster Jastram - 220 kW, aft

1x Transverse thruster Jastram - 220 kW, forward

Water ballast

420 m³

Anchor equipment

3x Anchors weight each 1.590 kg

Chain length: 412,50 m

Passengers deck

4

Number of passengers

40

Crew size

50

Manager

Megayacht Technical Services International Inc.
1845 Cordova Road, Suite 201
Fort Lauderdale, Florida
United States of America

Operator

Sun Bay Cruises Ltd., Nassau - Bahamas
Helios Shipping Ltd
Constellation Ltd. (Liveras Yachts), Monaco

Registered owner

Sigmabee Ltd.
Clinchs House Lord Street
Douglas
United Kingdom

Latest data adjustment

13 August 2014
