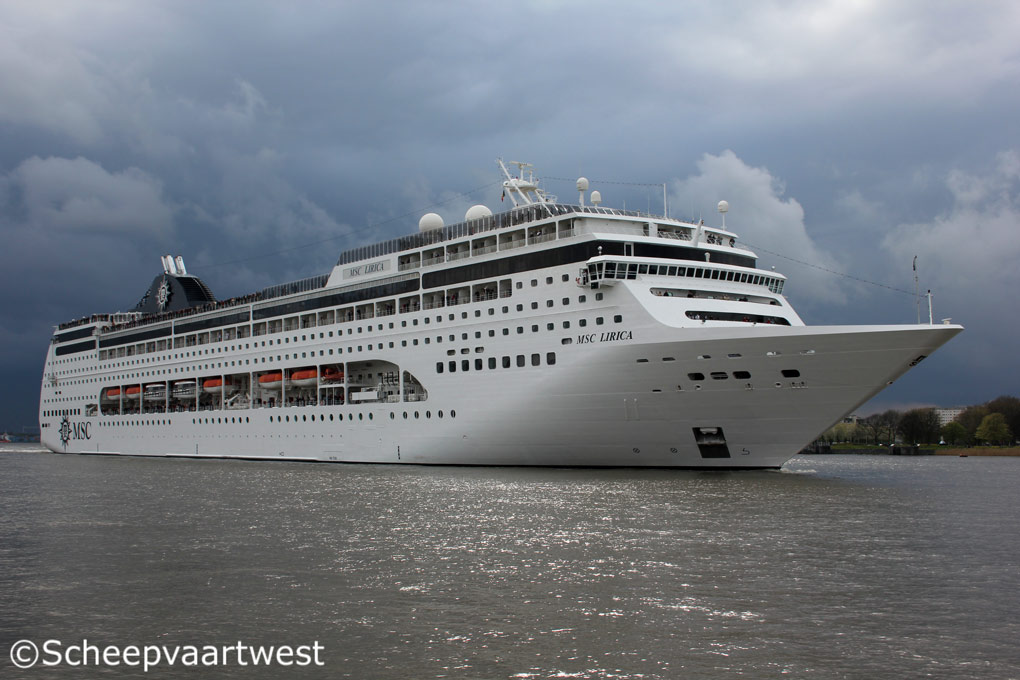

MSC Lirica 08
Antwerpen 20 April 2012

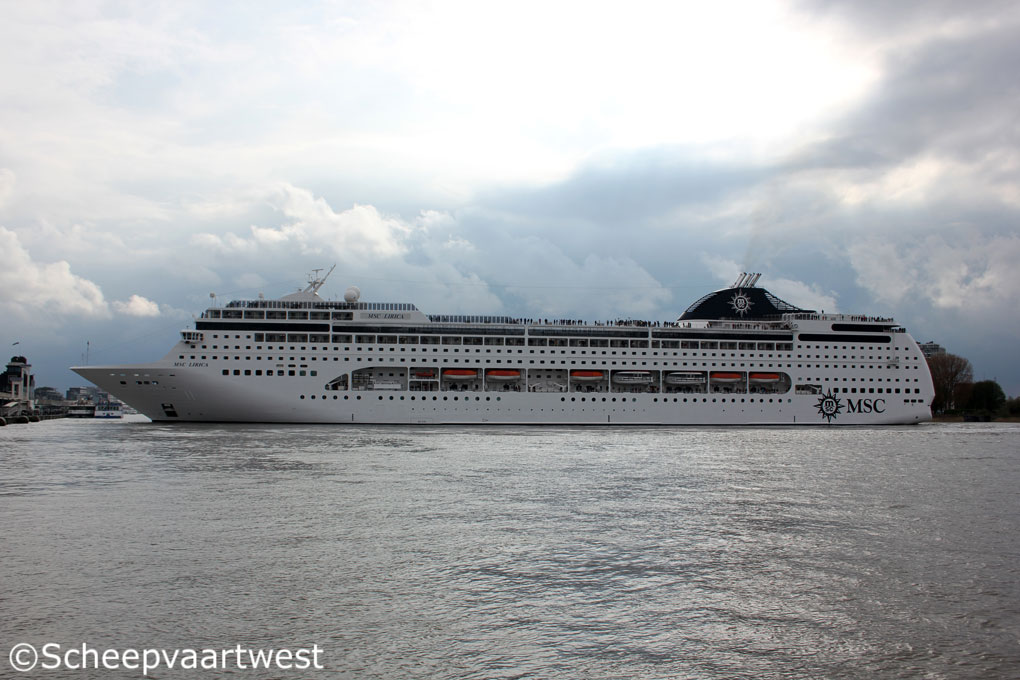

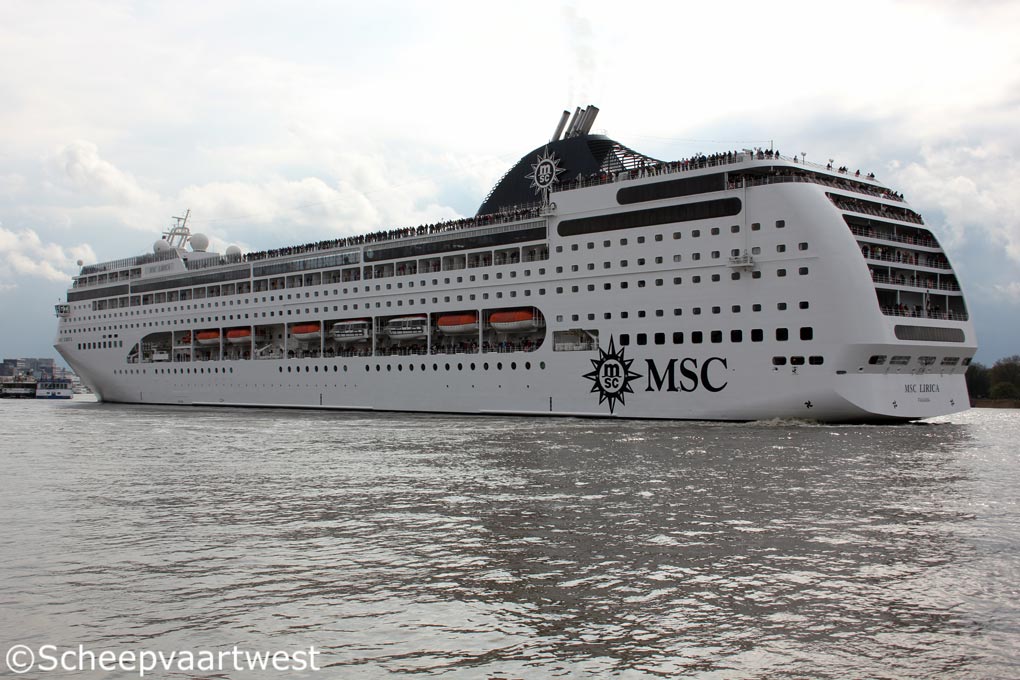

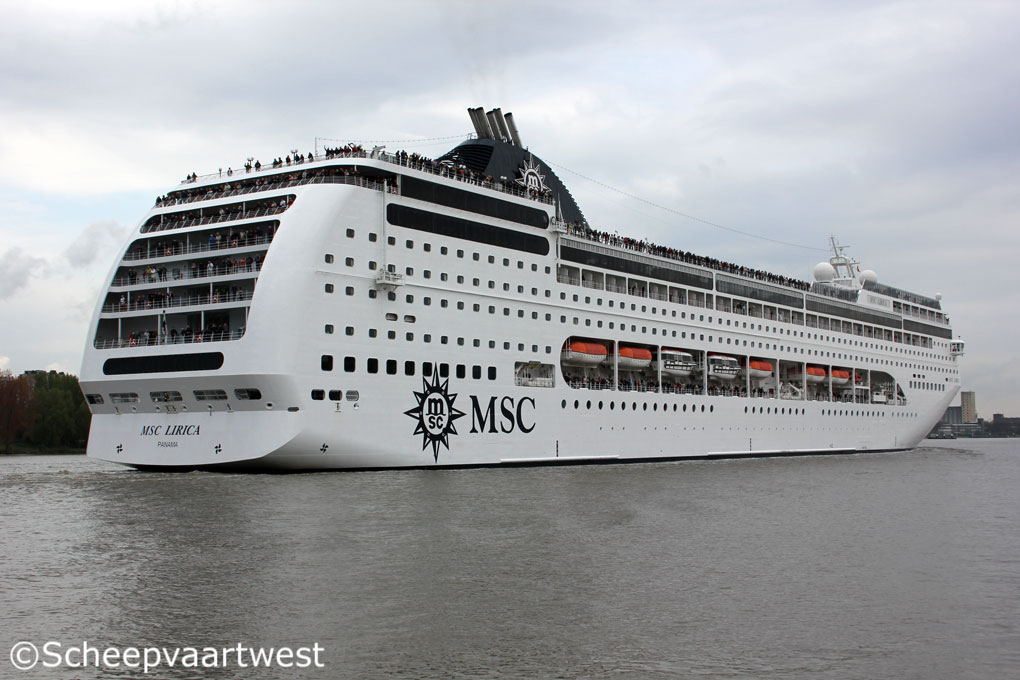

MSC Lirica 03   MSC Lirica 02   MSC Lirica 09
20/04/12   20/04/12   20/04/12



Name

MSC LIRICA

Type

Passenger ship - Cruise

IMO-number

9246102

Call sign

HOPW

Flag

Republic of Panama

Port of registry

Panama City

GT

59.058 t

DWT

6.561 t

NT

33.747 t

Length

251,25 m overall

222,25 m between perpendiculars

Breadth

28,80 m extreme

Draught

6,80 m

Freeboard

Summer: 3.204 mm

Depth

34,85 m moulded

Speed

21,5 knots

Built

2003

Date of completion

24.03.2003

Builder

STX France SA (Chantiers de l'Atlantique)
Nantes Saint Nazaire
France

Yard number

K32

Hull material

Steel

Hull type

Single hull

Watertight compartments

19

Continuous decks

14

Main engine

Diesel/electric:

4x Wärtsilä type 12V/38A diesel engines - total output 30.600 kW at 600 rpm

Electrical propulsion engine

2x Alstom pods output each 10.000 kW total 27.174 hp at 170 rpm

Builder: Alstom Marine, Nancy - France

Electrical propulsion gen.

4x 7.650 kW - 6.600 Volt

Propelling system

1x Pod solid - at 170 rpm
1x Pod solid - at 170 rpm

Boilers

2x CHO 85,10 m² - 8,0 bar
4x CHR 218,00 m² - 8,0 bar

Electrical installation

Power voltage: 6.600 V

Lighting voltage: 220 V

Frequency: 60 Hz

Emergency generator

1x Diesel generatorset 938 kVA - 750 kW - 1.202 hp

Cargo holds

23

Hold capacity

1.722 m³

Passengers decks

9

Pass. cap. lower beds

1.560

All berths

2.199

Manager

MSC Mediterranean Shipping Co.
Avenue Eugene-Pittard 40

1206 Geneva,
Switzerland

Operator

MSC Cruises - Italy

Owner

Newco Lirica SA
Care of MSC Mediterranean Shipping Co. SA
Avenue Eugene-Pittard 40
1206 Geneva
Switzerland
