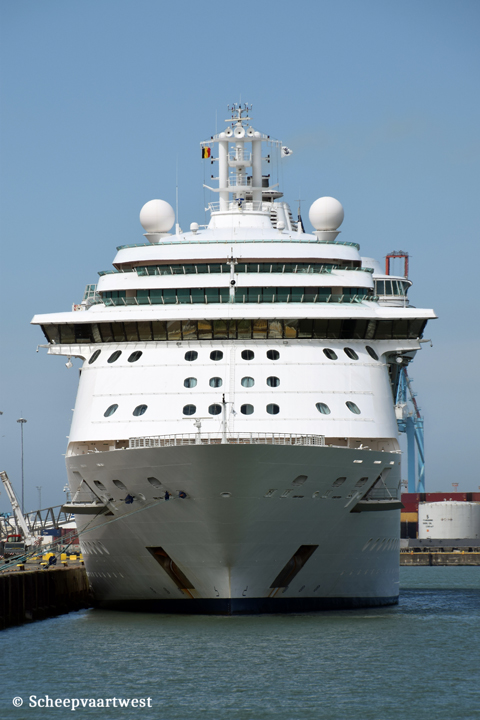

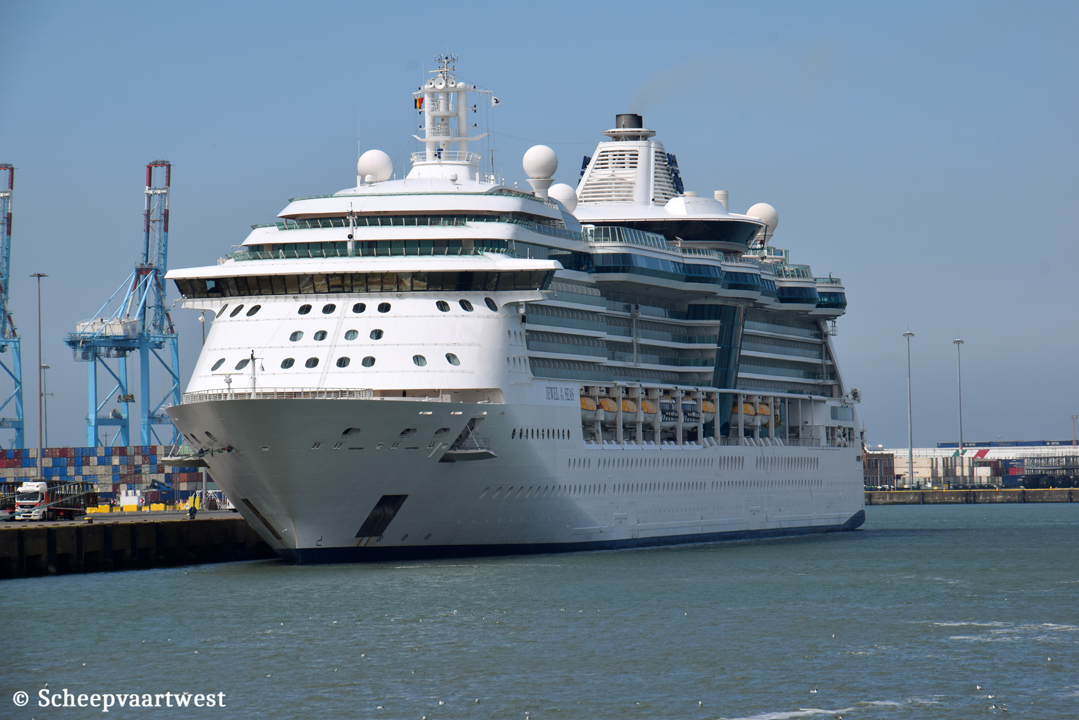

| Zeebrugge 12 May 2022 |
 |
 |
 |
||

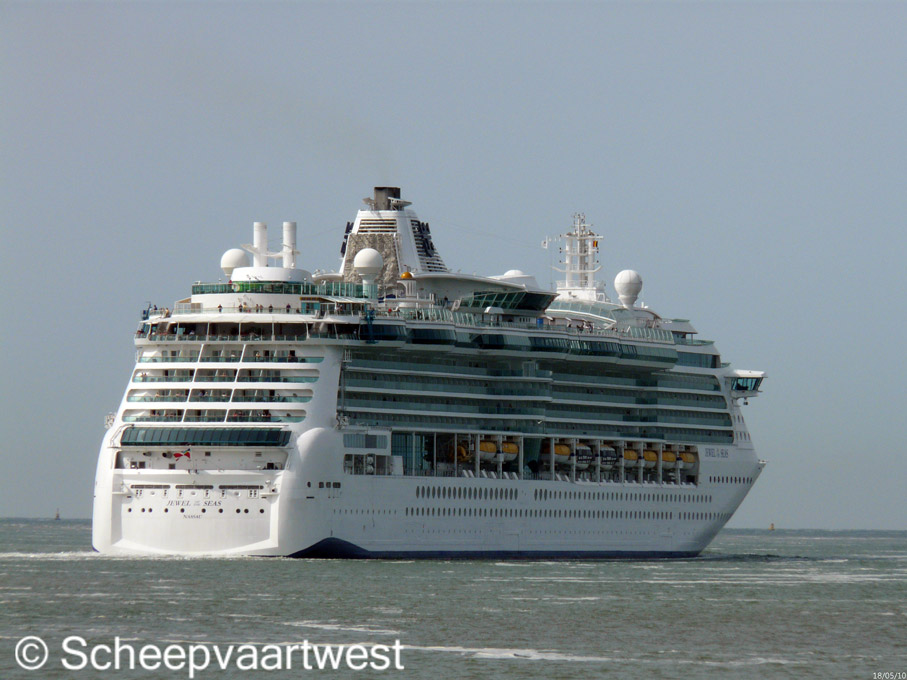

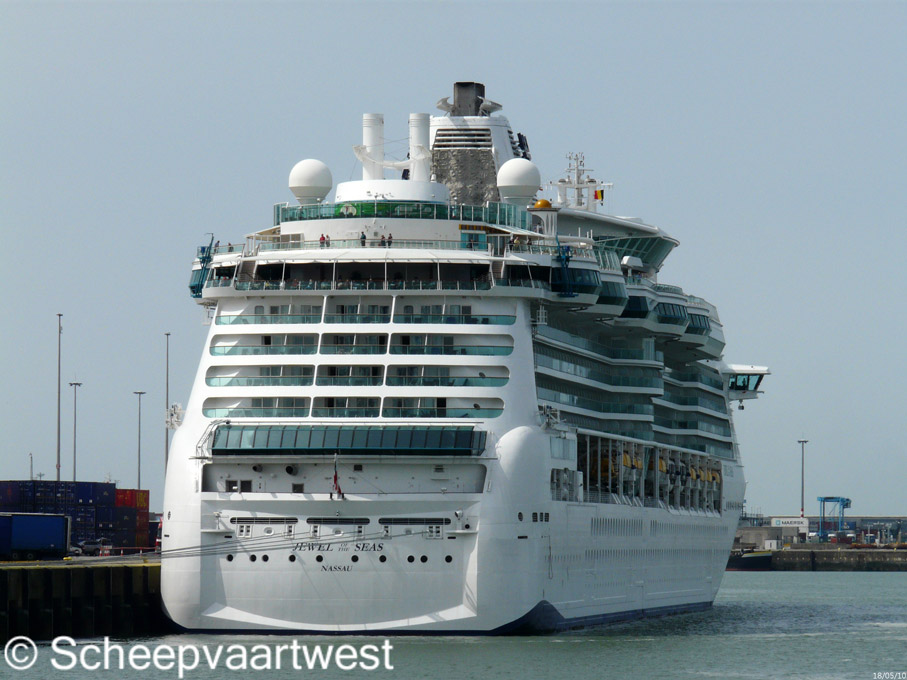

| Zeebrugge 18/05/10 | Zeebrugge 18/05/10 | Zee 12/05/22 |
|
Name |
JEWEL OF THE SEAS |
|
Type |
Passengers ship - Cruise ship Radiance-class cruise ship |
|
IMO-number |
9228356 |
|
Call sign |
C6FW9 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
90.090 t |
|
DWT |
11.936 t |
|
NT |
53.825 t |
|
Length |
293,20 m overall 266,23 m m between perpendiculars |
|
Breadth |
39,20 m registered 39,80 m extreme |
|
Draught |
Summer: 8,62 m |
|
Keel to mast end |
61,00 m |
|
Freeboard |
1.508 mm |
|
Depth |
10,70 m |
|
Speed |
Max.: 25,0 knots Cruising: 24,0 knots |
|
Built |
2004 |
|
Keel laid |
26/09/2001 |
|
Date of completion |
22/04/2004 |
|
Maiden voyage |
08/05/2004 |
|
Builder |
Meyer Werft GmbH Papenburg Germany |
|
Yard number |
658 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
Transverse: 19 |
|
Main engine |
2x General-Electric gas turbine type LM 2500 and 1x steam turbine Total installed power: 78.600 hp / 59.000 kW |
|
Propulsion |
Diesel electric 2x Azimuthing pods - power each 19.500 kW - ABB Oy, Marine & Turbocharging |
|
Boilers |
1x Auxiliary boiler, exhaust gas water tube Mission XW - Aalborg Industries - Denmark 2x Auxiliary boiler, exhaust gas water tube - Deltac Plymouth 1x Auxiliary boiler, vertical shell type - Aalborg Mission OS 5400 |
|
Generators |
1x MAN-B&W 18VP185 main diesel generatorset 4.000 kW - Paxman MAN B&W 1x Wärtsilä 38B 16V main diesel generatorset 8.000 kW- Wärtsilä Italia Spa. 2x Main generator gas turbine (Gas Turbine) LM 2500 - General-Electric each 25.000 W 1x Main generator steam turbine (Steam turbine) 56B - Fincantieri - 7.800 kW |
|
Bow thruster |
3x Rolls Royce 3000CP-KI each 2.010 kW |
|
Passenger capacity |
Lower beds: 2.188 All berths: 2.501 |
|
Number of cabins |
995 |
|
Passenger decks |
12 |
|
Number of decks |
15 |
|
Ballast capacity |
3.738,66 m³ |
|
Anchor chain |
Length: 742,50 m Diameter: 97 mm |
|
Crew |
798 |
|
Commercial manager |
Royal Caribbean Cruises Ltd. Marine Operations (3rd Floor) 1050 Caribbean Way 33132 2028 Miami United States od America |
|
ISM manager |
RCL Cruises Ltd. Building 3, Aviator Park, The Heights, Brooklands, Weybridge, Surrey, KT13 0NY United Kingdom |
|
Operator |
Royal Caribbean Cruise Line |
|
Registered owner |
Jewel of The Seas Inc. Care of Royal Caribbean Cruises Ltd (RCL) 1050, Caribbean Way Miami FL 33132-2028 USA |
|
Latest dat adjustment |
16 May 2022 |
