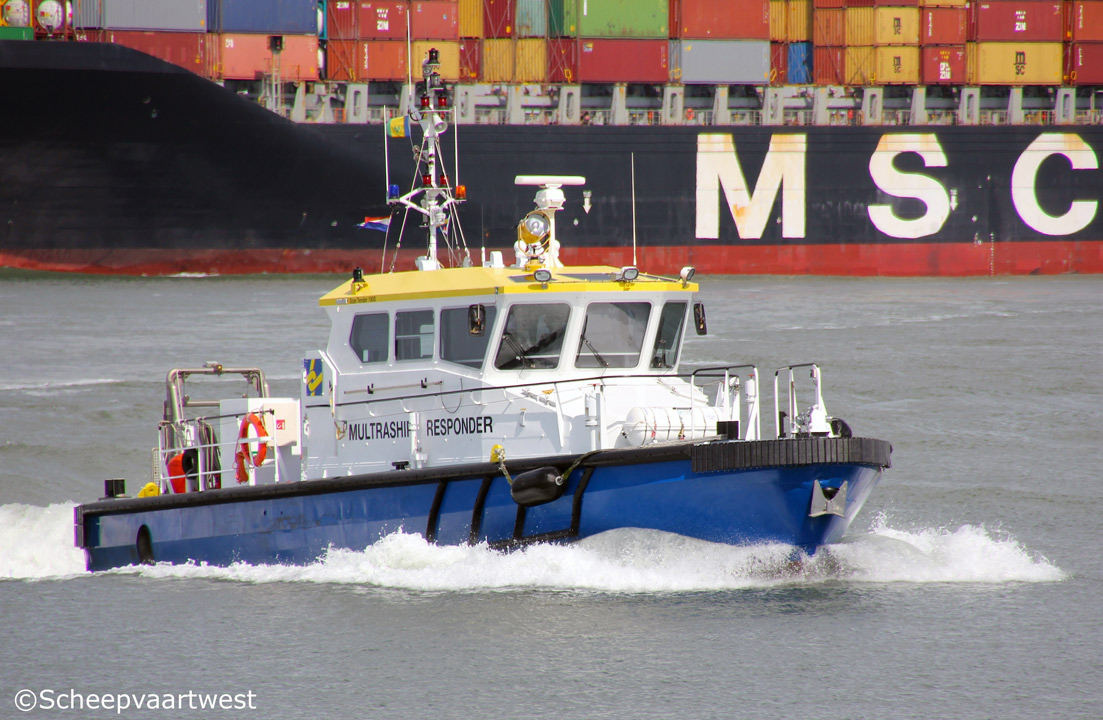

Multraship Responder 02

Terneuzen 21 August 2017

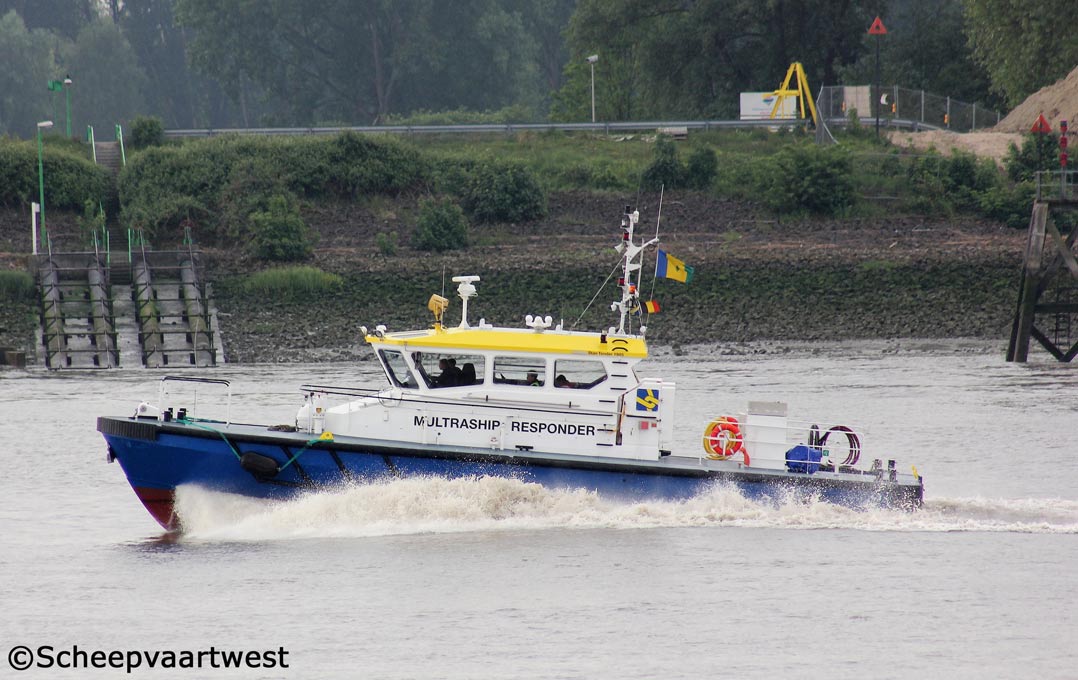

Multraship Responder 01
Antwerpen 22/05/15



Name

MULTRASHIP RESPONDER

Type

Crew boat - Port tender - Fast utility vessel

Call sign

J8B5243

Flag

Saint Vincent & Grenadines

Port of registry

Kingstown

GT

59 t

NT

43 t

Length

19,15 m overall

18,90 m between perpendiculars

Breadth

5,30 m overall

Draught

Max.: 1,80 m

Depth

2,70 m at sides

Speed

28,5 knots

Built

2015

Date of completion

04.02.2015

Builder

Damen Shipyards Changde Co., Ltd/
Changde
China

Yard number

542415

Hull material

Steel

Watertight compartments

6

Continuous decks

1

Main engine

2x Caterpillar C32 TTA - 4 stroke 12 cylinder 145 x 162 mm diesel engine 1.790 KW / 2.432 hp at 2.000 rpm

Builder: Caterpillar Inc.

Gearbox

2x Reintjes WVS 430/1

Propellers

2x Fixed pitch propellers - aft at 814 rpm

Generators

1x Generatorset 16 kW - 20 kVA - 24 hp - 230/400 Volt

Engine room ventilation

2x 10.000 m³/h

General service pump

Electrically driven, 400 Volt Azcue CA-50 - 24,0 m³/h

Diesel powered salvage pump

Hatz 1B20

Electric submersible pump capacity

19,2 m³/h

Tank capacities

Fuel oil: 5,9 m³

Fresh water: 0,5 m³

Dirty oil/ bilge water: 0,2 m³

Accommodation

2x Cabins

1x Galley

Manager

Multraship Towage & Salvage
Scheldekade 48
4531 EH Terneuzen
The Netherlands

Registered owner

B.V. Scheepswerf en Machinefabriek v/h A. van de Grijp

Latest data adjustment

07 June 2015
