Mantelmeeuw ENI 03900055 07

Westerschelde 09 February 2019

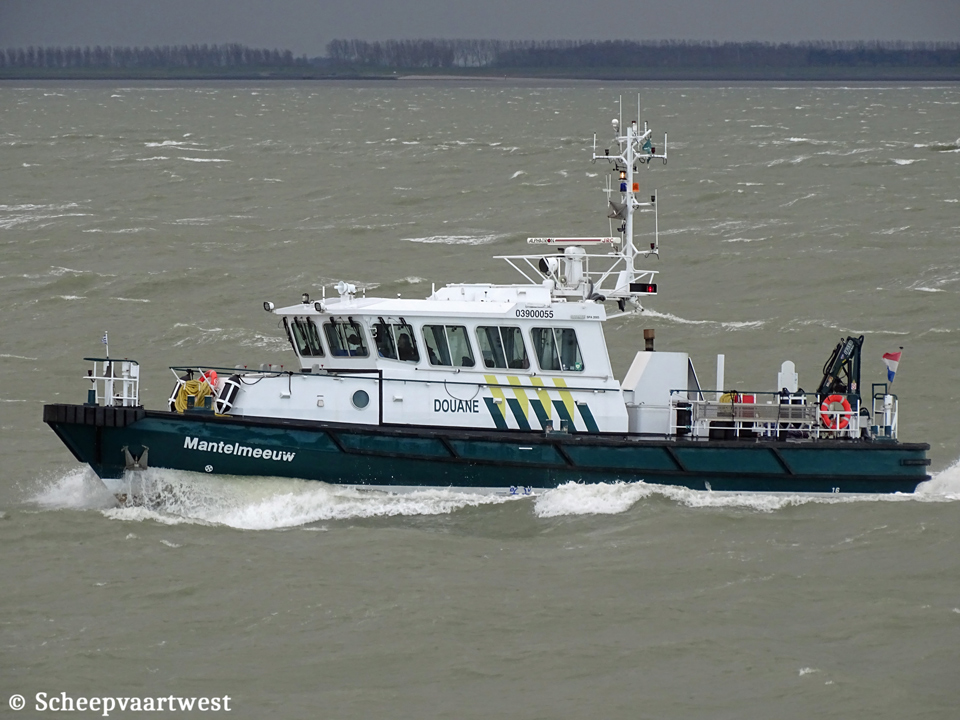

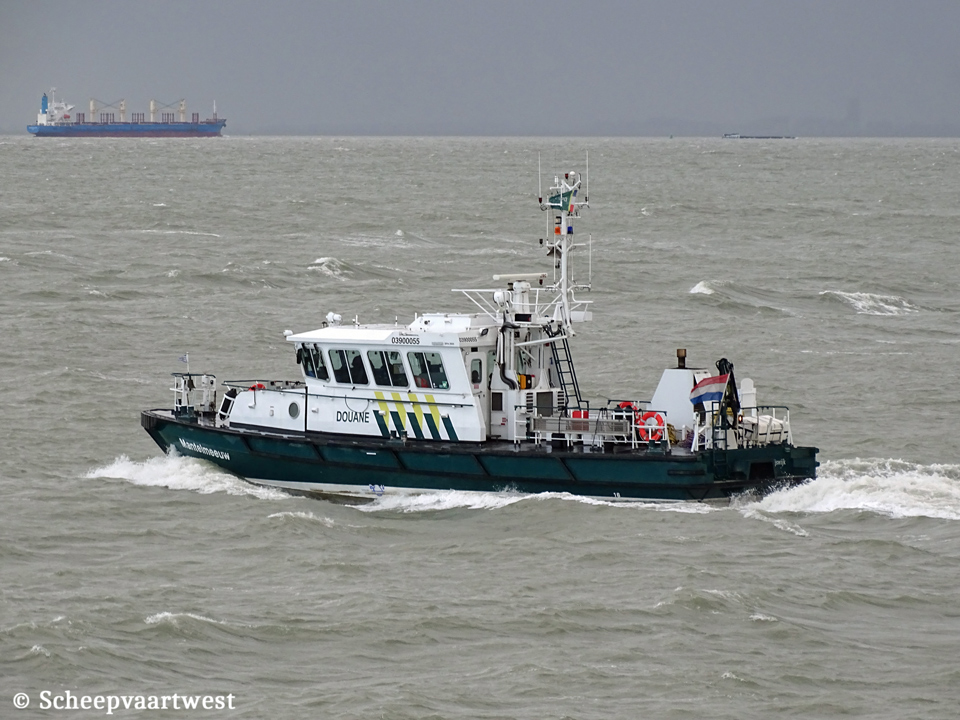

Mantelmeeuw ENI 03900055 08   Mantelmeeuw ENI 03900055 09
Westerschelde 17/02/20 Westerschelde 17/02/20


Name

MANTELMEEUW

Type

Douane

ENI-number

03900055

Call sign

PFAV

Flag

The Netherlands

Port of registry

Rijswijk

GT

49 t

Length

19,80 m

Breadth

5,45 m

Draught

1,50 m

Depth

2,30 m

Speed

24,0 knots

Built

2004

Keel laid

2003

Launch date

2004

Date of completion

03/06/2004

Builder

Damen Shipyards

Gorinchem

The Netherlands

Yard number

548908

Continuous decks

1

Main engine

2x MAN B&W D2840LE401 - 4 stroke single acting 10 cylinder 128 x 140 mm combustion engine total 1.206 kW / 1.640 hp at 2.300 rpm

Starter type: Electrical starter

Built: 2003

Manufacturer: MAN B&W Diesel GmbH - Germany

Gearbox

2x Reverse reduction gears ZF 550A

Propellers

2x Solid propellers - aft at 914 rpm

4 blades

Electric installations

400/230 Volt - 50 Hz

Generators

1x Yanmar 4TNV84T - 4 cylinder 84 x 90 mm diesel engine 20 kW coupled with Kohler 20EFOZD generator 25 kVA at 1.500 rpm

Bow thruster

1x Promac HFP 25-390 - 18 kW

Tank capacities

Potable water: 0,20 m³

Fuel oil: 3,10 m³

Dirty oil: 0,20 m³

Sewage: 0,40 m³

Bilge water: 0,20 m³

Anchor equipment

2

Weight: 40 kg

Lifting equipment

1x Deck crane Pallfinger PC 2300 MBV1 - SWL 2,3 t

Navigation & communications

1x Compass

1x Autopilot

1x Echo Sounder

2x VHF

1x Radar

1x GPS

Owner

Rijkswaterstaat Rijksrederij

Rijswijk

The Netherlands

Previous names & owners

2004 - 2009 Mantelmeeuw - Douane in Rotterdam - The Netherlands

Latest data adjustment

10 January 2018
