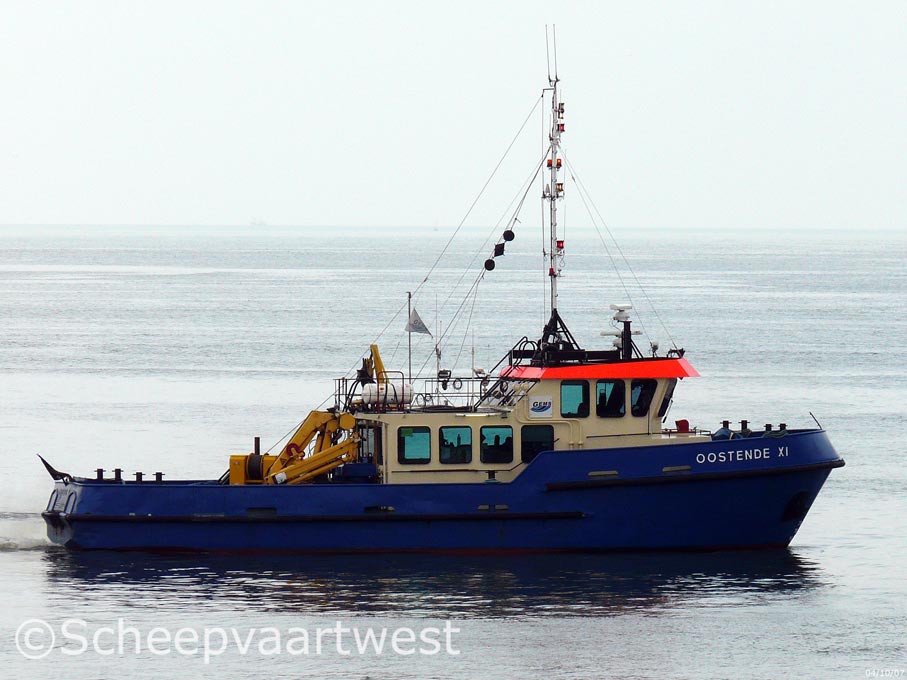

Oostende XI 01
Zeebrugge 04 October 2007

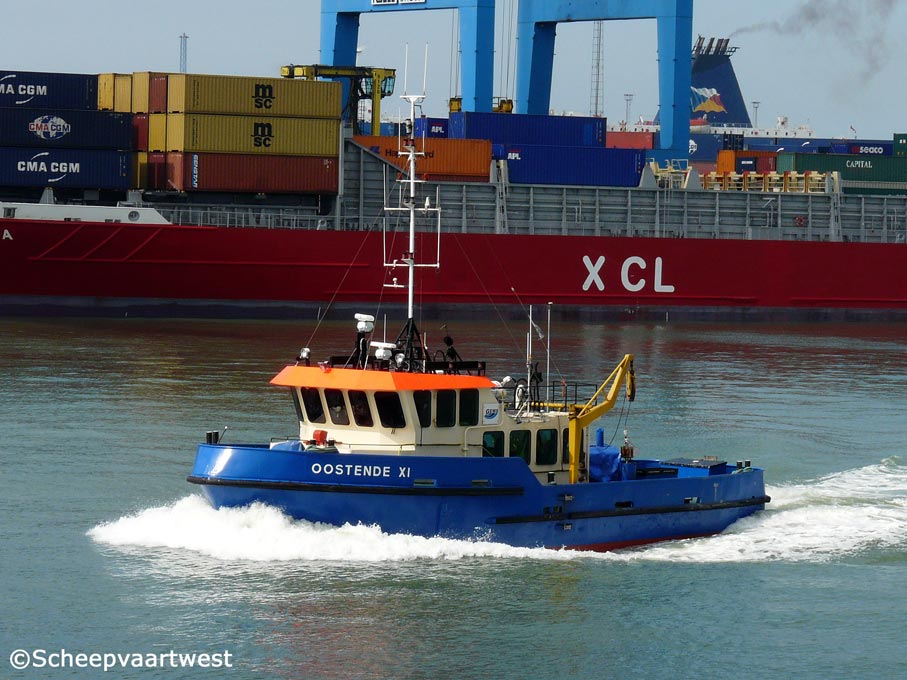

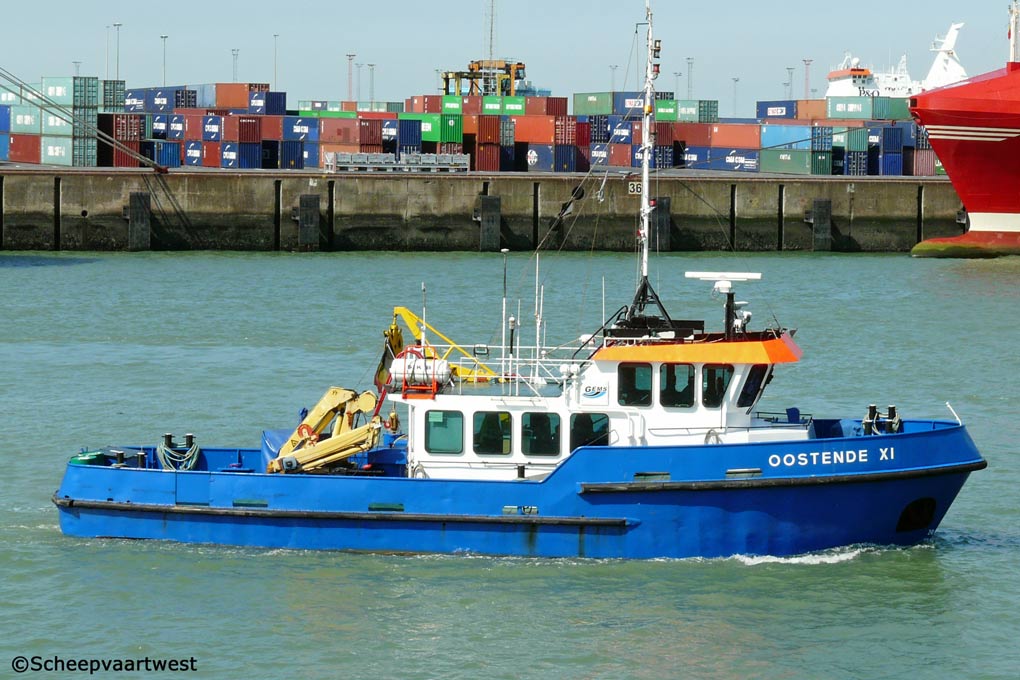

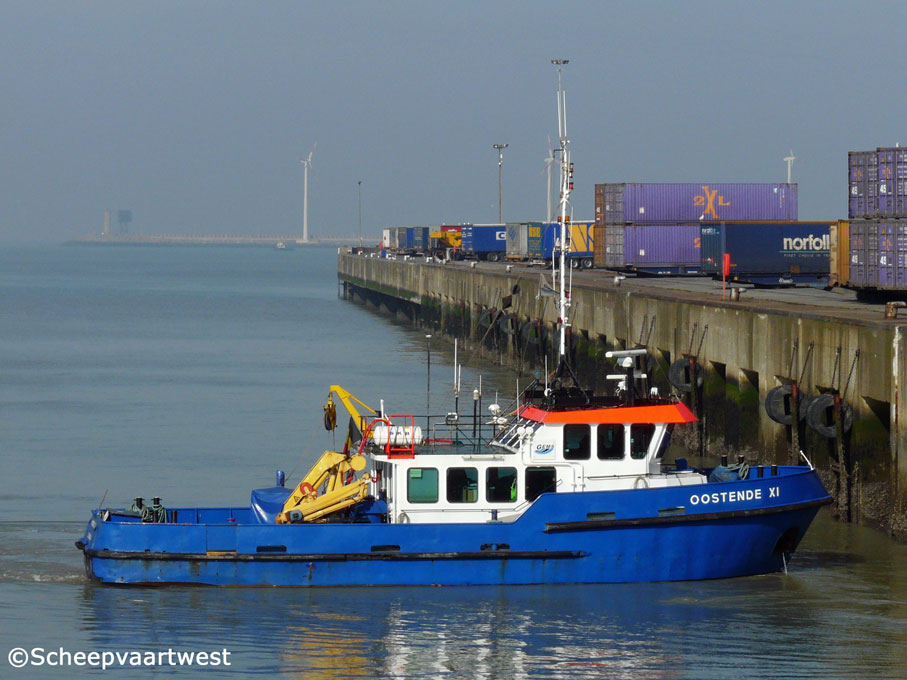

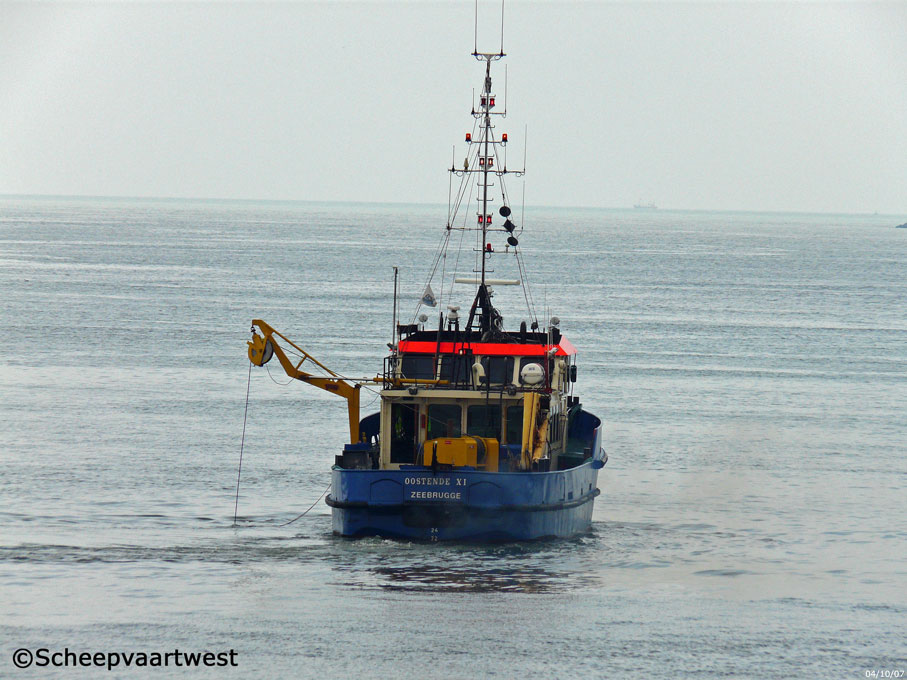

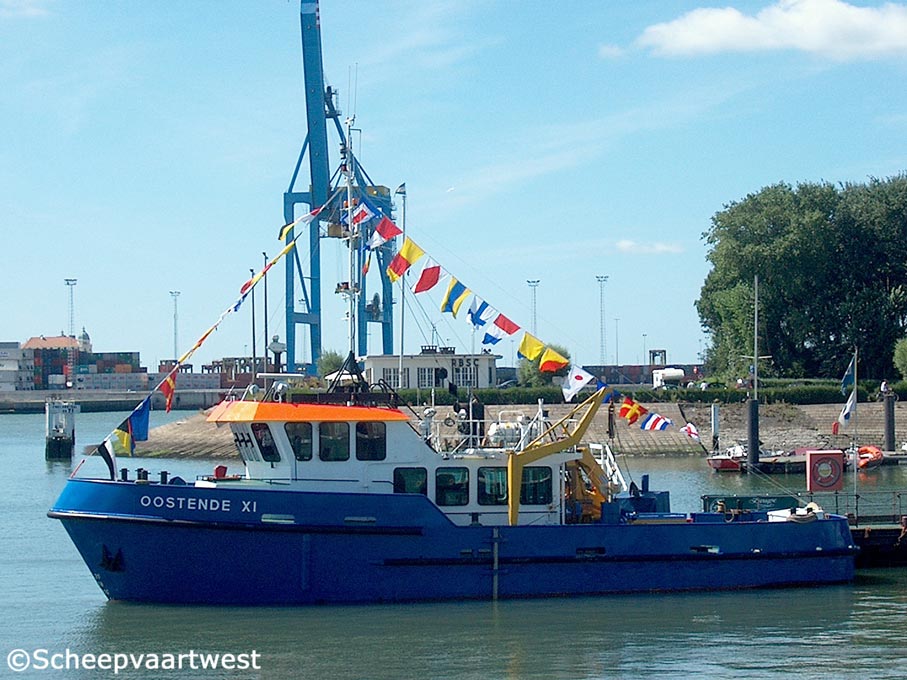

Oostende XI 14   Oostende XI 12   Oostende XI 03   Oostende XI 16   Oostende XI 15
Zeebrugge 11/04/08 Zeebrugge 04/10/07 Zeebrugge 15/08/03 Zeebrugge 01/09/11   Zeebrugge 22/02/11


Name

OOSTENDE XI

Type

Sounding boat - Survey boat

Service

Port siltation studies

Surveys for dredging assessment and monitoring

Environmental studies, river channel modelling

Site investigations

Wreck surveys

Cable and pipeline survey

Registration number

01 00087 1996

Call sign

ORVI

Flag

Belgium

Port of registry

Zeebrugge

GT

83 t

NT

24 t

Length

21,11 m overall
19,13 m between perpendiculars

Breadth

6,40 m

Draught

2,06 m summer load-line

Height

13,00 m above waterline

Depth

2,75 m

Speed

Cruising: 10,8 knots

Built

1988

Date of completion

29.06.1988

Builder

Industrie De Pecheries
Oostende
Belgium

Yard number

16

Hull material

Steel

Continuous decks

1
Machinery aft

Main engine

2x Caterpillar 3406B - 4 stroke 6 cylinder 137 x 165 mm internal combustion engine - 554 kW / 752 hp at 1.800 rpm

Built: 1988

Propeller

2x Screw Propeller Solid - at 468 rpm

3 bladed - diameter 1.200 mm

Electrical installation

Power voltage: 380 V

Lighting voltage: 220 V

Generators

2x Generatorsets each 50 kVA - 40 kW - 55 hp

Deck crane

1x Sea crane HIAB 120 with 5,3 t on 2,00 m and 1,4 t on 8,20 m lifting capacity

Deck equipment

Derrick: IDP 2 ton
Swell compensator TSS 320-B
Navitracker
Electric shore connection
Electric No-break connection
Daikin air conditioning

UPS Electric Generators 60 & 40 kVA,

Tank capacities

Fuel oil: 46 m³
Fresh water: 3 m³

Safety equipment

1x Raft for 10 persons

Navigation equipment

JRC main radar JMA 5110 & JMA 2254

JRC auxiliary radar

VHF Radios: Liton TR 4822 & Sailor RT2048

Emergency handset Sperry 3110

Raytheon Loudhailer

Raytheon echosounder

AIS JHS182

IXSEA Octans FOG

GPS Chartplotter Raymarin C120

Survey equipment

Positioning: Thales Aquarius 02 LRK receiver

Sounding: EM 3002 Multibeam, ATLAS Deso 35 echosounder

Geophysical: Vertical Density Profiler, Mag03 magnetometer, side scan sonar

Environmental: Acoustic Doppler profiler, Turbidity sensor, CTD

Heading & Motion: IXSEA Octans heading & motion sensor

Survey Software: Qinsy

Accommodation

Shower room, kitchen, toilet, air conditioner, 2 berth

Owner

Gems International N.V.
Marcus Gerardstraat 1
8380 Zeebrugge
Belgium

Renamed

2013 Geosurveyor XI
