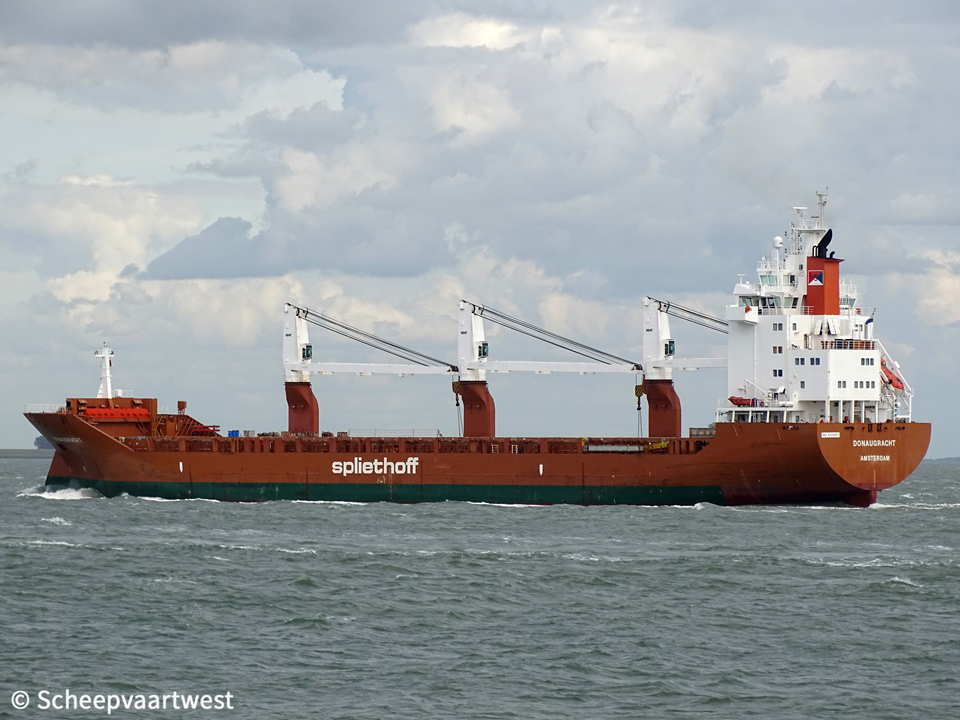

Donaugracht 01

Westerschelde 15 August 2019



Name

DONAUGRACHT

Type

Multi-Purpose general cargo

IMO-number

9420837

Call sign

PBSY

Flag

The Netherlands

Port of registry

Amsterdam

GT

13.558 t

DWT

17.556 t incl. tween deck

18.143 r excl. tween deck

NT

5.981 t

Number of 20ft containers

In hold: 470

on deck: 599

Total: 1.069

Length

156,93 m overall

147,75 m between perpendiculars

Breadth

22,80 m moulded

Draught

Max: 10,28 m

Depth

14,00 m moulded

Speed

Max: 17,0 knots

Built

2009

Delivery date

30/10/2009

Builder

Jinling Shipyard

Nanjing

China

Yard number

JLZ 060407

Hull material

Steel

Hull type

Single hull

Continuous decks

1

Main engine

1x Wärtsilä 8L46 - 4 stroke single acting 8 cylinder 460 x 580 mm combustion engine 8.400 kW /11.415 bhp

Propellers

1x Fixed pitch propeller

Bow thruster

1x 850 kW

Number of holds

2

Cargo hold capacity

Hold 1: 208.000 ft³ / 5.890 m³

Hold 2: 557.250 ft³ / 15.780 m³

Total: 765.250 ft³ / 21.670 m³

If tween deck installed 53.000 ft³ / 1.500 m³ less in hold

Hold ventilation

Hold 1: 20x Air changes/h

Hold 2: 15x Air changes/h

Hatches

Weather deck:

Hatch 1: 32,00 x 12,70 m

Hatch 2: 70,40 x 17,80 m

Steel, end folding/rolling/lift away type

Tween deck:

Hatch 1: 25,80 x 17,80 m

Hatch 2: 64,00 x 17,80 m

Consisting: 15 steel pontoons

1 of 6,37 x 9,30 m

1 of 6,37 x 12,60 m

1 of 6,37 x 15,15 m

10 of 6,37 x 17,70 m

2 of 3,17 x 17,72 m

Floor space

Tanktop: 1.423 m²

Tween deck: 1.790 m²

Weather deck: 1.760 m³

Max. permitted loads

Weather deck hatch covers: 2,60 t/m²

Tweendeck hatch covers:

Hatchway 1:

7,50 t/m², forward

5,50 t/m,² aft

Hatchway 2:

5,50 t/m²

20,00 t/m²

Tank capacities

Ballast : 6.675 m³

Fuel oil: 1.575 m³

Diesel oil: 280 m³

Cargo gear

3x NMF cranes starboard side

SWL 120 t @ 16,00 m

SWL 90 t @ 21,00 m

SWL 55 t @ 30,00 m

Crew size

29

Manager

Spliethoff's Bevrachtingskantoor B.V.

Radarweg 36

1042 AA Amsterdam

The Netherlands

Registered owner

Rederij Donaugracht

Amsterdam

The Netherlands

Previous owners

10/2009 - 01/2012 C.V. Scheepvaartonderneming Donaugracht

Amsterdam

The Netherlands

Latest data adjustment

17 April 2020
