Westerschelde 10 January 2020 |
|
Name |

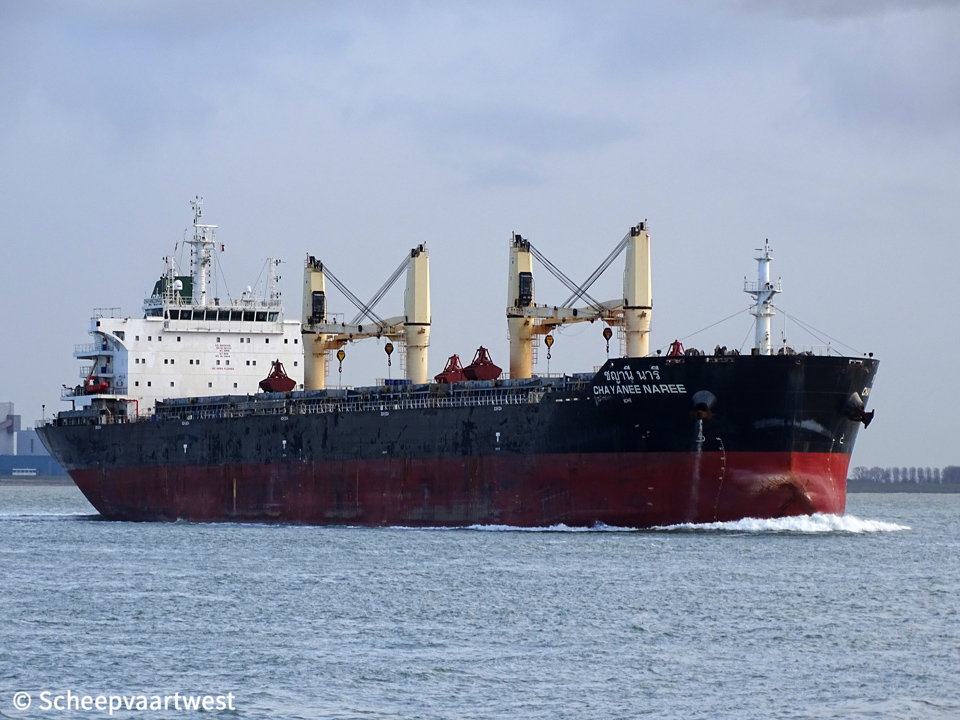

CHAYANEE NAREE |
|
Type |
Bulk carrier - Handysize |
|
IMO-number |
9613434 |
|
Call sign |
S6AF2 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
33.032 t |
|
DWT |
Summer: 56.547,90 t Winter: 54.977,20 t |
|
NT |
19.231 t |
|
Length |
189,99 m overall 185,00 m between perpendiculars |
|
Breadth |
32,26 m |
|
Draught |
Summer: 12,80 m Winter: 12,53 m |
|
Freeboard |
5.224 mm |
|
Depth |
18,00 m moulded |
|
Speed |
14,0 knots laden 14,5 knots ballast 12,5 knots economic |
|
Built |
2012 |
|
Date of completion |
22/10/2012 |
|
Builder |
Yangzhou Guoyu Shipbuilding Co., Ltd. Yizheng City China |
|
Yard number |
GY809 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6RTFLEX-50B - 2 stroke 6 cylinder 500 x 2.050 mm combustion engine 9.480 kW / 12.880 hp at 124,0 rpm Build: 12/01/2012 Builder: Qingdao Qiyao Wärtsilä MHI Linshan Marine Diesel C, Qingdao - China |
|
Propellers |
1x Screw propeller solid- aft at 124 rpm |
|
Boilers |
1x CHM 193,00 m² - 7,0 bar |
|
Generators |
3x Main diesel generatorsets each 750 kVA - 600 kW - 897 hp |
|
Emergency generator |
1x Diesel generatorset 124 kVA - 99 kW - 163 hp |
|
Number of cargo holds |
5 |
|
Total capacity of holds |
Hold 1: 13.009,86 m³ Hold 2: 15.333,25 m³ Hold 2: 14.553,08 m³ Hold 4: 15.333,27 m³ Hold 5: 13.404,64 m³ Total: 71.634,1 m³ |
|
Number of hatches |
5 Hatch 1: 18,86 x 18,26 m Hatch 2: 21,32 x 18,26 m Hatch 3: 21,32 x 18,26 m Hatch 4: 21,32 x 18,26 m Hatch 5: 21,32 x 18,26 m |
|
Hatch type |
Folding type |
|
Max permitted loads |
Tanktop: Holds 1, 3 & 5: 25,0 t/m² Holds 2 & 4: 20,0 t/m³ Deck and hatch cover loading not allowed |
|
Pumps |
2x Ballast pumps each 800 m³/h |
|
Tank capacities |
Fuel: 2.394,84 m³ |
|
Cargo gear |
4x MacGrego deck cranes SWL: 36,0 t for hook use and 28,0 t for grab use Grabs: 4x 12,5 m³ Smag-Peiner electro hydraulic |
|
Manager |
Precious Shipping Public Company Limited No. 8, 7th Floor North Sathorn Road Silom Bangrak Bangkok 10500 Thailand |
|
Registered owner |
Precious Visions Pte Ltd. Republic of Singapore |
|
Latest data adjustment |
01 April 2020 |
