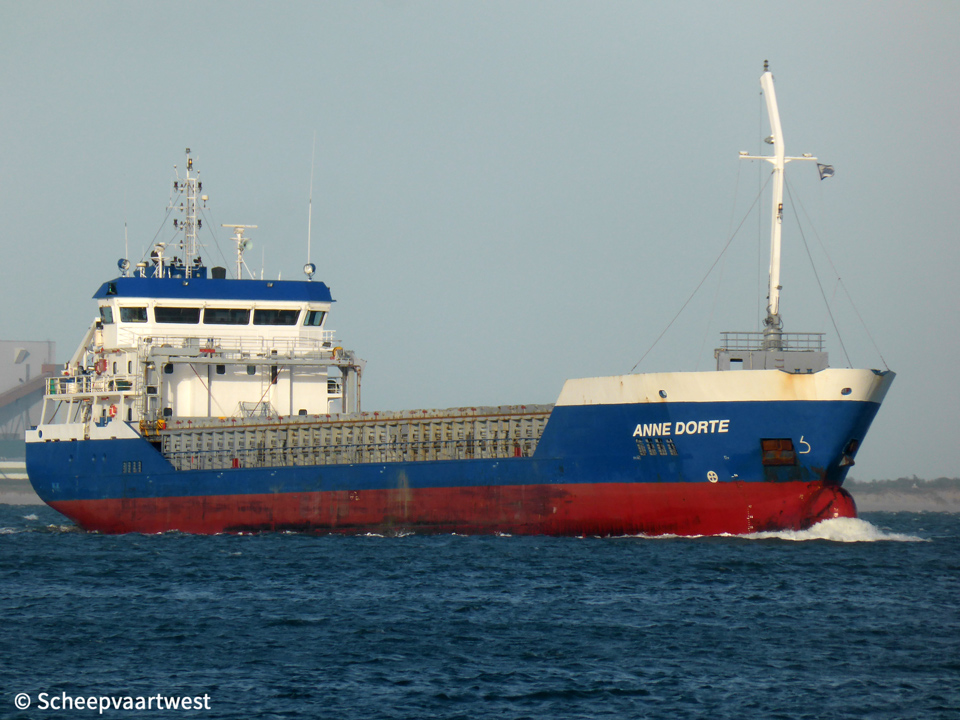

Anne Dorte 01

Westerschelde 08 June 2015

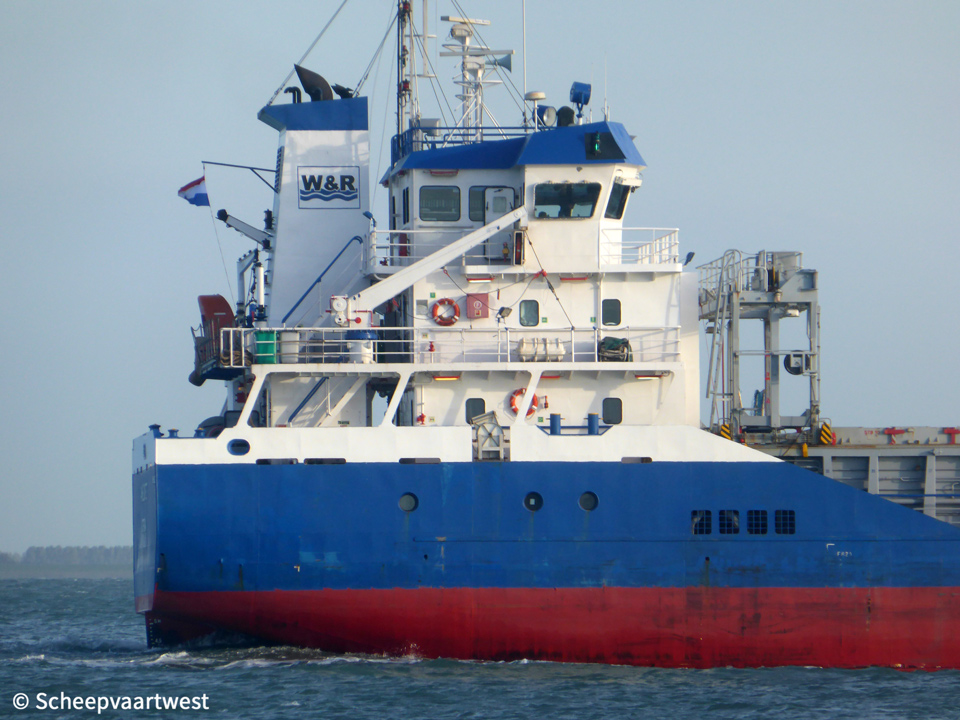

Anne Dorte 02
Westerschelde 08/06/15













Name

ANNE DORTE

Type

General cargo ship - Heavycargo - Equipped for carriage of containers

Box type / flush tweendecker

IMO-number

9466233

Call sign

PCKF

Flag

The Netherlands

Port of registry

Rotterdam

GT

2.622 t

DWT

3.397 t

DWCC

Summer: 3.000 t

Winter: 2.900 t

NT

1.421 t

Number of 20ft containers

In hold: 105

On deck: 56

Total: 161

Number of 40ft containers

In hold: 48

On deck: 28

Total: 76

Length

88,30 m overall

83,44 m between perpendiculars

Breadth

12,95 m

Draught

Summer: 5,40 m

Winter: 5,28 m

Ballast: 4,00 m

Air draft

Fully loaded: 20,00 m

In ballast: 21,50 m

Freeboard

1.614 mm

Depth

7,00 m

Speed

13,5 knots

Built

2011

Launch date

01/2010

Date of completion

18/07/2011

Builder

Anqing Zhouyang Shipbuilding Co.,Ltd.

Anqing

China

Yard number

ZY3500-06-03

Hull material

Steel

Watertight compartments

4

Movable bulkheads

4x Half high movable bulkheads or 2 full bulkheads

Continuous decks

1

Machinery aft

Main engine

1x ABC 12DZC - 4 stroke single acting 12 cylinder 256 x 610 mm combustion engine 2.208 kW / 3.000 hp at 800 rpm

Builder: Anglo Belgian Corporation NV., Gent - Belgium

Propellers

1x Screw propeller controllable pitch - aft at 190 rpm

Boilers

1x CHO Apparate-und Kessel 12,20 m² - 10,0 bar
1x CHR Apparate-und Kessel 46,00 m² - 10,0 bar

Shaft generator

1x 450 kVA - 360 kW

Generators

1x Diesel generatorset 288 kVA - 230 kW - 367 hp

1x Diesel generatorset 288 kVA - 230 kW - 332 hp

Number of holds

1

58,10 x 10,60 x 8,29 m

Total capacity of holds

Grain & Bale: 182.800 ft³ with out bulkheads/173.600 ft³ with bulkheads

5.178 m³

Timber capacity

5.000 m³

Number of hatches

1

58,10 x 10,60 m

Hatch type

Steel pontoons, stacking by gantry crane

Max permitted loads

Tanktop:12,0 tm²
Tweendeck: 2,5 t/m²
Hatch: 1,6 t/m²

Tank capacities

HFO: 240.000 litres

MGO: 48.000 litres

Ballast: 1.590 t

Manager

W & R Shipping B.V.
Daltonstraat 33
3335 LR Zwijndrecht
The Netherlands

Registered owner

Anne-Dorte Shipping BV
Zwijndrecht
The Netherlands

Latest data adjustment

27 September 2019
