Westerschelde 30 March 2017 |
|
Name |

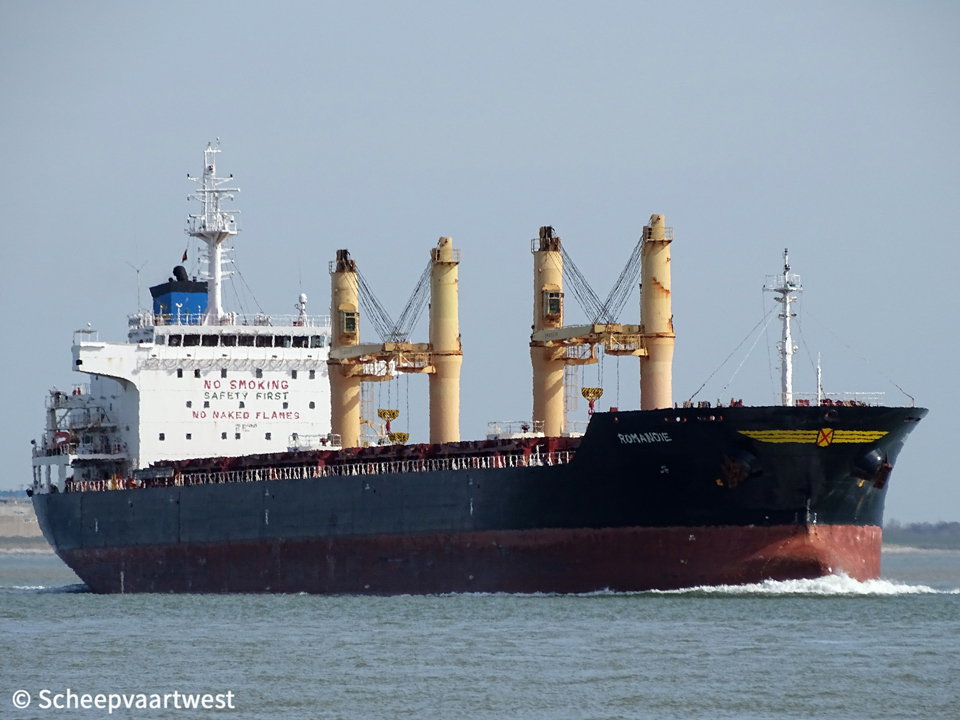

ROMANDIE |
|
Type |
Bulk carrier |
|
IMO-number |
9542829 |
|
Call sign |
HBDV |
|
Flag |
Switzerland |
|
Port of registry |
Basel |
|
GT |
22.697 t Suez: 23.229,95 t t |
|
DWT |
Summer: 34.348 t Winter: 33.361 t |
|
NT |
11.603 t Suez: 19.876,44 t |
|
Lightship |
8.530 t |
|
Length |
181,10 m overall 172,00 m between perpendiculars |
|
Breadth |
30,00 m extreme |
|
Draught |
Summer: 9,82 m Winter: 9,61 |
|
Keel to highest point |
45,50 m |
|
Depth |
14,60 m moulded |
|
Speed |
14,0 knots laden 13,0 knots ballast |
|
Built |
2010 |
|
Date of completion |
08/2010 |
|
Builder |
Shinan Heavy Industries Co., Ltd. |
|
Yard number |
197 |
|
Hull material |
Steel |
|
Main engine |
1x Doosan/MAN B&W 6S50MC - 2 stroke 6 cylinder combustion engine 8.679 kW / 11.940 bhp at 127,0 rpm |
|
Propellers |
1x Fixed propeller |
|
Electric installations |
220 V / 440 V / 60 Hz |
|
Generators |
3x Main diesel generatorsets each 600 kW |
|
Number of holds |
5 Hold 1: 26,40 x 22,00 to 5,00 m Hold 2,3,4: 24,00 x 23,20 m Hold 5: 26,30 x 23,20 to 10,0 m |
|
Hold capacity |
Grain / Bale Hold 1: 8.245 m³- 291.137 ft³ / 7.764 m³ - 274.412 ft³ Hold 2: 9.819 m³- 347.143 ft³ / 9.265 m³ - 327.462 ft³ Hold 3: 9.835 m³- 347.701 ft³ / 9.249 m³ - 326.897 ft³ Hold 4: 9.835 m³- 347.701 ft³ / 9.267 m³ - 327.533 ft³ Hold 5: 9.355 m³- 330.647 ft³ / 8.889 m³ - 314.173 ft³ Total: Grain: 47.089 m³ - Bale: 44.434 m³ Grain: 1.664.329 ft³ - Bale: 1.570.477 ft³ |
|
Number of hatches |
5 Hatch 1: 16,80 x 15,00 m Hatch 2,3,4,5: 19,20 x 19,20 m |
|
Hatches type |
Seohae end folding type with hydraulic cylinders |
|
Max permitted loads |
Tanktop: 21,0 t/m² |
|
Cargo gear |
4x Dongnam deck cranes - SWL 30,0 t each |
|
|
22 |
|
Manager |
Suisse-Atlantique Societe De Navigation Maritime SA |
|
Operator |
Suisse-Atlantique Societe De Navigation Maritime SA |
|
Registered owner |
Oceana Shipping AG |
|
Latest data adjustment |
16 August 2019 |
