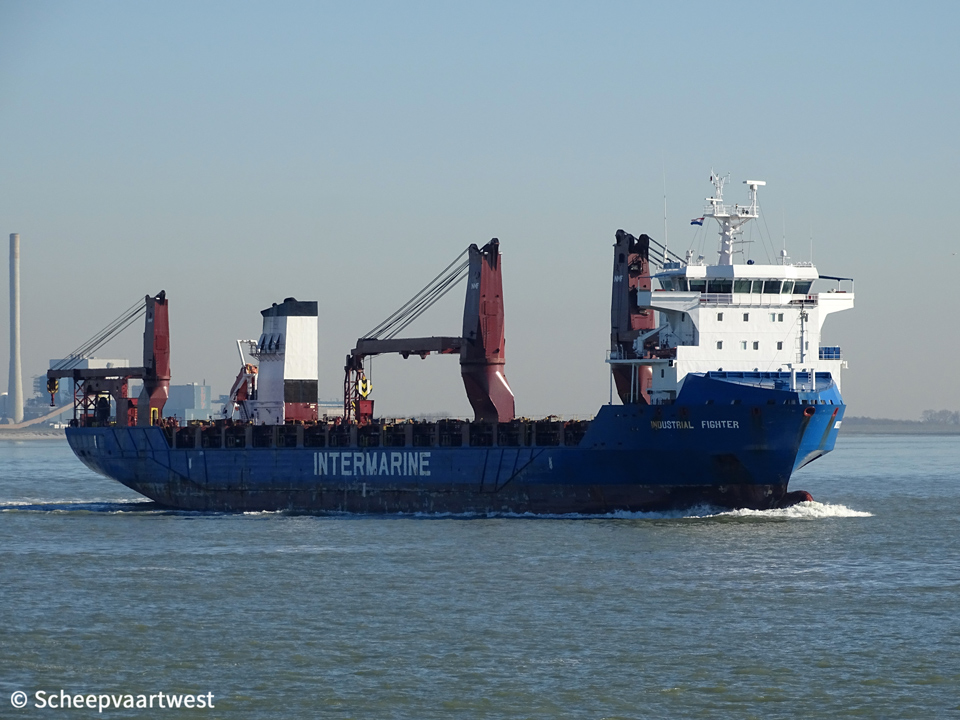

Industrial Fighter 01

Westerschelde 15 February 2019



Name

INDUSTRIAL FIGHTER

Previous names

Launch as: 2010 Eris J

2010 - 2013 HHL Everest

2013 - 2014 Eris J

2014 - 2015 Daniella

2014 - 2016 Industrial Fighter

2016 - 2016 Eris J

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

Heavy lift cargo

IMO-number

9506734

Call sign

V2FF8

Flag

Antigua & Barbuda

Port of registry

St. John’s

GT

12.810 t

DWT

Summer: 14.288 t

NT

5.938 t

Number of 20ft containers

In hold; 598

On deck: 387

Total: 985

Reefer capacity

30

Length

153,43 m overall

145,50 m between perpendiculars

Breadth

23,45 m extreme

23,21 m moulded

Draught

Max: 9,10 m

Forecastle

14,45 m

Bridge

104,00 m

Depth

12,80 m

Speed

Max: 17,5 knots

Built

2010

Keel laid

02/12/2008

Launch date

10/05/2010

Date of completion

23/11/2010

Builder

Sainty Shipbuilding (Yangzhou) Corp., Ltd.
18, Binjiang East Road Economic Development Zone, Yizheng
Yangzhou City
People's Republic of China

Yard number

07STIG056

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Single hull

Watertight bulkheads

5

Continuous decks

1

Main engine

1x Wärtsilä 6RT-flex50-B - 2 stroke 6 cylinder 500 x 2.050 mm combustion engine 9.960 kW at 124,0 rpm

Year of manufacture: 2008

Manufacrurer: Hitachi Zosen Corporation, Ariake Machinery Works

1, Ohaza Ariake, Nagasu-machi

Tamana-Gun

Japan

Propellers

1x Solid propeller (keyless) - aft at 124,0 rpm

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 34,1 m²

1x Thermal oil heater, exhaust heated - 10,0 bar

Heating surface: 157,7 m²

Manufacturer: ISW GmbH Industrie Service & Wärmeträgeranlagenbau

Heinrich-Schröder-Str. 6

25436 Uetersen

Federal Republic of Germany

Electric installations

3x Plants each 440 V - 950 kVA

1x Plant 440 V - 406,25 kVA

1x Plant 12 V - 200 Ah

1x Plant 12 V - 200 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 200 Ah

Generators

3x Wärtsilä 6L20 main diesel generatorsets each 950 kVA

Emergency generator

1x MAN D2876 LE 201 diesel generatorset 406,25 kVA

Batteries

1x Battery for automation 200 Ah
1x Battery for UPS radio 200 Ah
1x Battery for UPS navigation 200 Ah
1x Battery for other purpose 200 Ah

Compressed air receivers

2x Receivers each 1.900 litres - 33,0 bar
1x Receiver 1.000 litres - 9,0 bar

Bow thruster

1x Transverse thruster: 900 kW, forward

Number of holds

2

hold 1: 12,75 x 13,20 x 7,95 m
Hold 2: upper compartment: 83,75 x 19,00 x 6,10 m
Hold 2: lower compartment: 77,25 x 19,00 x 5,45 m

Cargo hold capacity

Bale: 19.800 m³

Max permitted loads

Tanktop: 20,0 t/m²
Tween deck: 5,0 t/m²
Weather deck: 5,0 t/m²

Tank capacities

Ballast: 6.546,8 m³

HFO: 1.360 m³

MDO: 290 m³

Fresh water: 90 m³

Anchor equipment

3x Anchors weight each 5.610 kg

Length: 577,50 m

Diameter: 58 mm

Cargo gear

2x Cranes each - SWL 400,0 / 325,0 / 200,0 & Aux. Hoist 45,0 t
1x Crane - SWL 80,0 / 65,0 / 50,0 t

Crew size

22

Manager

Jungerhans Maritime Services GmbH & Co KG
Boschstrasse 31
49733 Haren (Ems)
Germany

Operator

Intermarine

Renamed

2019 BBC Topaz

Antigua and Barbuda, St. John’s - Call sign: V2FF8

Manager: Jungerhans Heavy-Lift-Fleet Services GmbH &

Owner: Eris J Schiffahrtsgesellschaft mbH & Co. KG

Operator: Jungerhans Maritime Services & Co. KG

Latest data adjustment

09 August 2019
