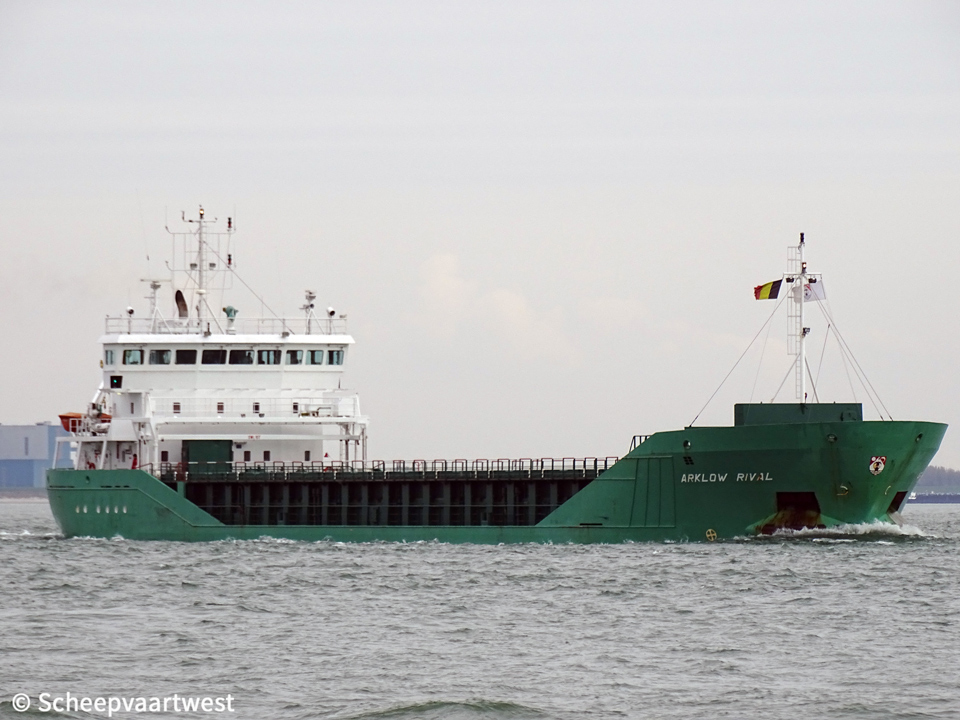

Arklow Rival 01

Westerschelde 24 October 2015



Name

ARKLOW RIVAL

Type

General cargo ship

IMO-number

9344514

Call sign

EIXP

Flag

Ireland

Port of registry

Arklow

GT

2.999 t

DWT

4.933 t

NT

1.639 t

Number of 20ft containers

In hold: 102

On deck: 48

Total: 150

Length

89,99 m overall

84,98 m between perpendiculars

Breadth

14,00 m moulded

14,18 m extreme

Draught

Max: 6,10 m

Air draft

Min: 20,60 m

Freeboard

860 mm

Depth

7,15 m moulded

Speed

11,5 knots

Built

2006

Date of completion

30/08/2006

Builder

Barkmeijer Stroobos B.V.
The Netherlands

Yard number

310

Hull material

Steel

Movable bulkheads

2x Portable bulkheads may be placed in 9 positions for cargo separation

Main engine

1x MaK 6M25 - 4 stroke 6 cylinder combustion engine 1.499 kW hp at 750 rpm

Propellers

1x Screw propeller controllable pitch

Shaft generator

1x 400 kVA

Generators

2x Sisu Diesel 645BSBIG diesel engines each 180 kW at 1.500 rpm coupled with 2 Stamford generators each 210 kVA

Bow thruster

1x 250 kW

Hold capacity

Grain/bale:

Incl. Bulkheads: 207.391 ft³ / 5.873 m³

Bulkheads stowed midships: 206.541 ft³ / 5.849 m³

Hatch type

Roden Staal pontoon system

Max permitted loads

Tanktop: 15,0 t/m²

Hatch cover: 1,5 t/m²

Tank capacities

Ballast: 1.839 m³

HFO: 150,52 m³

Gas oil: 36,42 m³

Fresh water: 88,0 m³

Lub oil: 8,0 m³

Crew size

10

Manager

Arklow Shipping Ltd.
North Quay

Arklow

Co. Wicklow

Ireland

Registered owner

Invermore Shipping Ltd.

Latest data adjustment

17 April 2019
