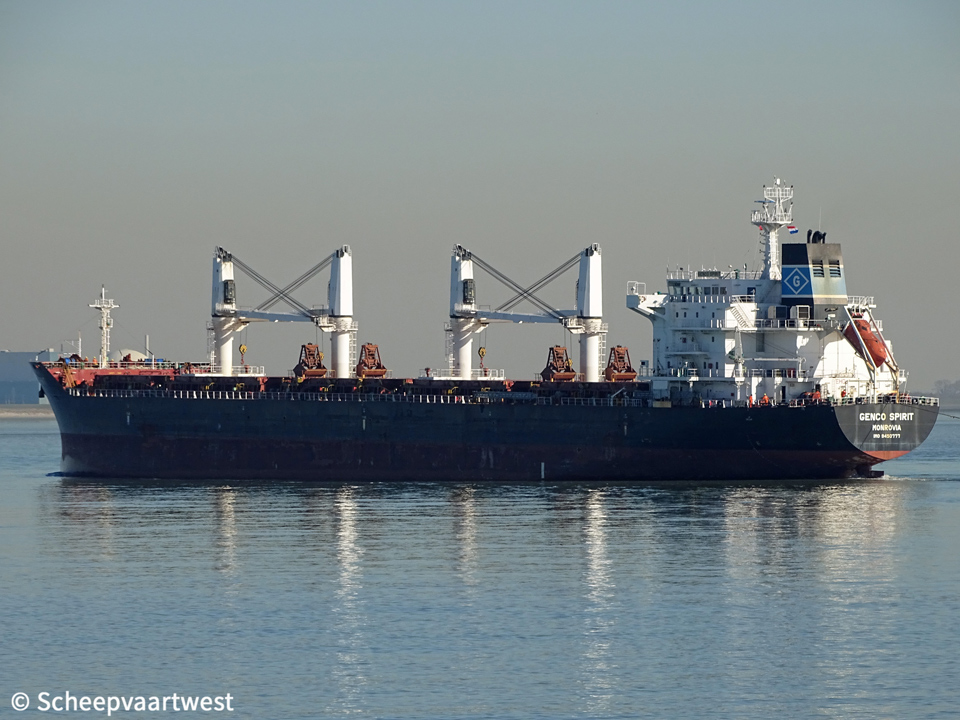

Westerschelde 25 February 2019 |
|
Name |
GENCO SPIRIT |
|
Type |
Bulk carrier - Handysize - Strengthened for the carriage of heavy cargoes |
|
IMO-number |
9450777 |
|
Call sign |
A8WM5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
23.456 t registered Suez: 24.587,04 t |
|
DWT |
Summer: 34.393,3 t |
|
NT |
11.522 t registered Panama: 19.536 t Suez: 21.209,47 t |
|
Length |
180,00 m overall 172,00 m between perpendiculars |
|
Breadth |
30,00 m moulded |
|
Draught |
Max: 9,90 m |
|
Freeboard |
4.825 mm |
|
Depth |
14,70 m moulded |
|
Speed |
14,0 knots |
|
Built |
2011 |
|
Keel laid |
16/08/2011 |
|
Launch date |
14/10/2011 |
|
Delivery date |
10/11/2011 |
|
Builder |
SPP Shipbuilding Co., Ltd. |
|
Yard number |
H4019 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Bulkheads |
Water tight: 2 oil thigh: 4 |
|
Main engine |
1x Doosan/MAN-B&W 5S50MC-C - 2 stroke 5 cylinder 500 x 2.000 mm combustion engine 7.900 kW at 127,0 rpm Manufacturer: Doosan Engine Co., Ltd. |
|
Propellers |
1x Fixed propeller Manufacturer: Sil La Metal Co. |
|
Boilers |
1x Composite boiler - 9,0 bar Manufacturer: SPP Machine Tech |
|
Generators |
3x Main diesel generatorsets each 600 kW Manufacturer: Taiyo Electric Co., Ltd. |
|
Number of holds |
5 |
|
Cargo hold capacity |
48.765,8 m³ |
|
Number of hatches |
5 |
|
Number of tanks |
Ballast: 22 Fuel oil: 10 Lubricating oil: 7 Fresh water: 4 Diesel oil: 4 Slop: 3 Waste water: 2 Chain: 2 Sludge: 2 |
|
Tank capacities 100% |
Diesel oil: 185,5 m³ Freshwater: 338,7 m³ Fuel oil: 1.568,1 m³ Lube oil: 136,3 m³ Tank ballast: 14.530,1 m³ |
|
Lifting equipment |
1x Electric provision crane - SWL 3,0 t 1x Engine room crane - SWL 2,5 t Manufacturer: SPP Machine Tech |
|
Cargo gear |
4x MacGregor deck cranes - SWL 35,0 t each Manufacturer: SPP Machine Tech |
|
Crew |
20 |
|
Manager |
Genco Ship Management LLC |
|
Registered owner |
Genco Spirit Ltd. |
|
Latest data adjustment |
27 March 2019 |
