Westerschelde 04 July 2018 |
|
Name |

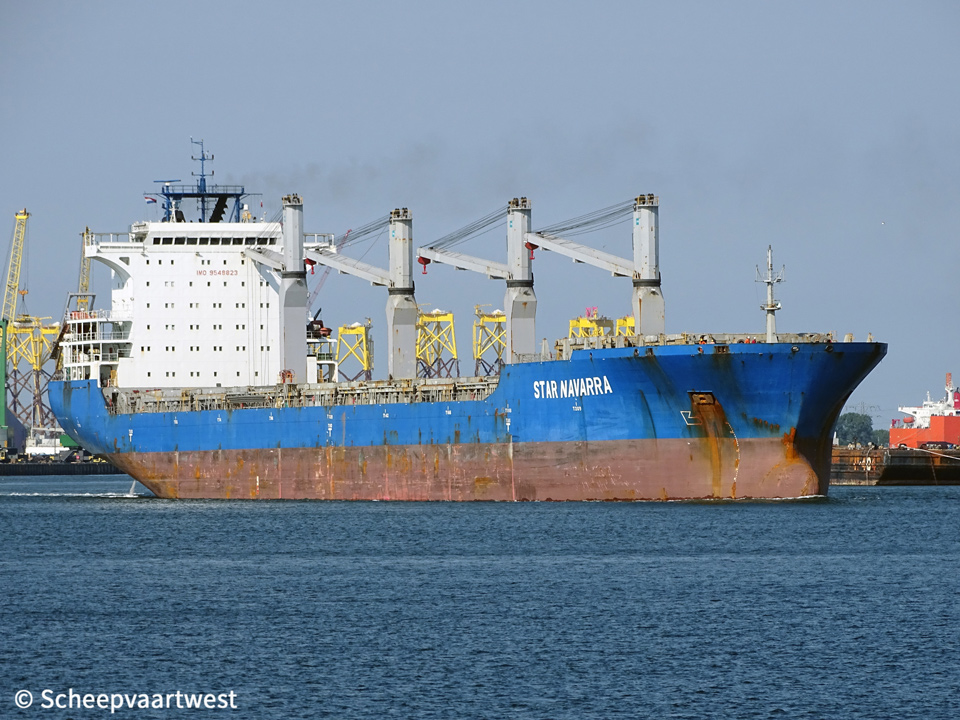

STAR NAVARRA |
|
Previous names |
2010 - 2016 Navarra |
|
Type |
General cargo ship - Carriage of dangerous goods |
|
IMO-number |
9548823 |
|
Call sign |
V7ZD8 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
2010 - 2017 Republic of Singapore, Singapore City - Call sign: 9V8593 |
|
GT |
33.601 t registered |
|
DWT |
Summer: 51.6241 t |
|
NT |
16.731 t registered |
|
Length |
199,90 m overall 190,50 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
Max: 12,40 m |
|
Freeboard |
4.626 mm |
|
Depth |
17,00 m moulded |
|
Built |
2010 |
|
Keel laid |
19/06/2009 |
|
Deliver date |
03/09/2010 |
|
Builder |
CCSC Heavyindustry Shipbuilsing Co., Ltd. China |
|
Yard number |
ZC1001 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Watertight bulkheads |
13 |
|
Main engine |
1x 6UEC50L SE - 6 cylinder combustion engine 9.960 kW at 124,0 rpm Manufacturer: Mitsubishi Heavy Industry |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Fired composite boiler - 7,0 bar Manufacturer: Zhangjiagang Greens Shazhou Boiler Co., Ltd. |
|
Number of holds |
9 |
|
Cargo hold capacities |
59.889,8 m³ |
|
Number of tanks |
Ballast: 34 Fuel oil: 16 Lubricating oil: 11 Fresh water: 3 Diesel oil: 3 Sludge: 2 Sea water: 2 Sewage: 1 |
|
Tank capacities 100 % |
Diesel oil: 460,7 m³ Freshwater: 230;2 m³ Fuel oil: 1.966,7 m³ Lube oil: 190,3 m³ Tank ballast: 16.425,4 m³ |
|
Lifting equipment |
1x Engine room overhead crane - SWL 3,0 t 1x Provision crane - SWL 3,0 t |
|
Cargo gear |
4x Deck cranes - SWL 40,0 t each |
|
Manager |
G2 Ocean AS |
|
Operator |
F.H. Bertling Navarra Shipping Pte. Ltd. |
|
Registered owner |
Navarra LLC |
|
Latest data adjustment |
18 March 2019 |
