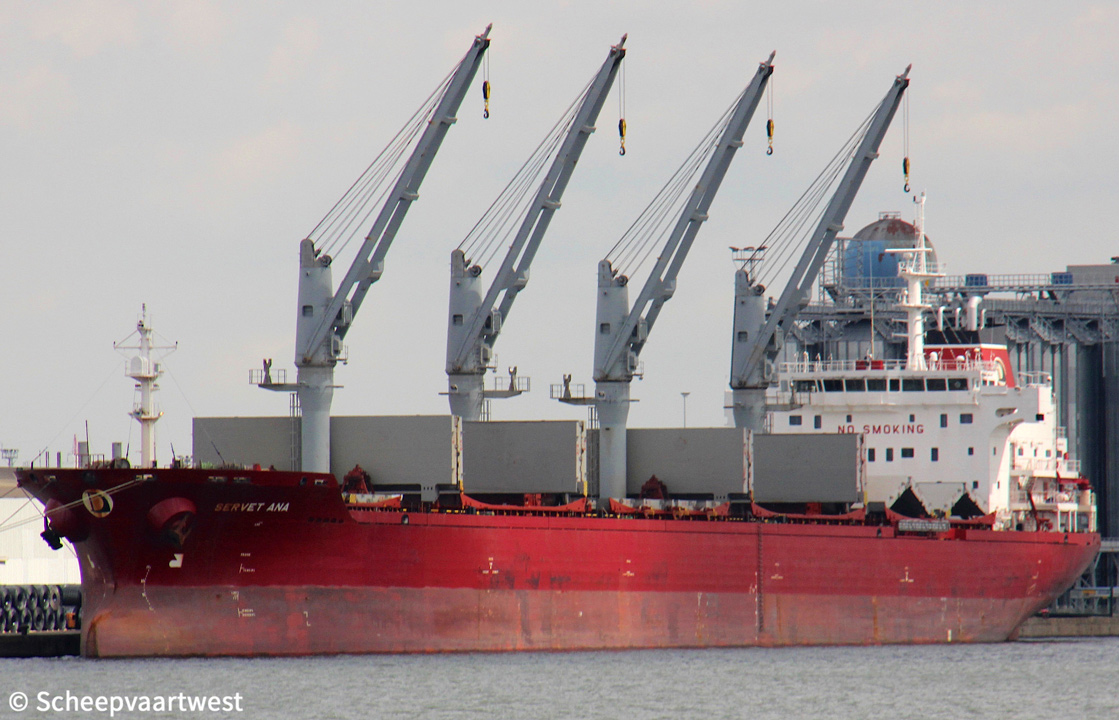

Servet Ana 01

Antwerpen 26 April 2019

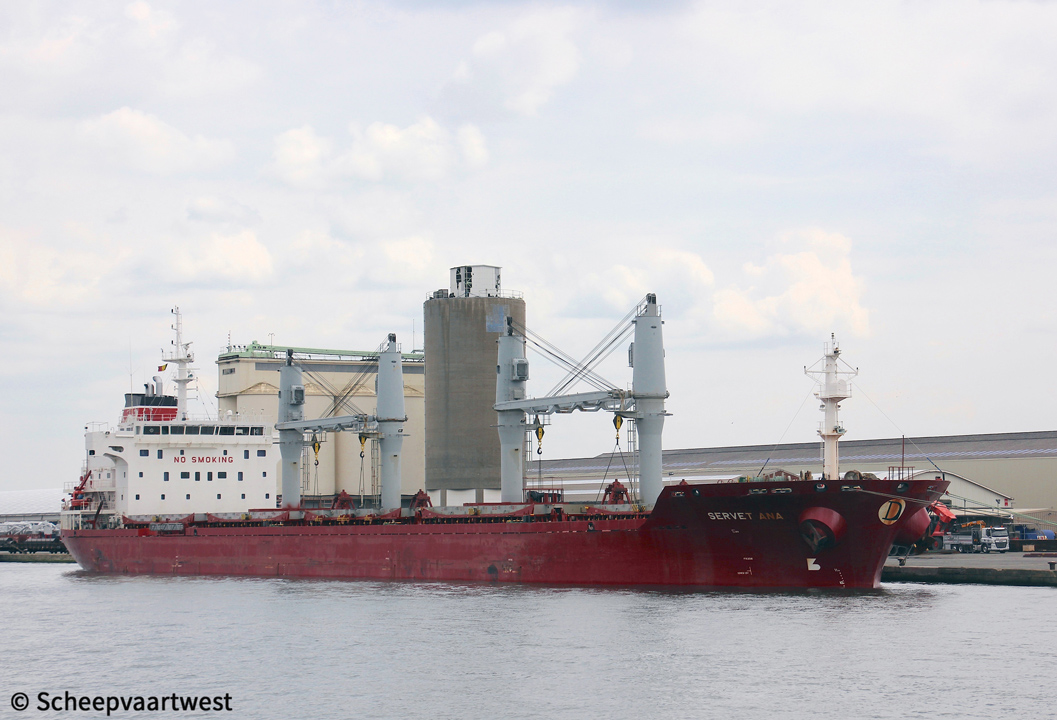

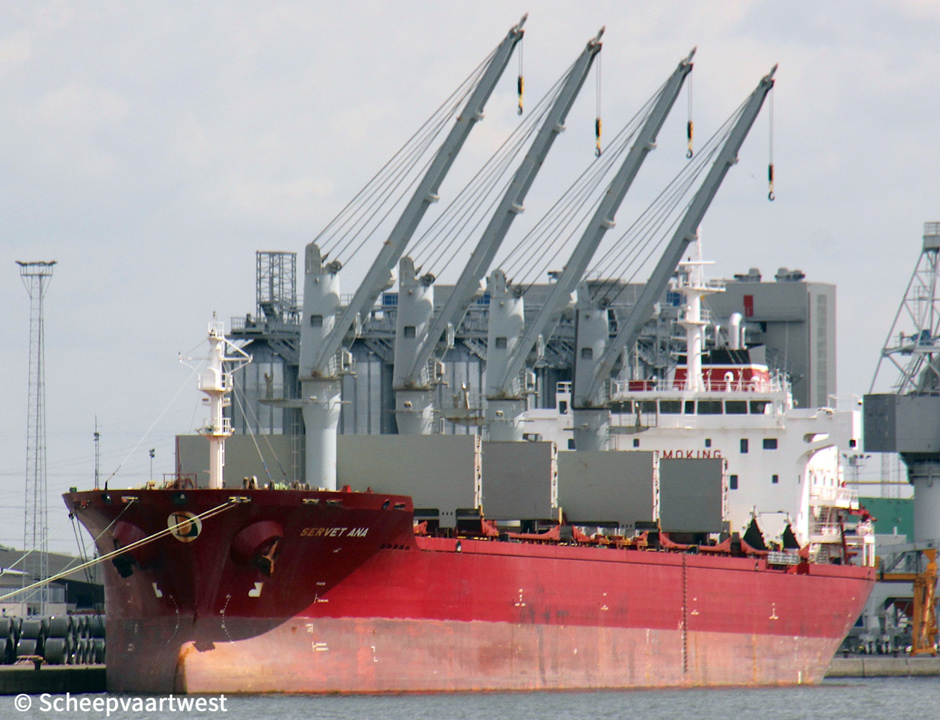

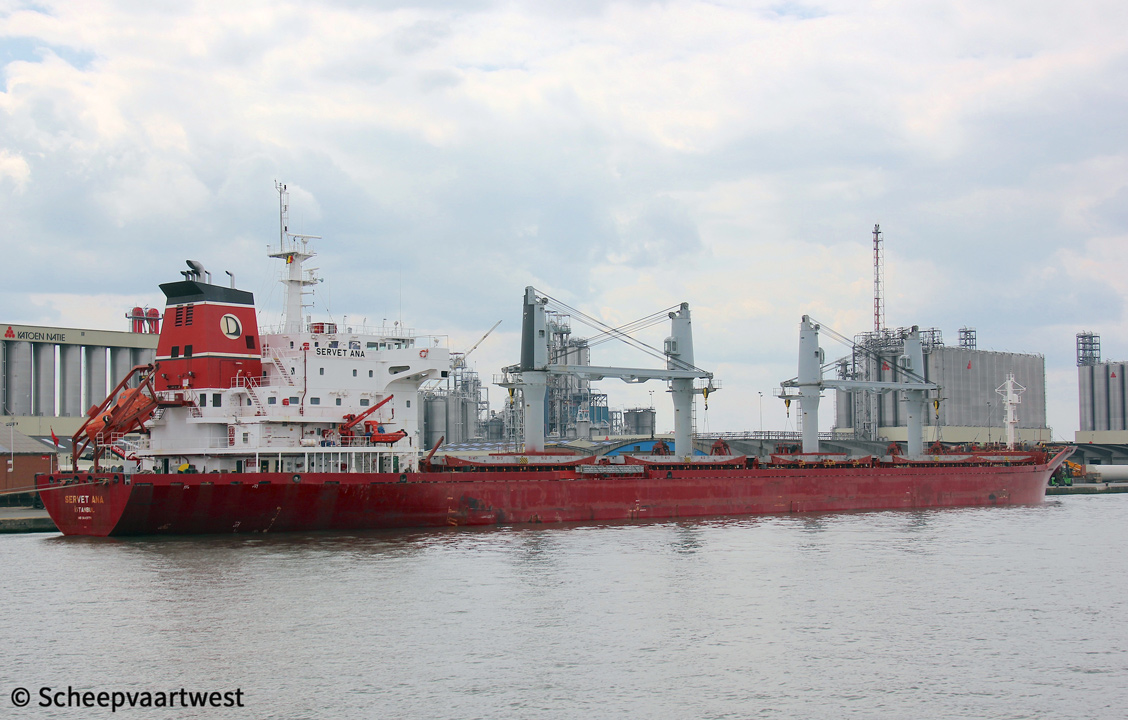

Servet Ana 02   Servet Ana 03   Servet Ana 04
Antwerpen 26/04/19   Antwerpen 07/05/19   Antwerpen 07/05/19



Name

SERVET ANA

Type

Bulk carrier

IMO-number

9443774

Call sign

TCMF7

Flag

Turkey

Port of registry

Istanbul

GT

19.999 t registered

Suez: 20.398,45 t

DWT

Summer: 30.124 t

NT

10.351 t registered

Suez: 19.892,87 t

Length

178,70 m overall

170,00 m between perpendiculars

Breadth

28,00 m moulded

Draught

Max: 9,79 m

Freeboard

4.236 mm

Depth

14,00 m moulded

Speed

14,1 knots

Built

2011

Keel laid

08/10/2010

Delivery date

22/04/2011

Builder

Tsuji Heavy Industries (Jiangsu) Co., Ltd.
Zhangjiagang
China

Yard number

S1007

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Water tight: 3

Oil tight: 4

Main engine

1x Makita-Mitsui/MAN-B&W 6S42MC - 2 stroke 6 cylinder 420 x 1.764 mm combustion engine 6.232 kW at 131,0 rpm

Manufacturer: Makita Corporation

Propellers

1x Fixed propeller

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

1x Auxiliary composite boiler - 9,0 bar

Manufacturer: Aalborg Industries Ltd.

Generators

3x main diesel generatorsets each 687,5 kW

Manufacturer: Taiyo Electric Co.,Ltd. Gifu Factory

Number of holds

5

Cargo hold capacity

Bale: 38.601,8 m³

Grain: 40.633,4 m³

Number of hatches

5

Number of tanks

Ballast: 22

Fuel oil: 11

Lubricating oil: 8

Diesel oil: 6

Waste water: 4

Fresh water: 4

Chain: 2

Sludge: 2

Tank capacities 100%

Diesel oil: 123 m³

Fresh water: 250,4 m³

Fuel oil: 1.324,3 m³

Lube oil: 83 m³

Tank ballast: 10.410,1 m³

Lifting equipment

1x Engine room crane - SWL 3,0 t

1x General use crane Stbd. - SWL 3,0 t

Manufacturer: Jiangyin Safety Sea Marine Equipment Co,. Ltd.

1x General use crane port - SWL 3,0 t

Manufacturer: Zhengjiang Marine Auxiliary Works

Cargo gear

4x Deck cranes - SWL 30,0 t each

Manufacturer: Tsuji Heavy Industries (Jiangsu) Co., Ltd.

Manager

Deval Nakliyat AS

Operator

Devmarin Denizcilik As
Fahrettin Kerim Gokay Cad. No. 14 denizciler Is Merkezi, B.Blok kat. 4, Altunizade, Uskudar
Istanbul, 34662

Turkey

Owner

Devmarin Denizcilik AS

Latest data adjustment

14 May 2019
