Westerschelde 25 July 2018 |
|
Name |

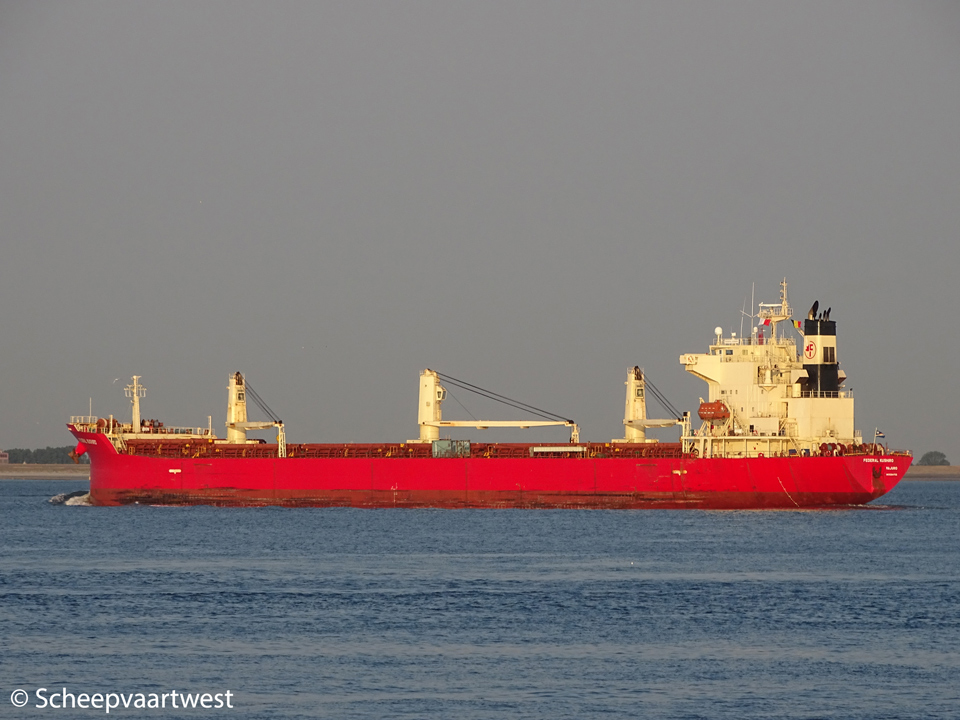

FEDERAL KUSHIRO |
|
Type |
Bulk carrier - Handysize Laker type |
|
IMO-number |
9284702 |
|
Call sign |
V7UY9 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
2004 - 2011 Republic of Panama |
|
GT |
19.223 t registered |
|
DWT |
Summer: 32.762 t Winter: 31.868 t |
|
NT |
10.391 t registered Panama: 16.056 t Suez: 17.983 t |
|
Length |
190,43 m overall 181,00 m between perpendiculars |
|
Breadth |
23,60 m extreme |
|
Draught |
Summer: 10,67 m Winter: 10,45 m |
|
Depth |
15,20 m |
|
Speed |
14,2 knots laden 14,5 knots ballast |
|
Built |
2004 |
|
Keel laid |
20/06/2002 |
|
Date of completion |
04/02/2004 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. |
|
Yard number |
5220 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi-Kobe Hatsudoki 6UEC52LS - 2 stroke 6 cylinder combustion engine 7.080 kW Manufacturer: Mitsubishi Heavy Industries, Ltd., Kobe Shipyard & Machinery Works - Japan |
|
Propellers |
1x Fixed mono-block propeller Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Auxiliary boiler, composite Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Daihatsu 5DK(M)-20(e) main diesel generatorsets Manufacturer: Daihatsu Diesel Mfg. Co., Ltd. Moriyama Division |
|
Emergency generator |
1x Mitsui diesel generatorset Manufacturer: Mitsui Zosen Mach & Service Inc. |
|
Bow thruster |
1x 877 hp |
|
Number of holds |
6 Hold 1: 28,00 x 6,52/18,00 m TWD/AFT Hold 2: 23,20 x 18,00/18,00 m Hold 3: 23,20 x 18,00/18,00 m Hold 4: 19,20 x 18,00/18,00 m Hold 5: 25,60 x 18,00/18,00 m Hold 6: 23,20 x 18,00 / 6,52 m |
|
Cargo hold capacity |
Grain / Bale Hold 1: 7.525 / 7.049 m³ Hold 2: 6.737 / 6.479 m³ Hold 3: 6.728 / 6.481 m³ Hold 4: 6.012 / 5.781 m³ hold 5: 7.397 / 7.138 m³ hold 6: 6.117 / 5.950 m³ Total: 40.516 / 38.878 m³ |
|
Number of hatches |
Hatch 1: 16,80 x 12,90 m Hatch 2: 18,40 x 12,90 m Hatch 3: 18,40 x 12,90 m Hatch 4: 16,00 x 12,90 m Hatch 5: 20,00 x 12,90 m Hatch 6: 16,80 x 19,20 m |
|
Hatch type: |
Folding hydraulic |
|
Max permitted loads |
Tank top: 22,0 t/m² |
|
Tank capacities |
Ballast: 12.162 m³ IFO: 1.107 m³ MDO: 460 m³ |
|
Anchor equipment |
Length: 577,50 m |
|
Cargo gear |
3x Electro hydraulic cranes - SWL 30,0 t each |
|
Crew |
25 |
|
Manager |
Anglo-Eastern Ship Management |
|
Operator |
FEDNAV |
|
Registered owner |
Baffin Investments Ltd. |
|
Latest data adjustment |
02 February 2019 |
